CERWIN VEGA AMPLIFIER CVPRO MONO 1100W RMS @ 4OHM / 2050W RMS @ 2OHM / 3000W RMS @ 1OHM

1-Channel CVPRO Series Class-D Monoblock Amplifier 3000 Watts

Key Features:
• 1-channel Class-D Monoblock car audio amplifier
• Up to 3000 watts of high-output power for subwoofer systems
• High-current circuitry for maximum bass performance
• Advanced thermal management for reliable operation
• Built for high-performance car audio and SPL setups
• Efficient Class-D design for powerful, clean bass

Specifications:

POWER RATING

FREQUENCY RESPONSE (HZ): 15HZ-250HZ
RMS POWER PER CHANNEL 4Ω 1100W X 1
RMS POWER PER CHANNEL 2Ω 2050W X 1
RMS POWER PER CHANNEL 1Ω 3000W X 1

POWER SUPPLY

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-17.0V
• Idle Current: 2.6A

DISTORTION

• THD 4 (1KHz @4Ω): 0.1%
• S/N Ratio (A weighted @1W): -90dBA
• S/N Ratio (A weighted @FP): -105dBA

INPUT SENSITIVITY

• Low Input Level: 0.2V-5.0V
• High Input Level: 0.2V-5.0V

INPUT IMPEDANCE

• Low Input Level: 20KΩ
• High Input Level:

OUTPUT STAGE

• Output Impedance: 0.0297Ω
• Damping Factor: >150
• Bandwidth (-3dB): 15Hz-20KHz

CROSSOVER (-12dB/Oct)

• Variable High-Pass: 50Hz-20KHz
• Variable Low-Pass: 15Hz-1KHz
• Variable Sub-Sonic: 15Hz-1KHz

FUSE RATINGS (RECOMMENDED 1/2 THE FULL CURRENT DRAW FOR FUSING)

• ATC: 150A

DIMENSIONS

• L x W x H: 7.95”x 8.8”x 2.6” (202mm x 225mm x 66.5mm)

FEATURES

• Caution High Current Draw Amplifier
• Recommended 0/1 Gauge OFC Power/Ground Wire
• LED Power/Protect Status Light
• LED Clipping Indicator Light
• Selectable Bass Frequency: 35Hz-70Hz
• Variable Bass Boost: 0dB-12 dB

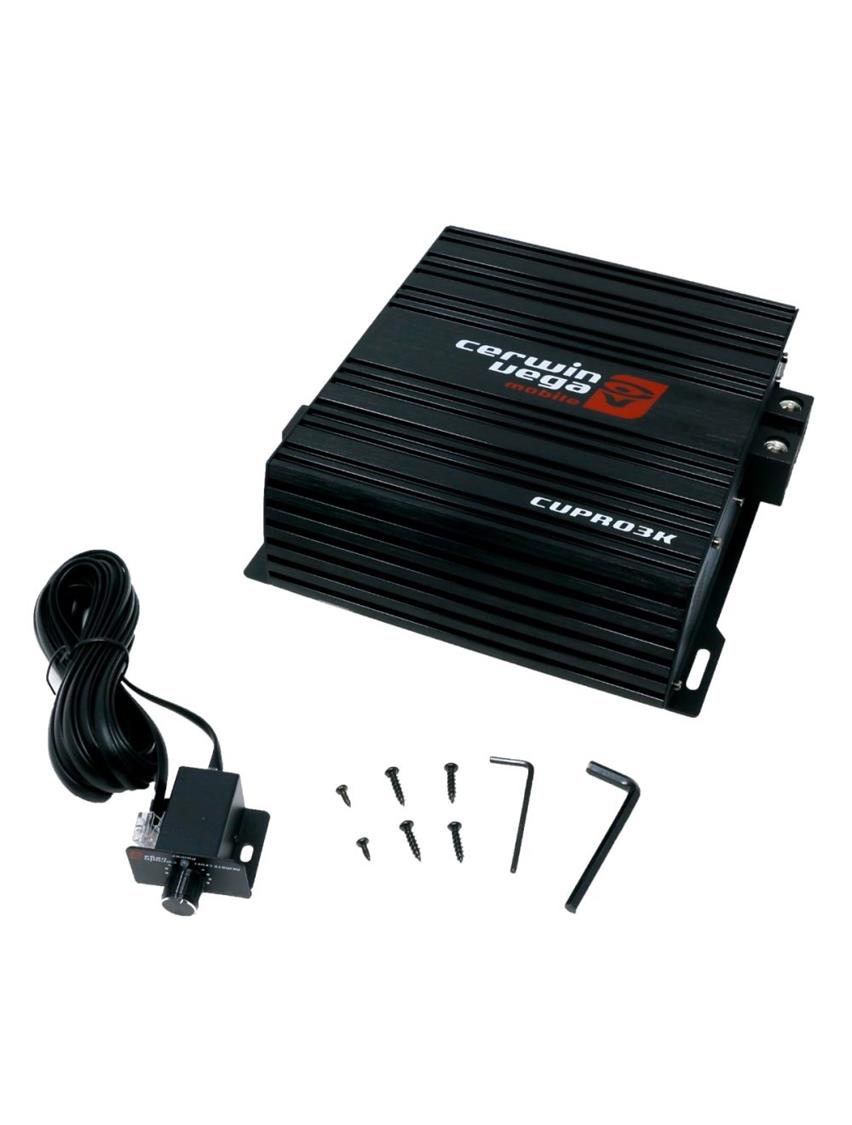

• Wired Remote Bass Level Control Included
• 1-year Manufacturer's Warranty
• MFR #: CVPRO3K

CVPRO3K User Manual:

https://cdn.shopify.com/s/files/1/0645/1711/1988/files/CVPRO_SERIES_AMPLIFIERS_MANUAL.pdf?v=1763357942
