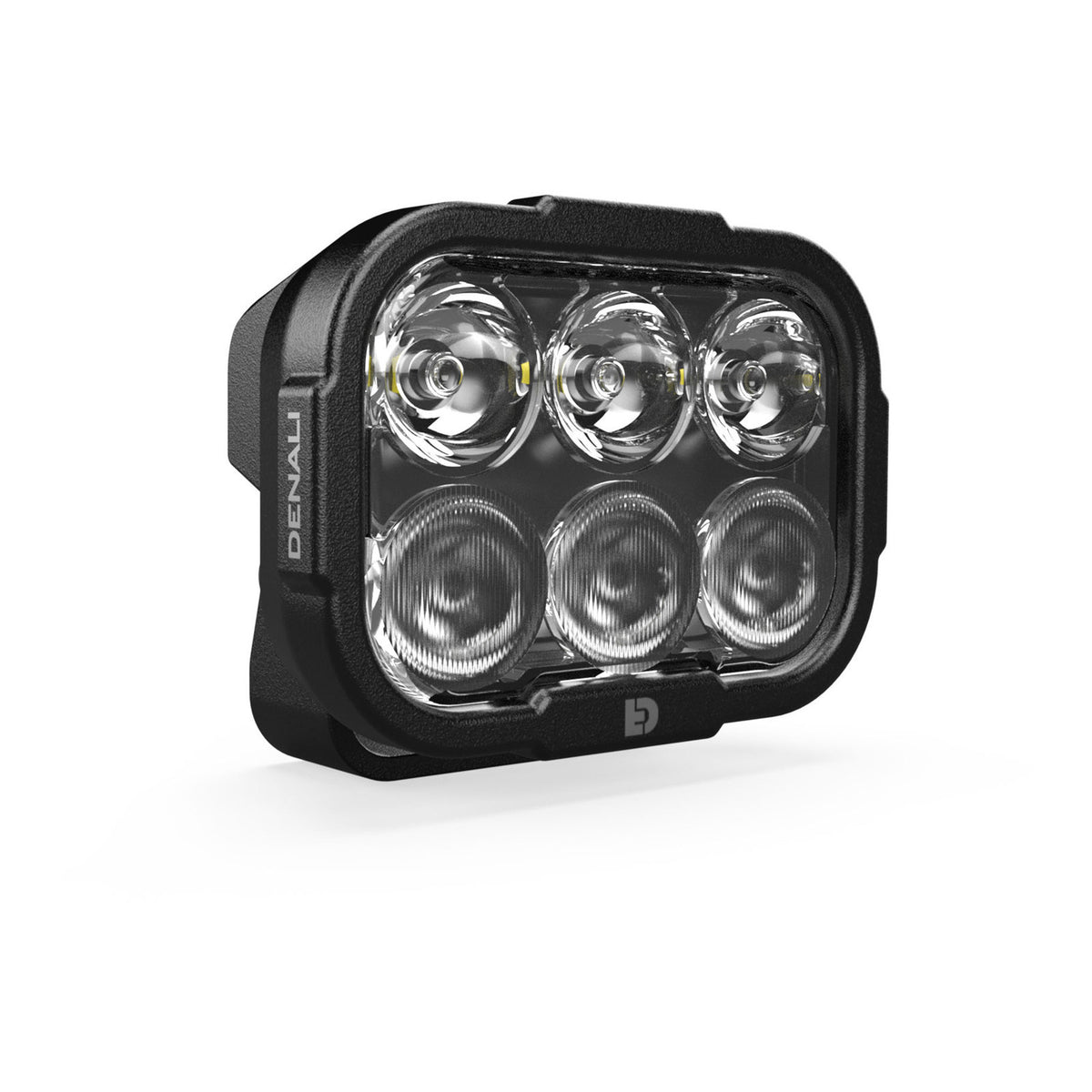

Denali DL6 Driving Light 6-LED Elliptical Hybrid Beam (Pair)

The DENALI DL Series Driving Lights are engineered to deliver exceptional brightness, durability, and beam performance at an accessible price point. Developed from over a decade of customer feedback, the DL Series combines premium lighting technology with simplified construction to provide outstanding value without compromising performance.

By utilising a single-piece TIR optic and robotically sealed construction, DENALI reduces component complexity, assembly time, and manufacturing costs while retaining premium LEDs, advanced circuitry, and refined optical performance. The result is a rugged, fully submersible light pod capable of delivering exceptional light output per dollar compared to competing products.

All DL Series lamps are available in white, amber, or selective yellow beam options and are fully plug-and-play compatible with all DENALI lighting harnesses and controllers.

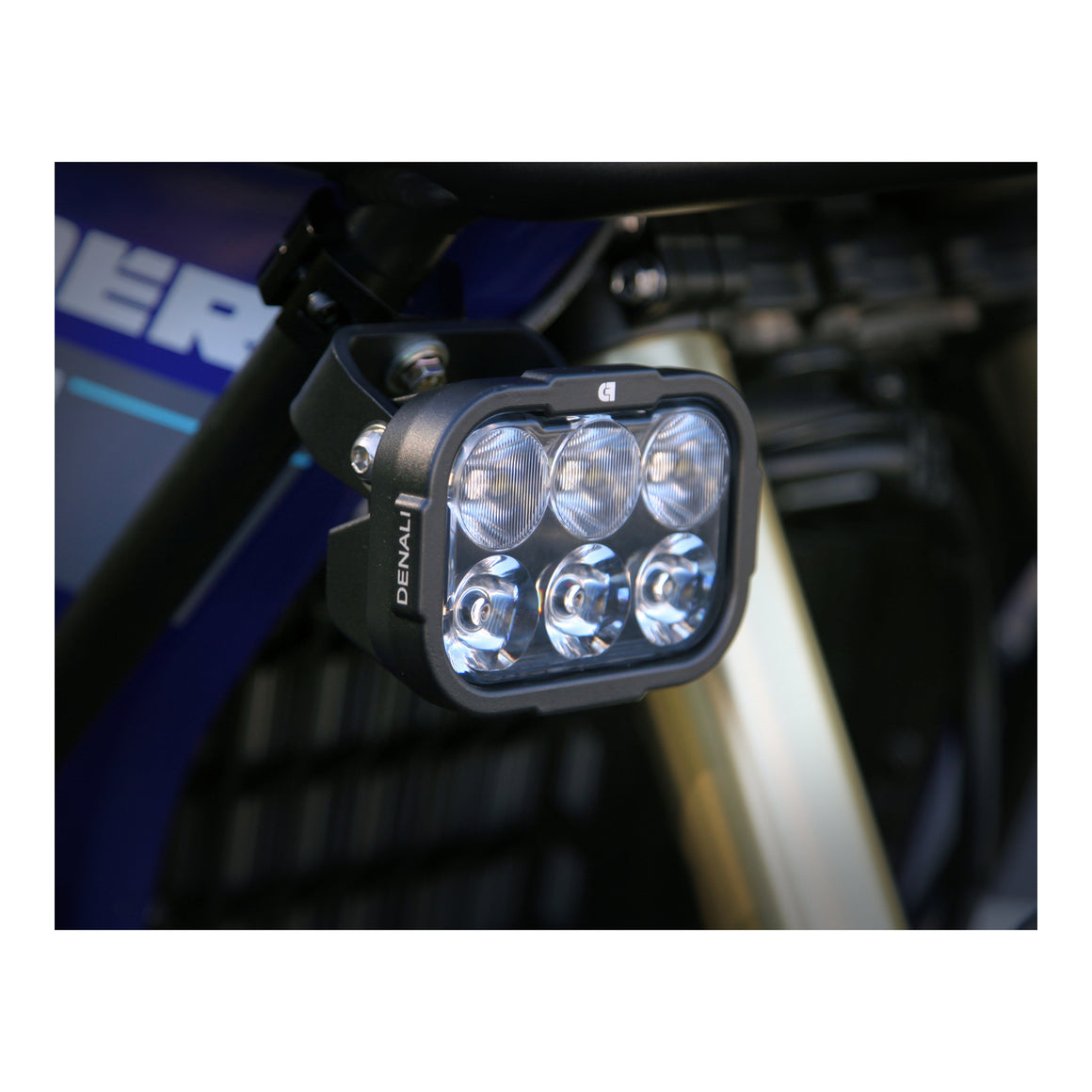

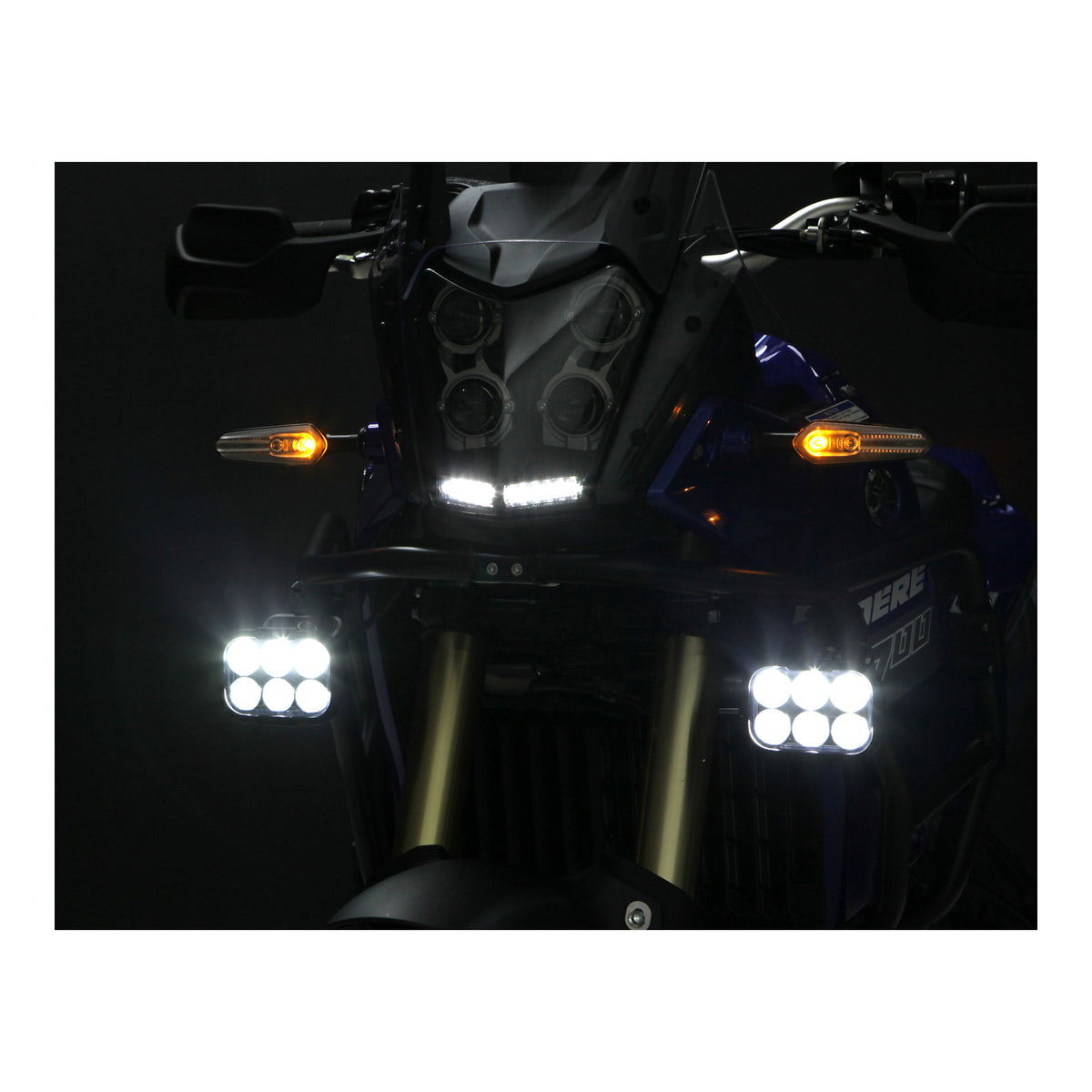

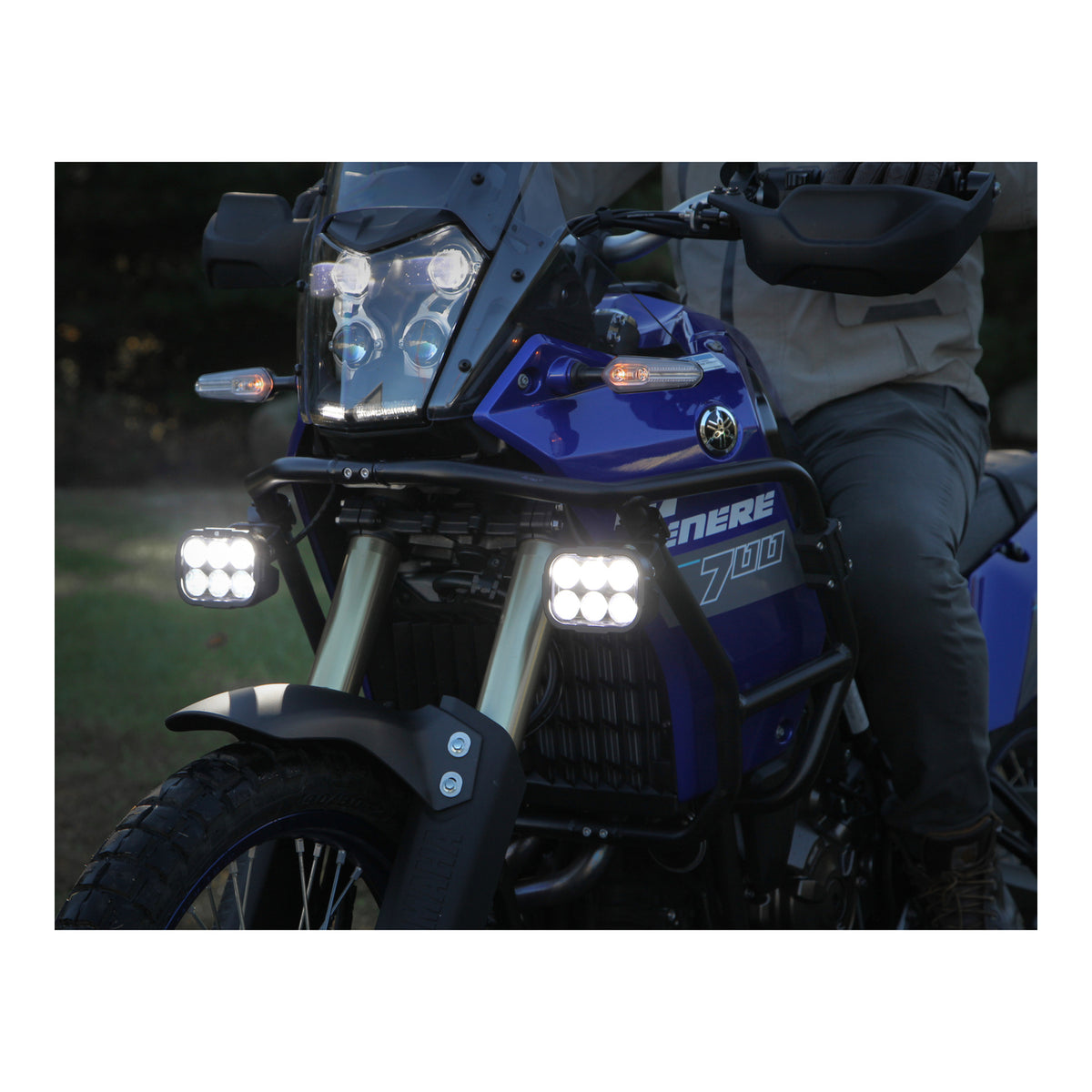

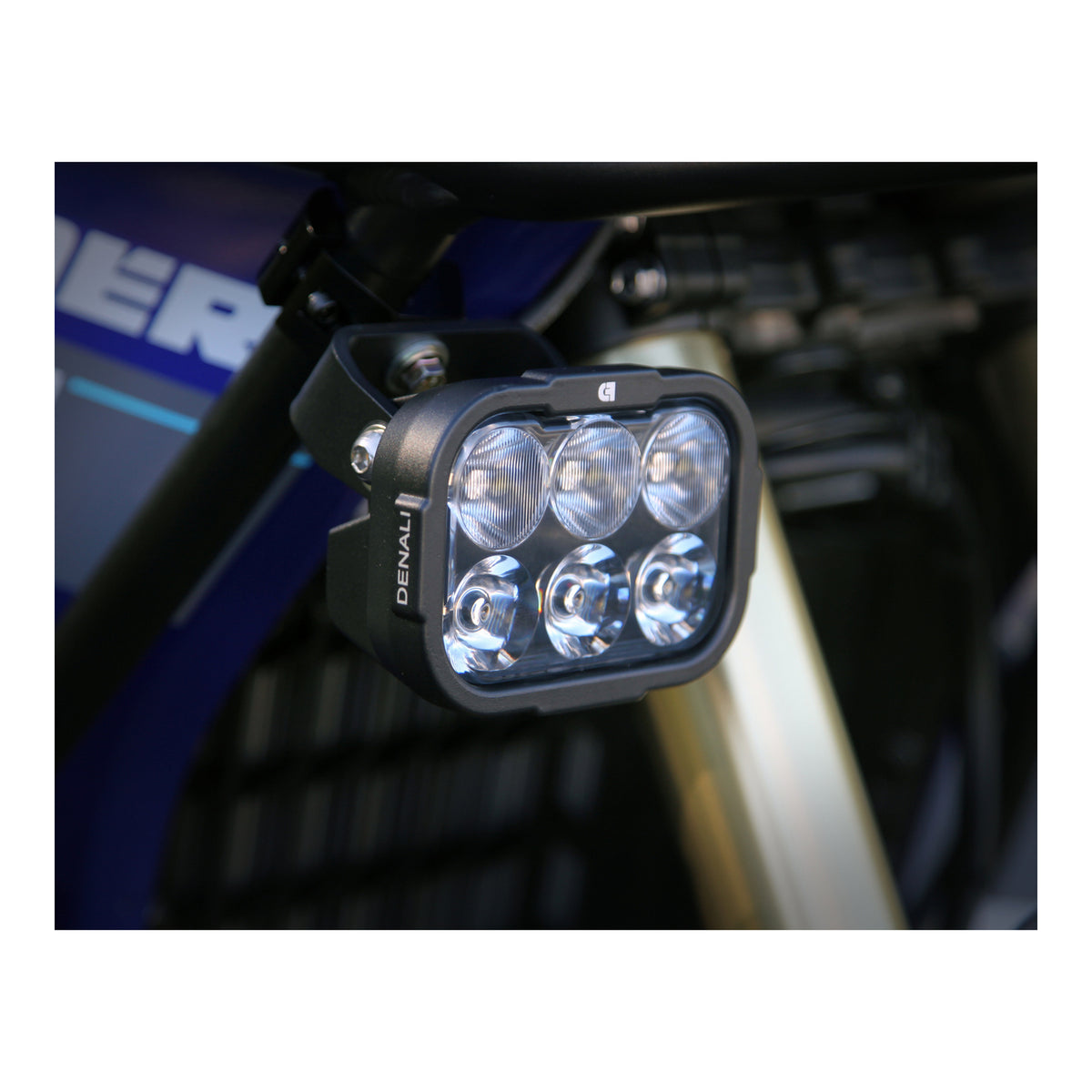

The DL6 features a unique rectangular housing, making it one of the lowest-profile 5,000+ lumen driving lights available. Its compact size and shape make it an ideal primary driving light solution for medium to large adventure and touring motorcycles.

Features:

• HiDrive LEDs – 10,200 Lumens Per Pair
  Premium CREE LEDs driven at 8 watts each deliver a powerful beam pattern from a compact 9-LED configuration.
• Oversized TIR Optics – Hybrid Driving Beam
  Proprietary TIR optics provide superior beam efficiency, delivering exceptional width and distance compared to traditional reflector optics.
• DataDim™ Plug-and-Play Dimming
  Dedicated 3-wire dimming circuitry ensures maximum reliability and seamless compatibility with DENALI harnesses, DialDim, and CANsmart controllers.
• DrySeal™ Sealed Beam Construction
  Robotically sealed lens construction and internal cable potting provide fully waterproof and submersible performance, even with connectors removed.
• Overbuilt Construction

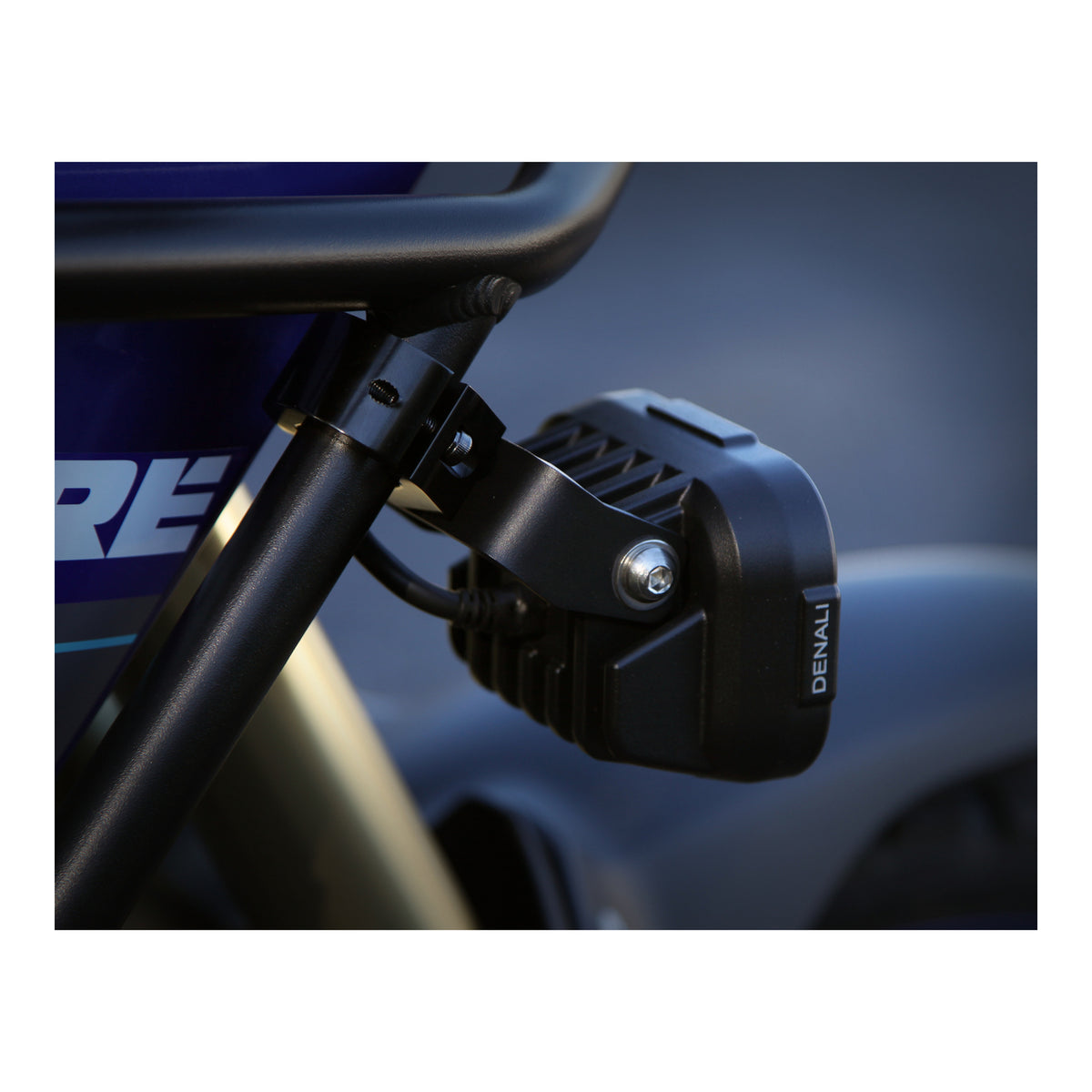

  Features 4 mm thick powder-coated steel brackets, a heavy-duty heatsink, and UV-coated polycarbonate lenses engineered to withstand extreme vibration and harsh conditions.
• ECE-Compliant Driving Beam
  The hybrid driving beam is ECE certified for legal high beam use within the European Union. Amber and yellow lens options are intended for off-road or adverse weather use only.

Specifications (Single | Pair):

• LEDs: Cree XPL HI (8W each)
• Power Draw: 48W | 96W
• Amp Draw: 4A | 8A
• Raw Lumens: 5,100 | 10,200
• Beam Distance: 1,000 ft (305 m) | 1,330 ft (406 m)
• Beam Width: 203 ft (62 m) | 270 ft (82 m)
• Connector: DataDim-compatible 3-wire DT connector
• Colour Temperature: 6000K
• Operating Voltage: 9–32 VDC
• Pod Size: 3" x 4.5" rectangular x 2" deep
• Pod Weight: 1.5 lb | 3 lb
• IP Rating: IP68 and IP69K waterproof, submersible, and high-pressure spray resistant
• Beam Certification: ECE R149 Driving Beam (Auxiliary High Beam)
• EMC Compliance: R10, CISPR 25, CE, and UKCA compliant

What’s Included:

• Single Light Pod includes:
  • 1 x light pod with mounting hardware
  • 1 x 3-wire pigtail
• Pair of Light Pods includes:
  • 2 x light pods with mounting hardware
  • 2 x 3-wire pigtails
