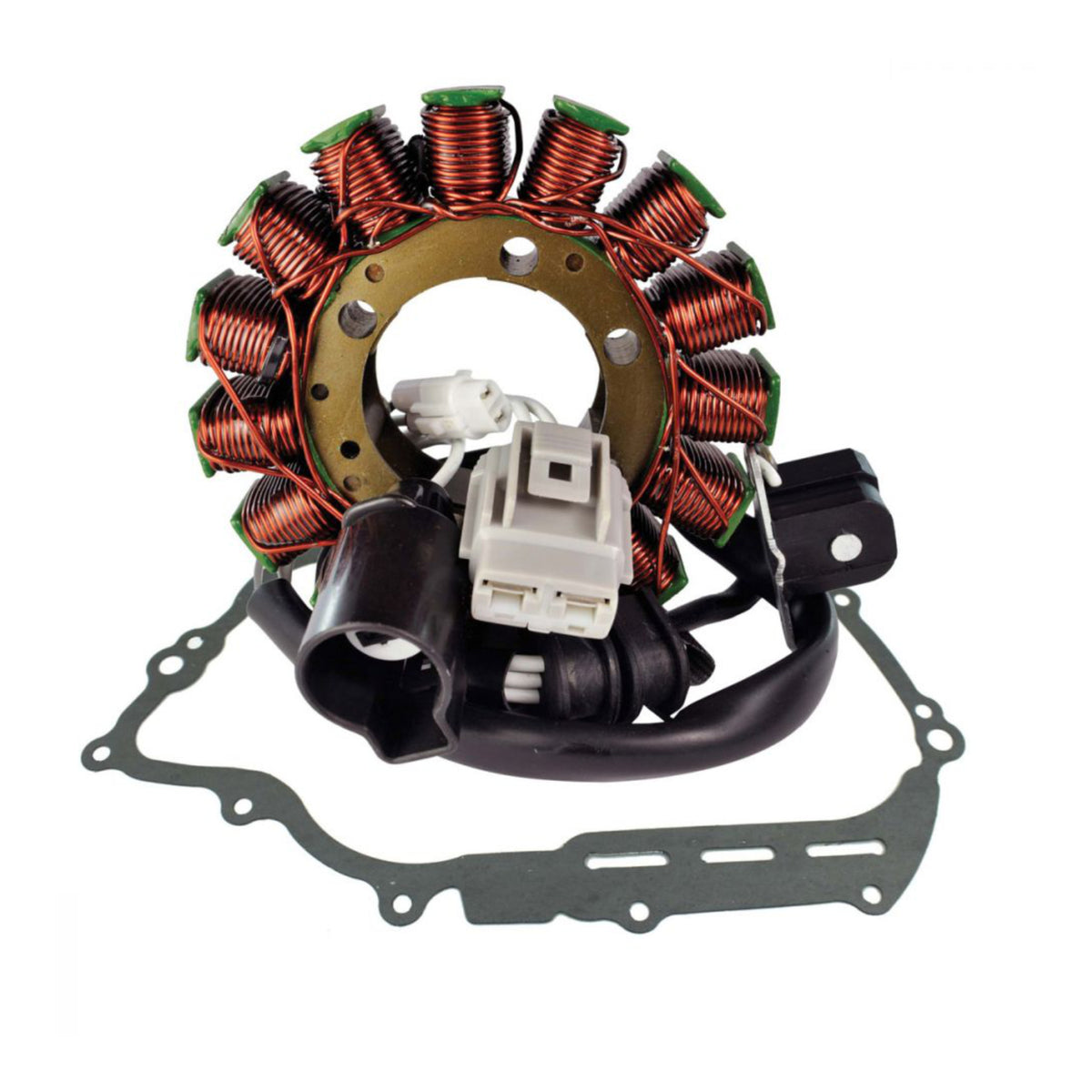

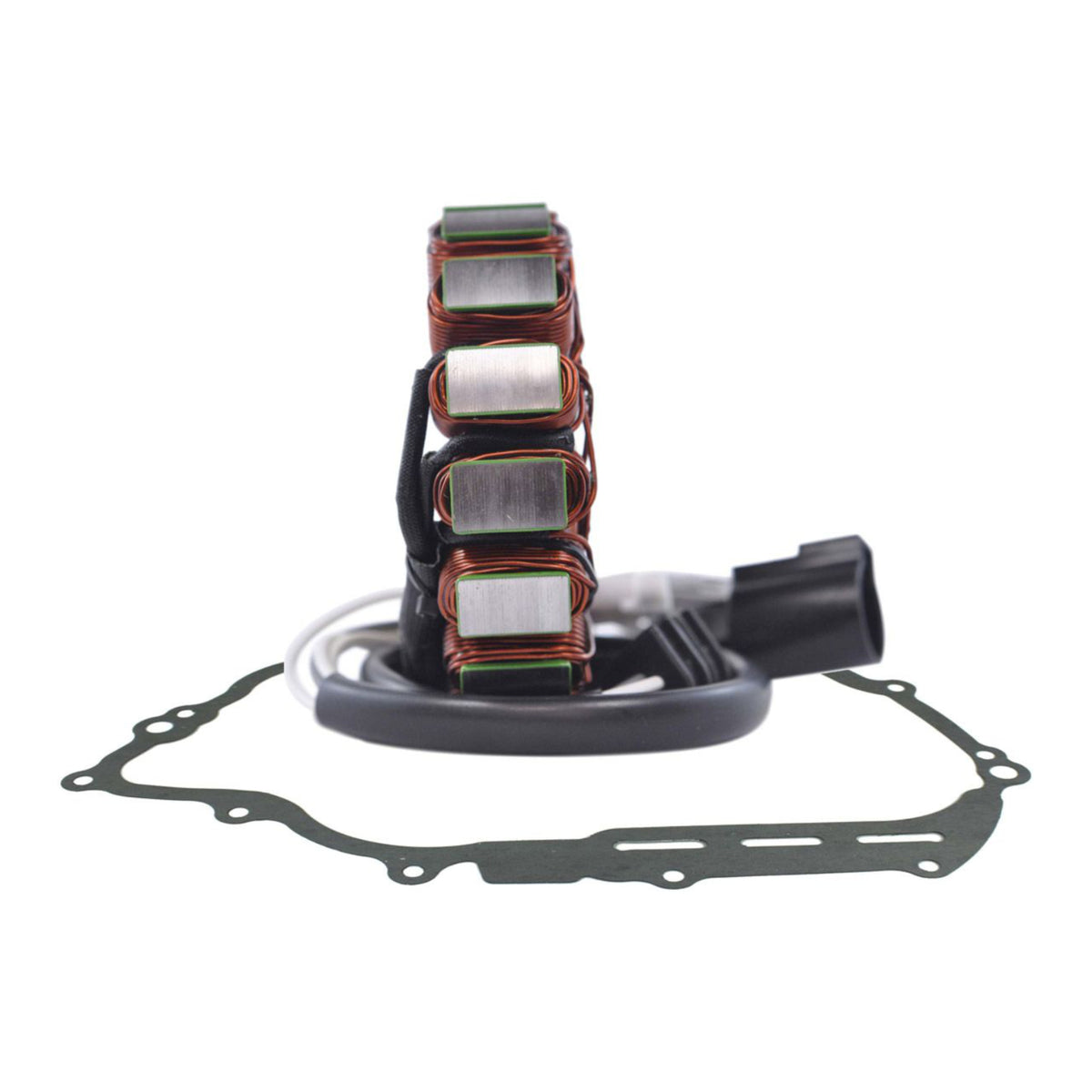

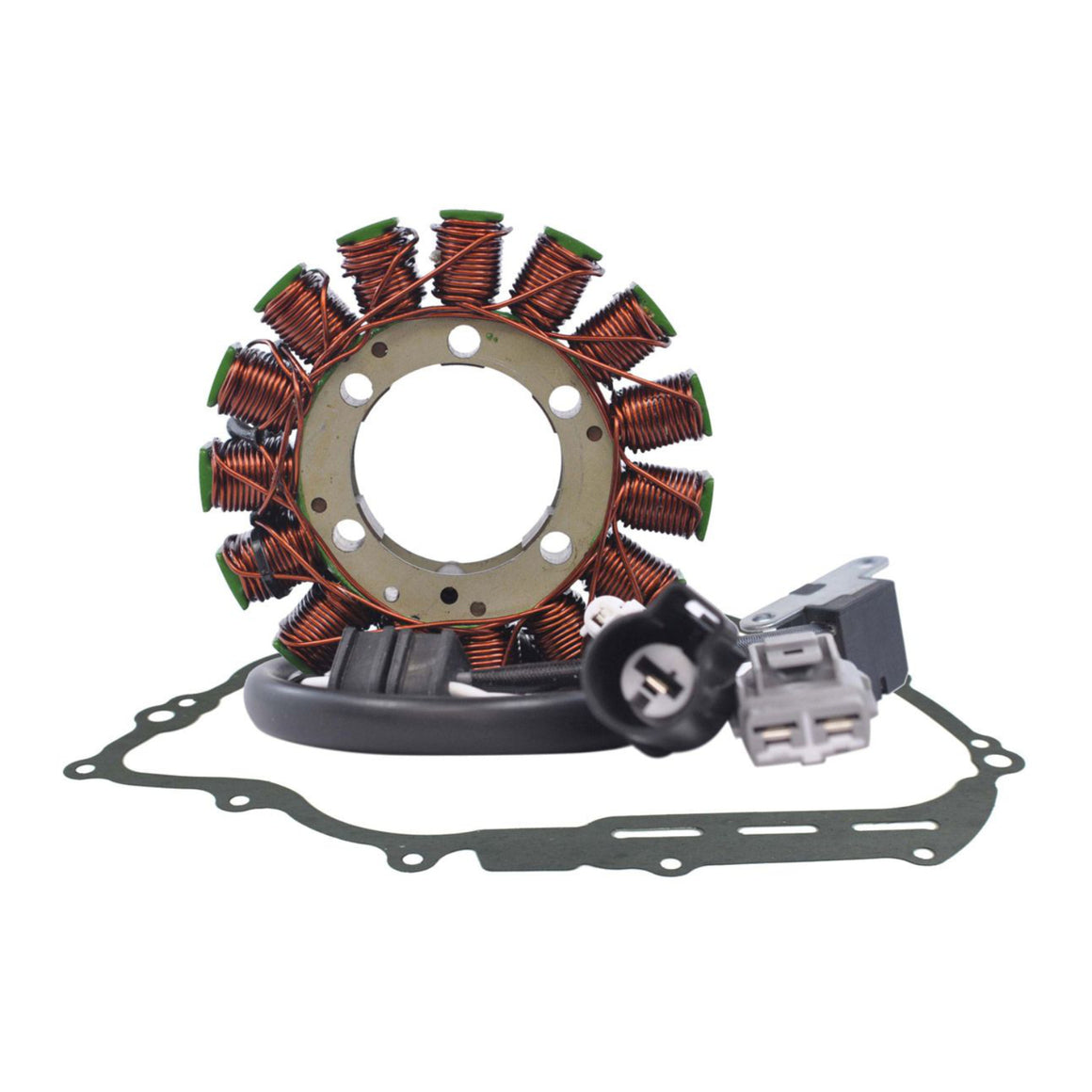

Stator + Gasket Yamaha YXR700 YXM700 YXC700 ‘90-’97

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation.
• All product shipped are tested

Stator:

• Highest grade of lamination materials
• Highest grade of copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

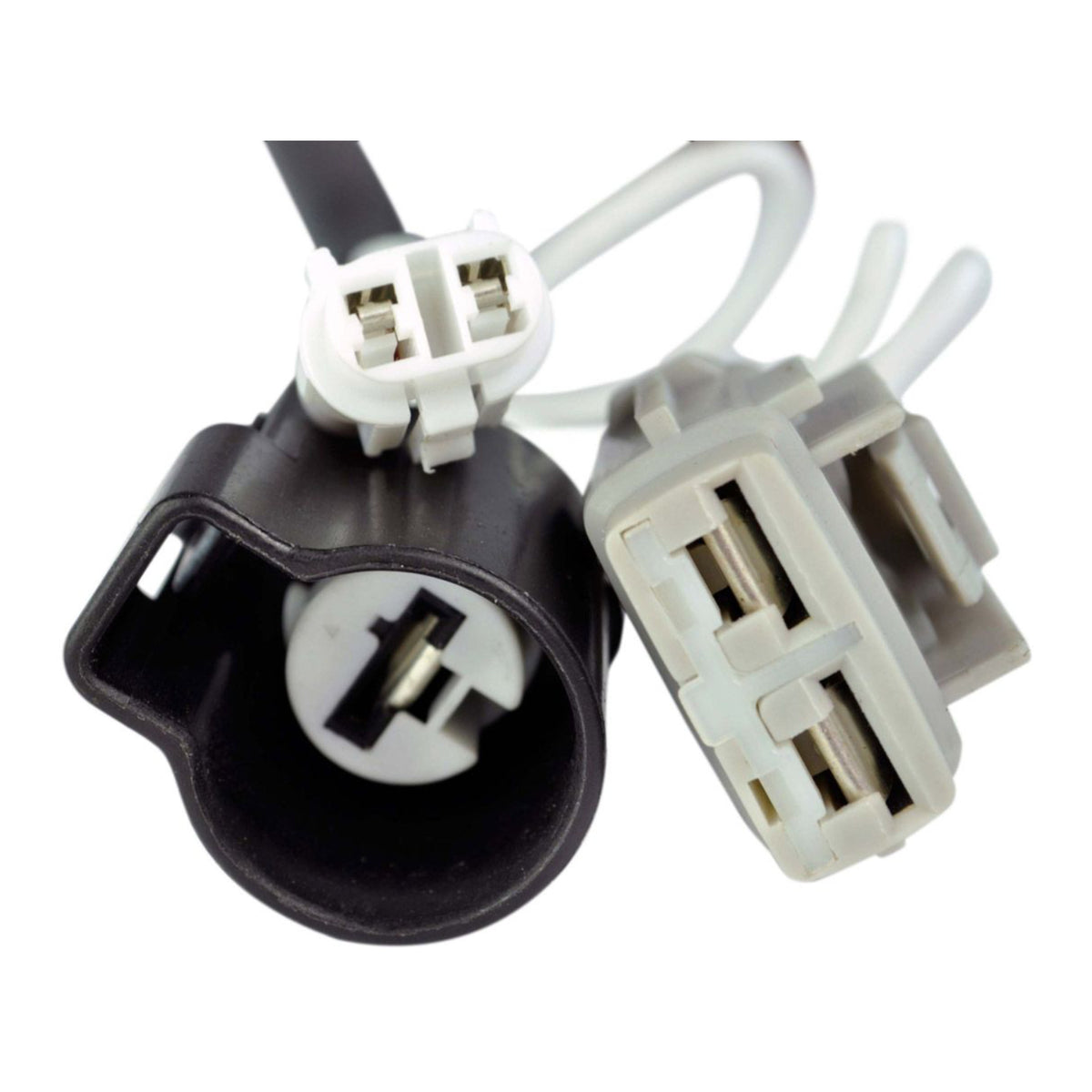

• Connector included
• Rubber grommet included

Specifications:

• Stator Dimensions:

  • Interior Diameter: 41 mm
  • Exterior Diameter: 105 mm
  • Thickness: 19 mm
  • Length of Wires Stator to Grommet: 65 mm
  • Length of Wires Grommet to Plug: 400 mm
  • Length of Pickup Coil's Wire to Grommet: 65 mm

• Other Specifications:

  • Number of Wires: 5
  • Number of Plugs: 3
  • Number of Pins: 5

• Wire to Wire Resistance:

  • Alternator: White to White = 0.4 ohms +/- 20%
  • Pickup: White to Grey = 500 ohms +/- 20%
