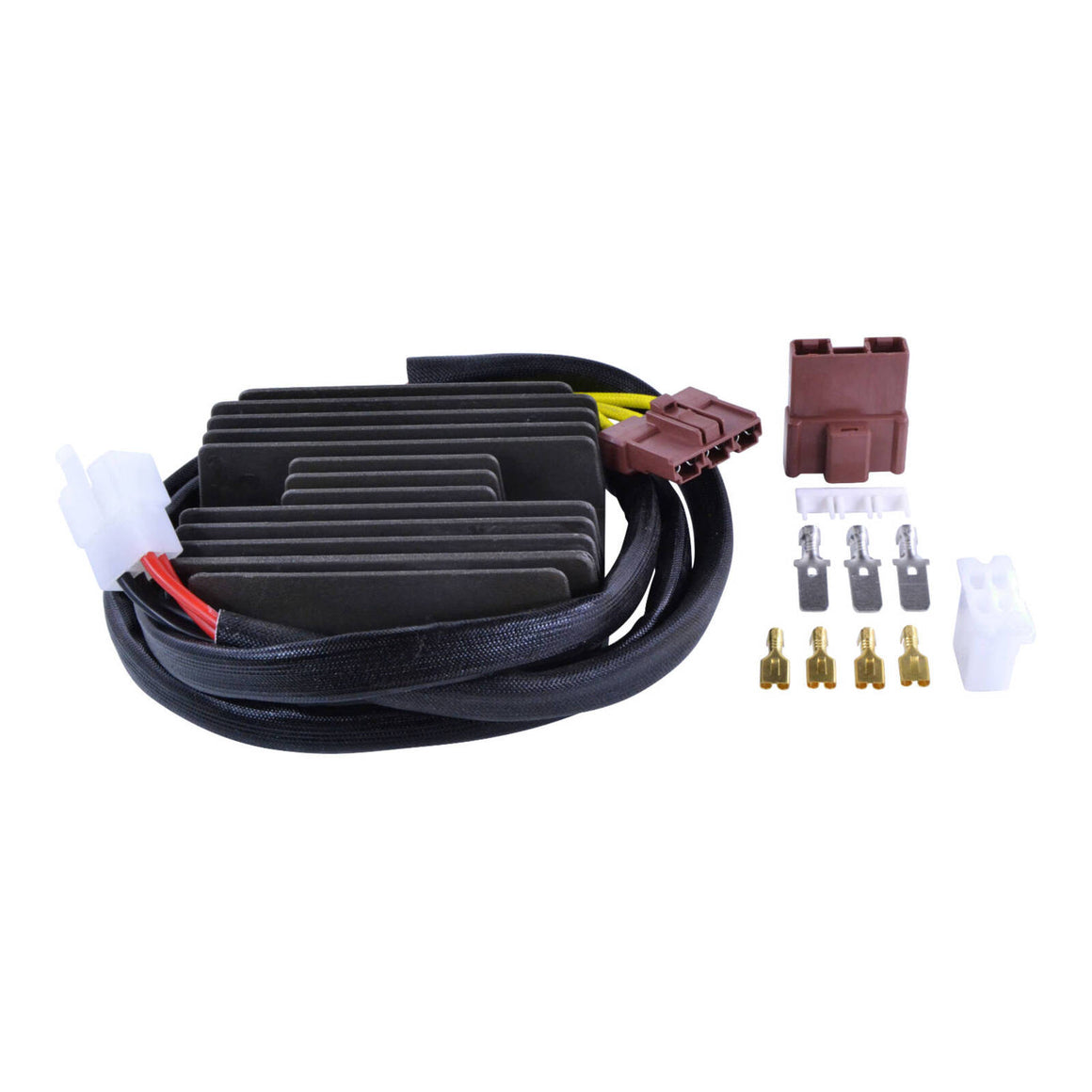

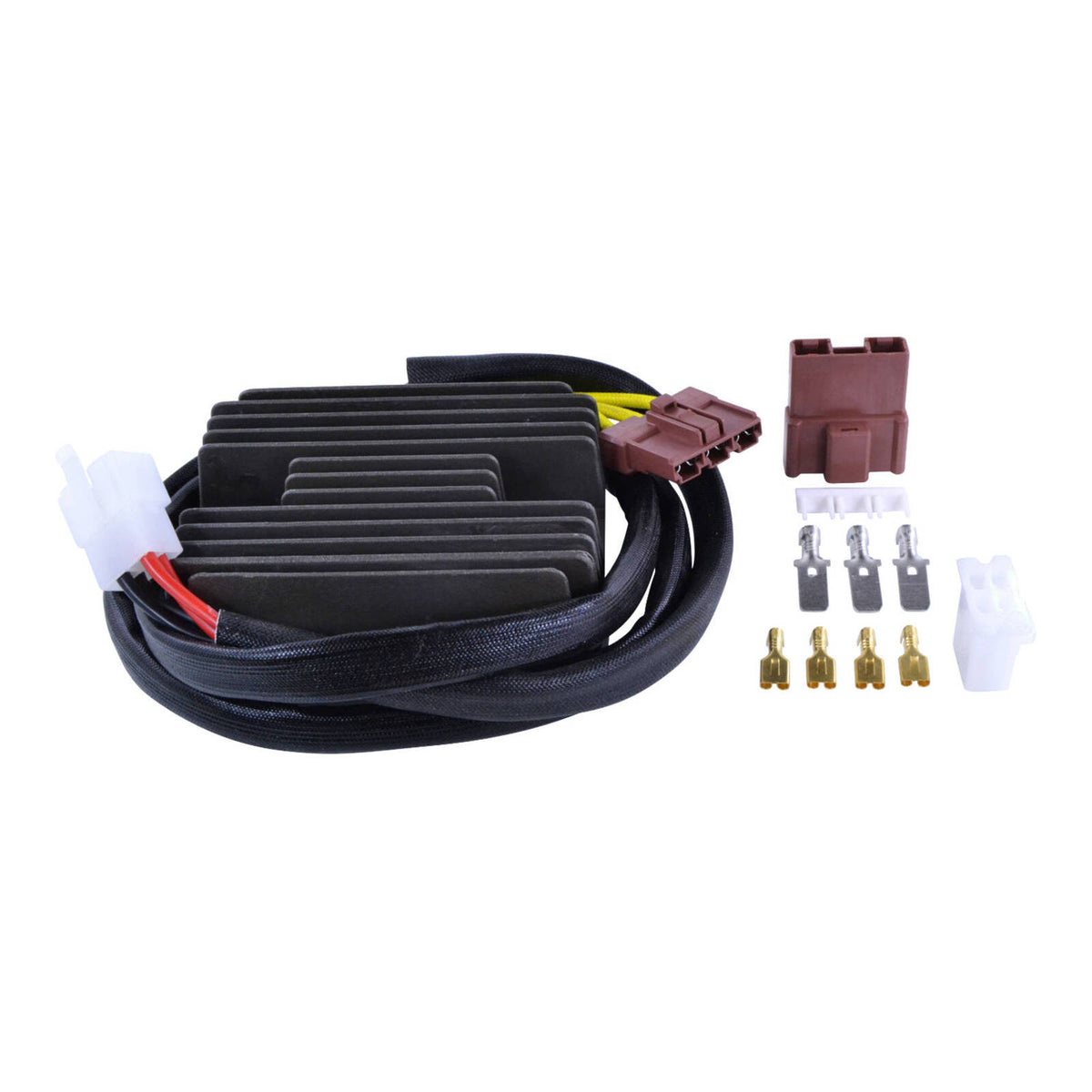

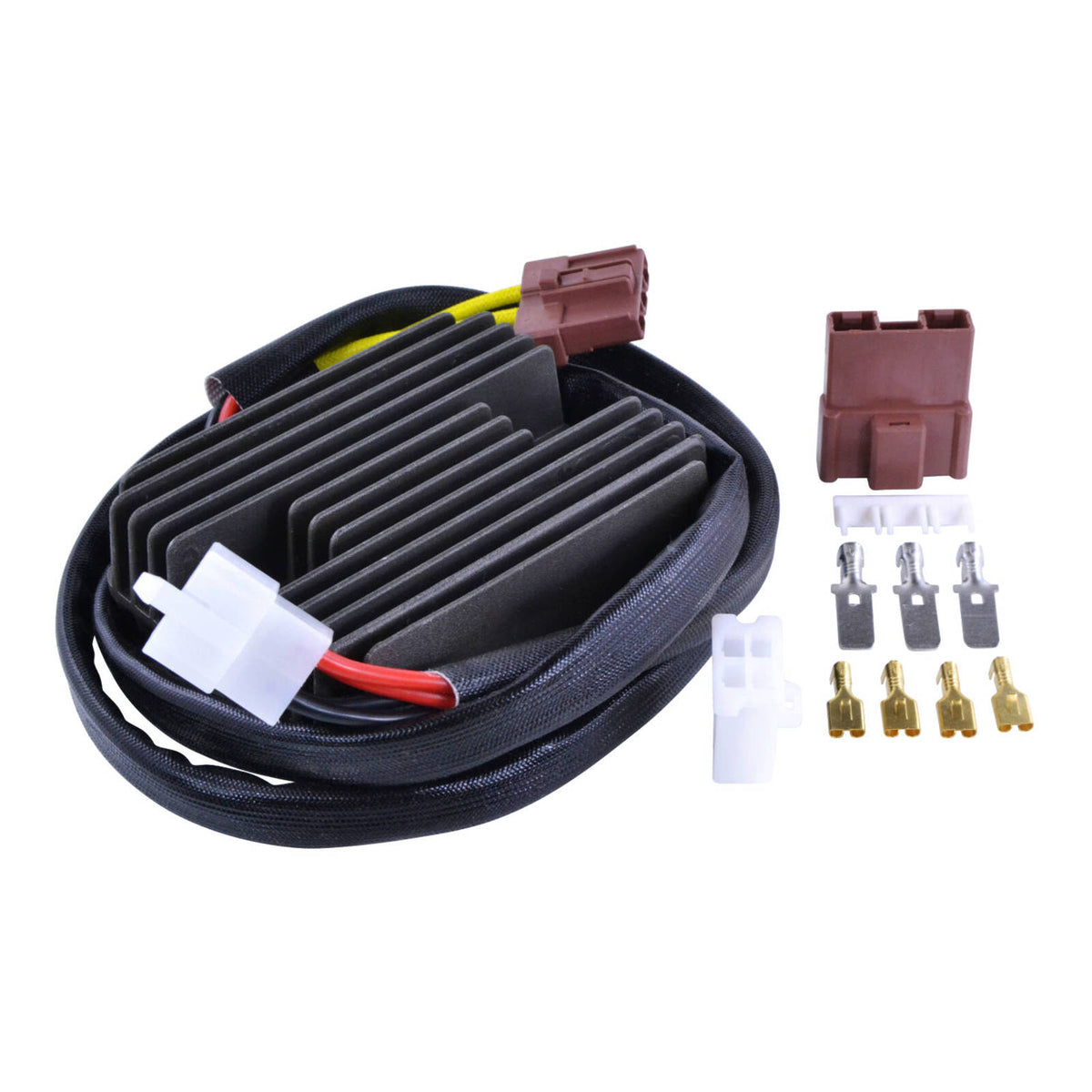

MOSFET Regulator Assorted Scooter Models (RMS020-104011)

Brand-new MOSFET voltage rectifier regulator. Runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection; rather than burning up, it will simply turn off for a while and cool off.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electrical components
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate and compare The item to the original part.

Why use MOSFET Enhanced technology?

• Runs much cooler than the traditional Shunt voltage regulator rectifier.
• Less load on the stator, less work, less fuel is used and you save.
• The power charging the battery is steadier and smooth.
• Extends the battery’s life and cold cranking capacity.
• Removes stator load resulting in more engine power.
• Optimises power delivery by switching the stator coils on or off.

Before installing the new MOSFET Voltage Regulator Rectifier :

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

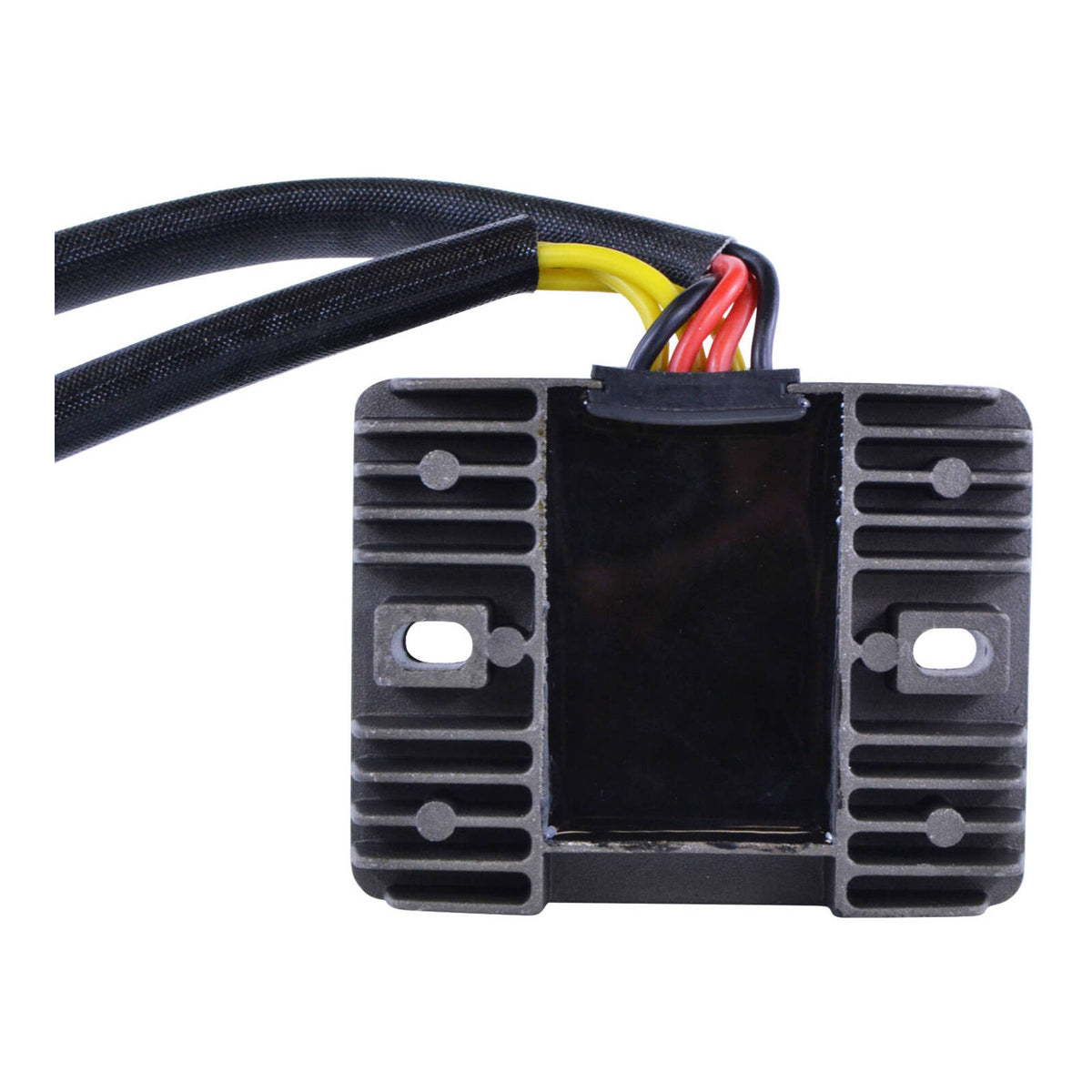

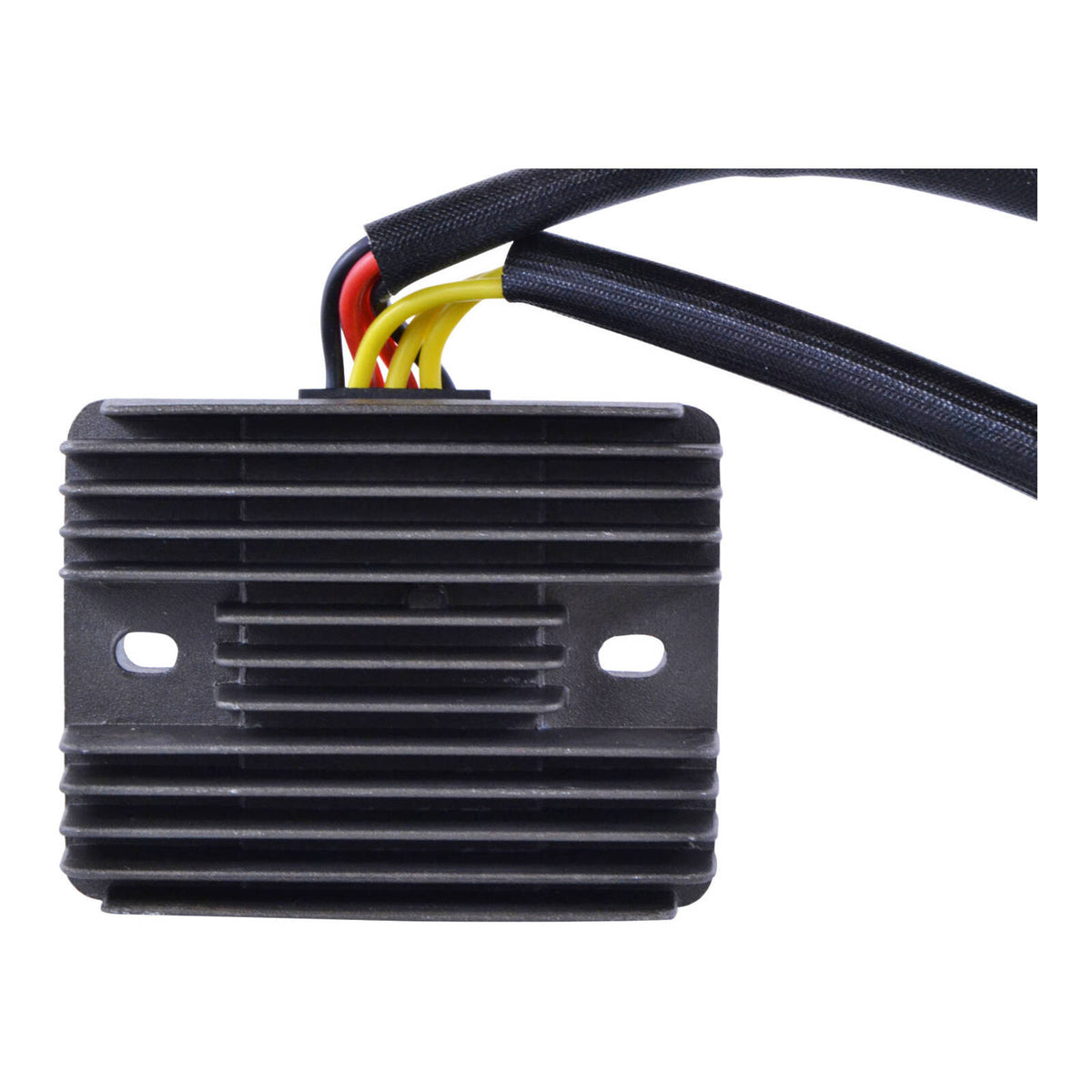

Dimensions:

• Width: 108 mm
• Length: 84 mm
• Height: 41 mm
• Wire lengths: 355 mm & 945 mm
• Fixation holes centre-to-centre: 81 mm

Other specifications:

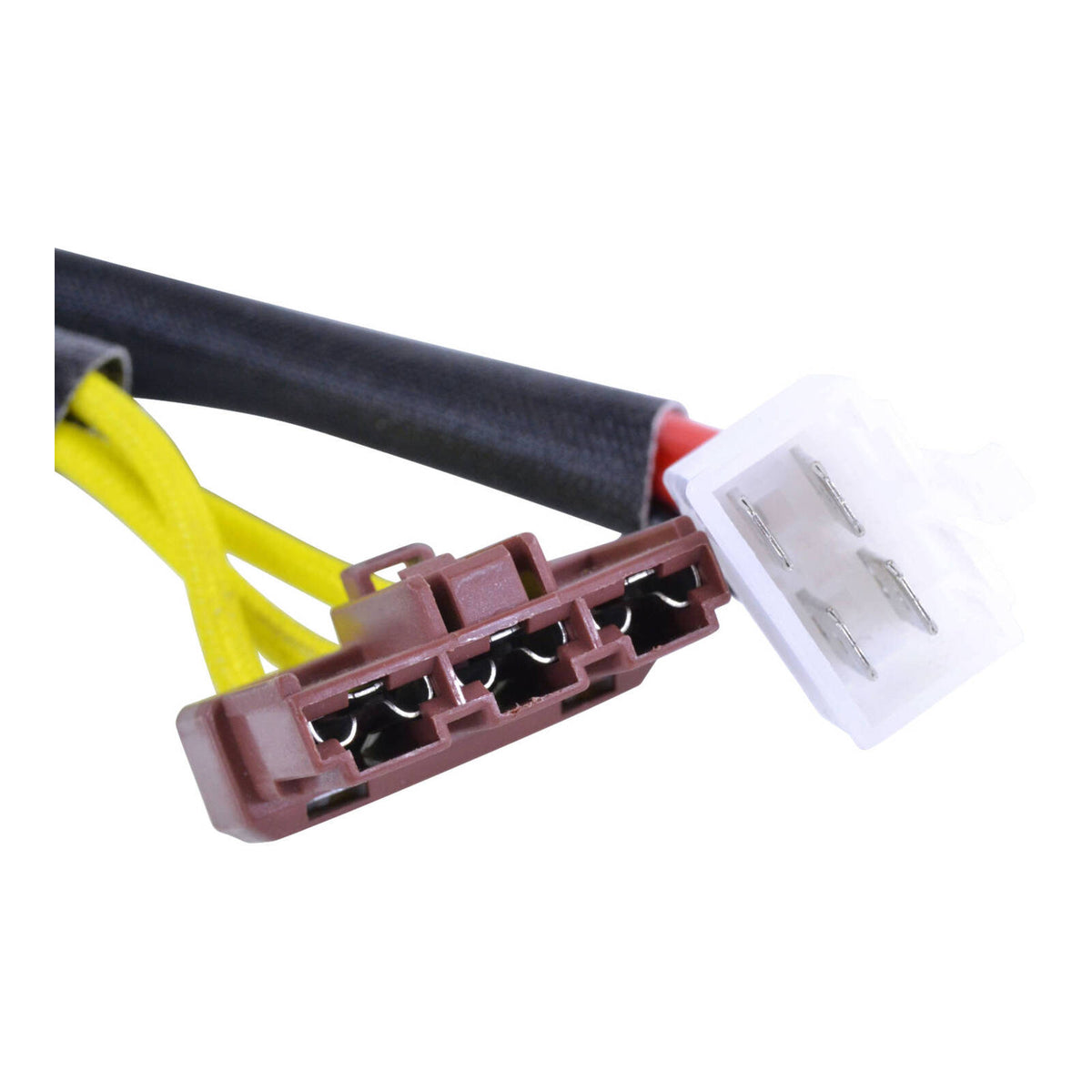

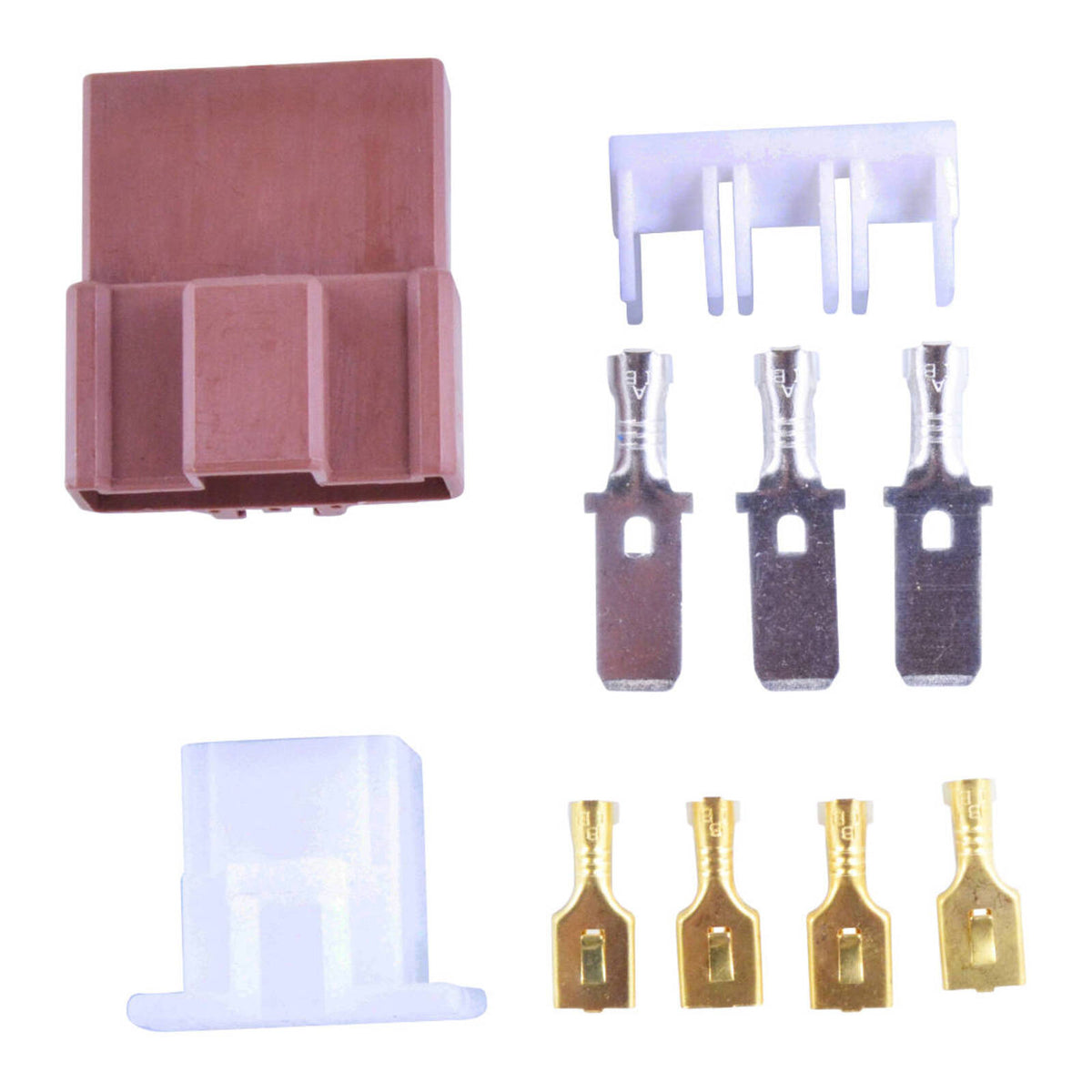

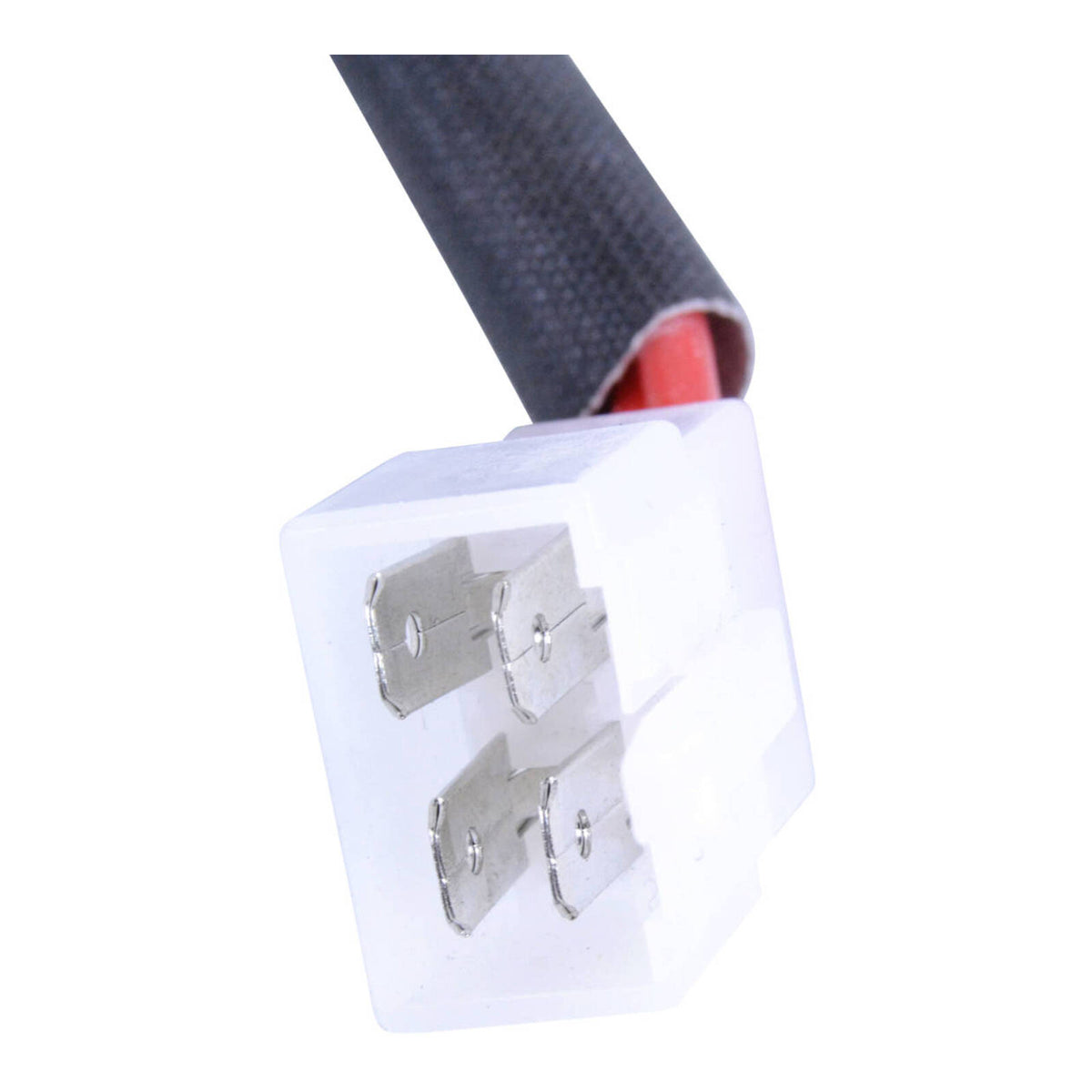

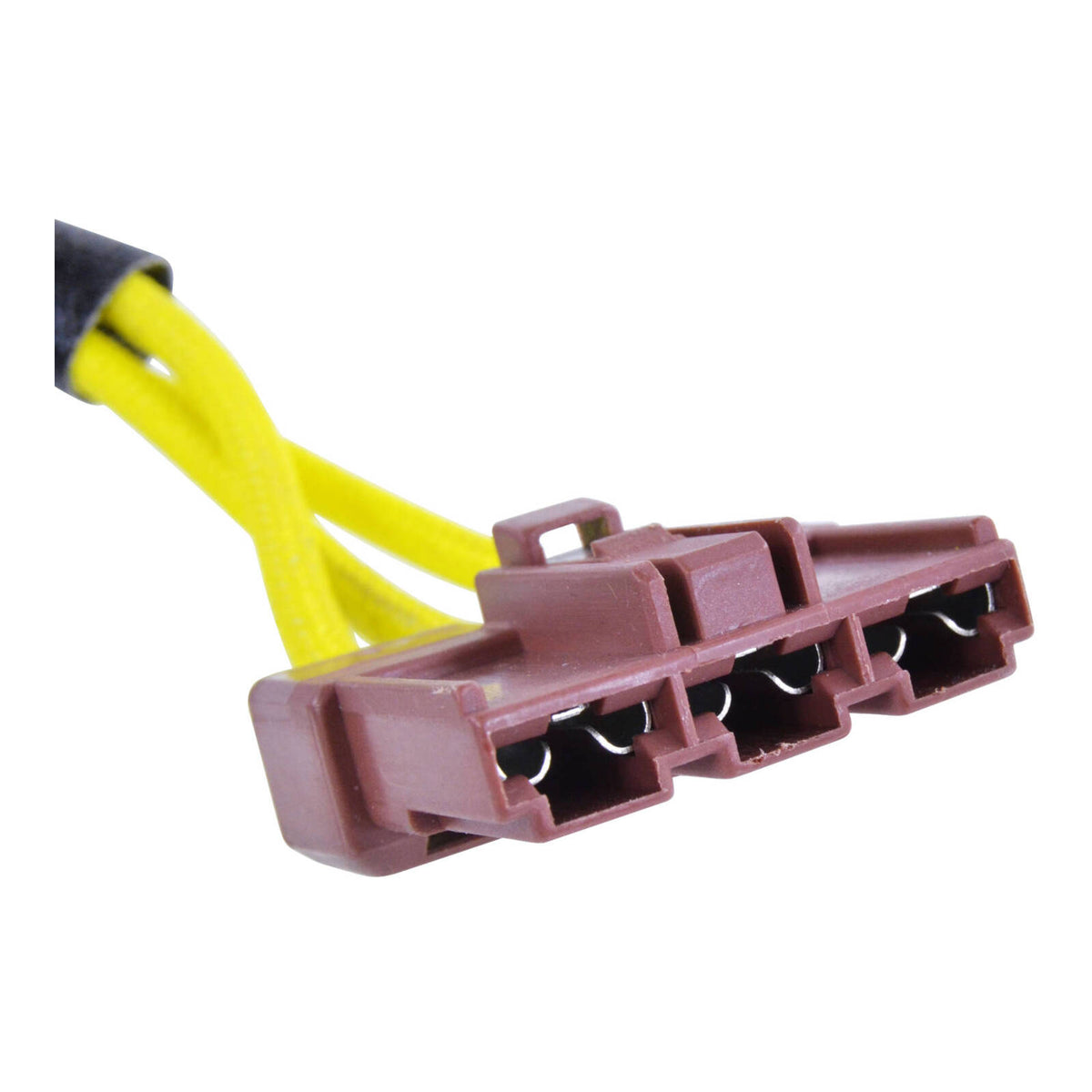

• Number of plugs: 2
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
