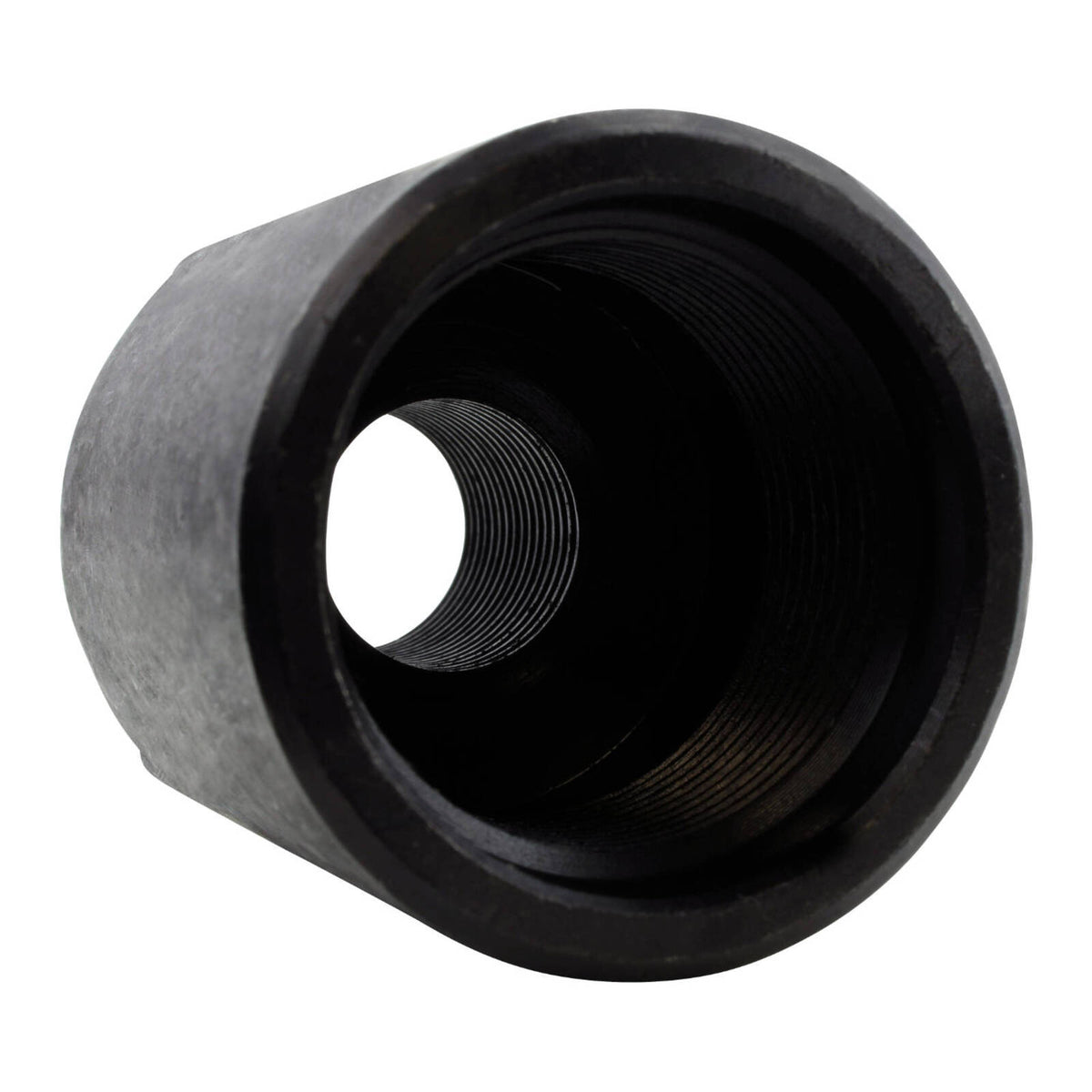

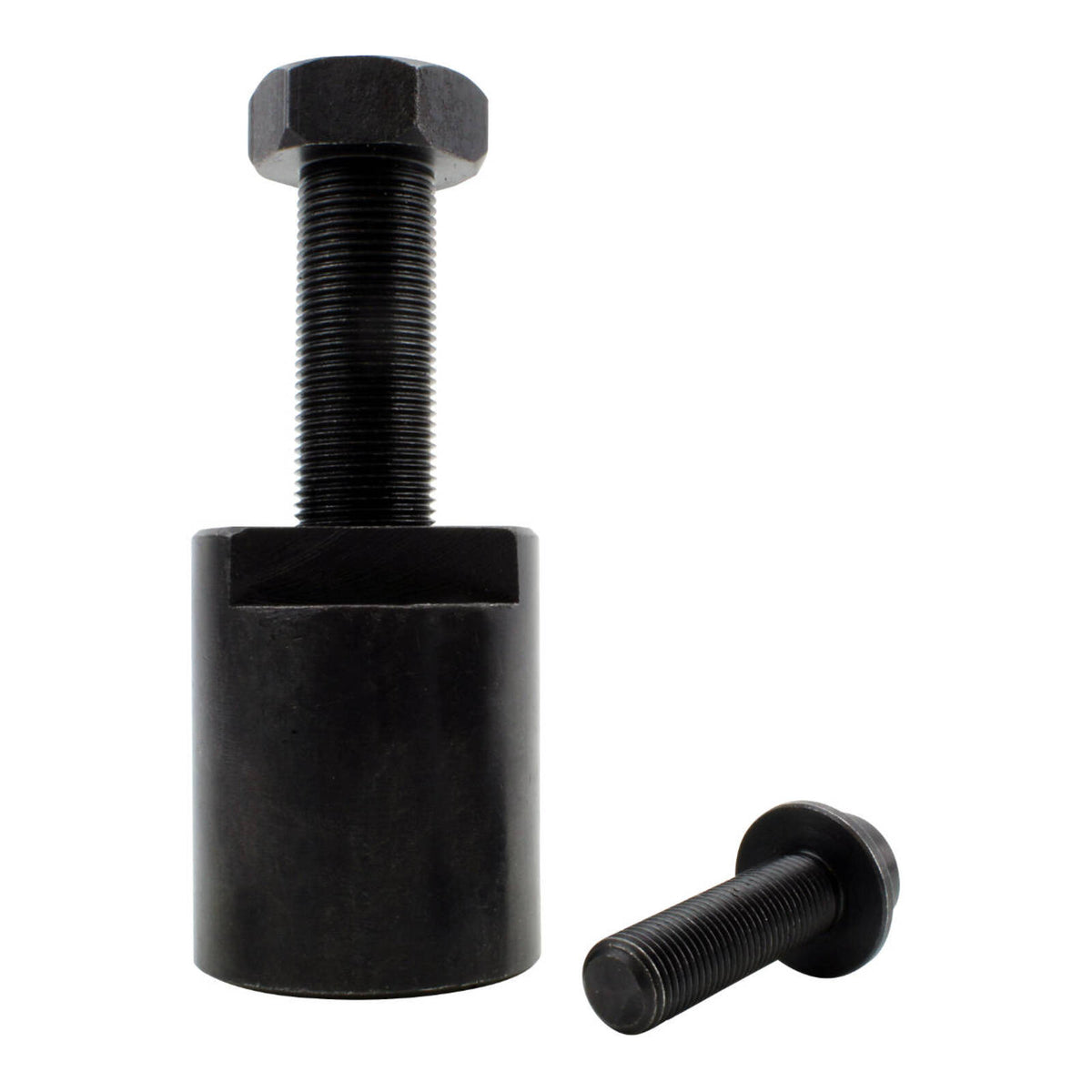

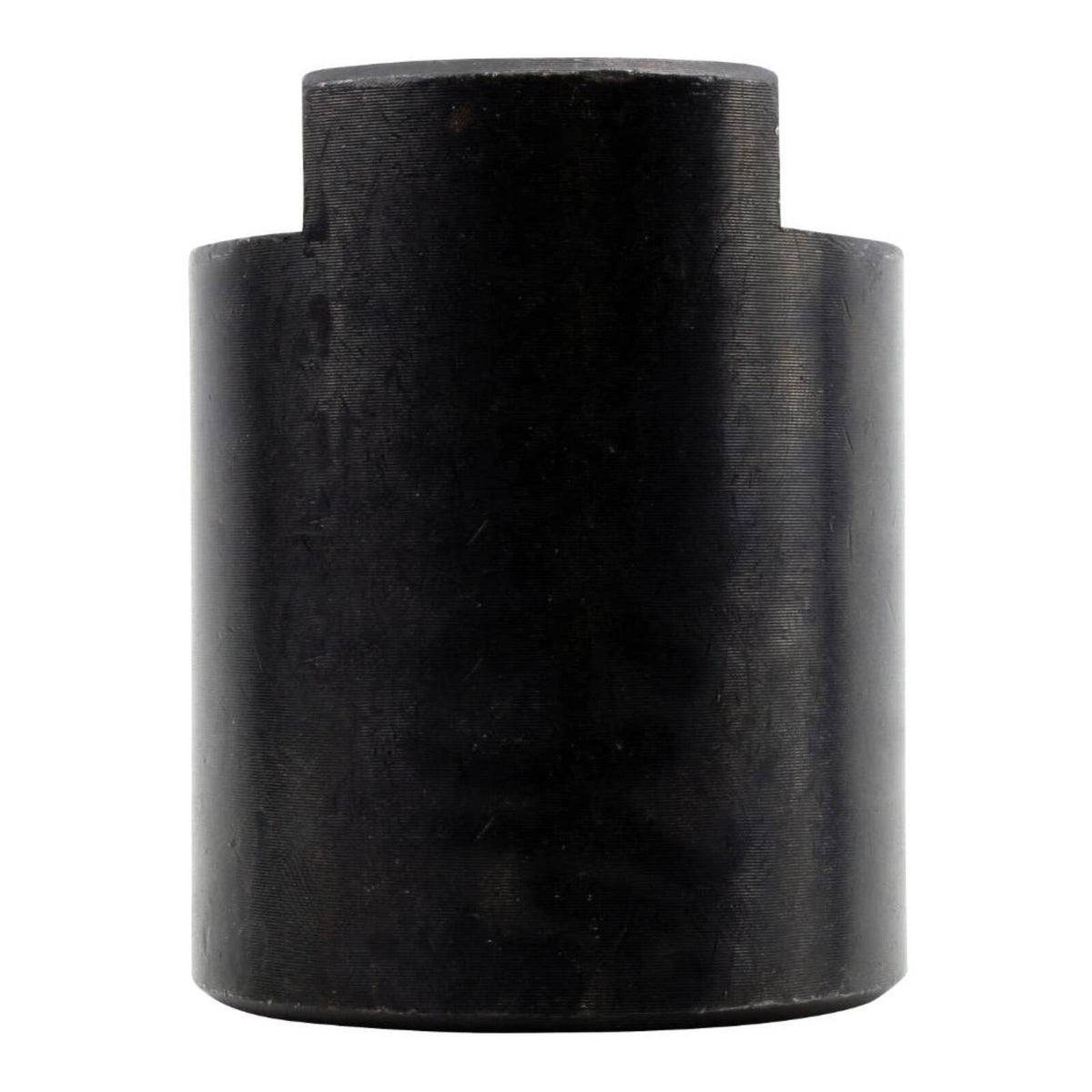

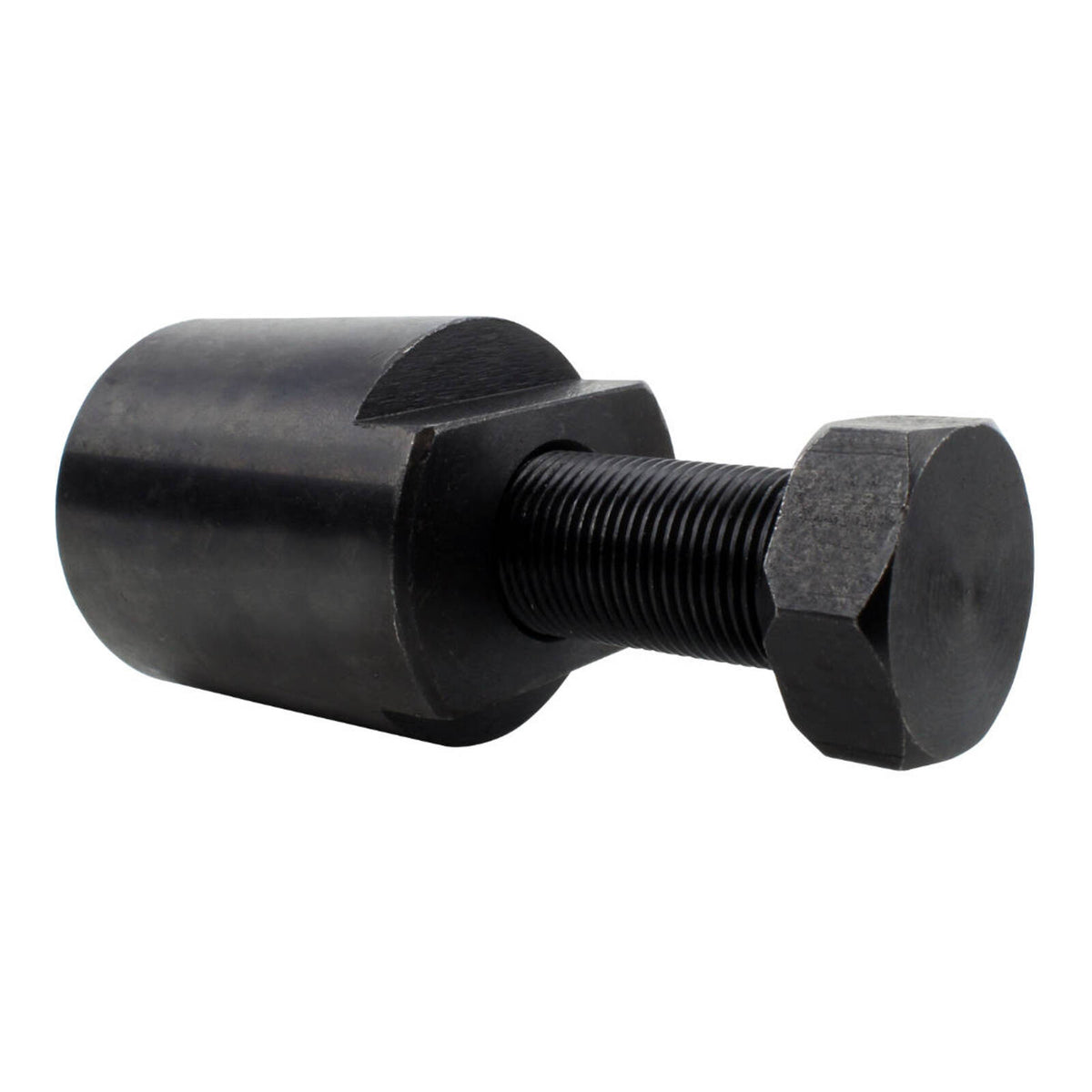

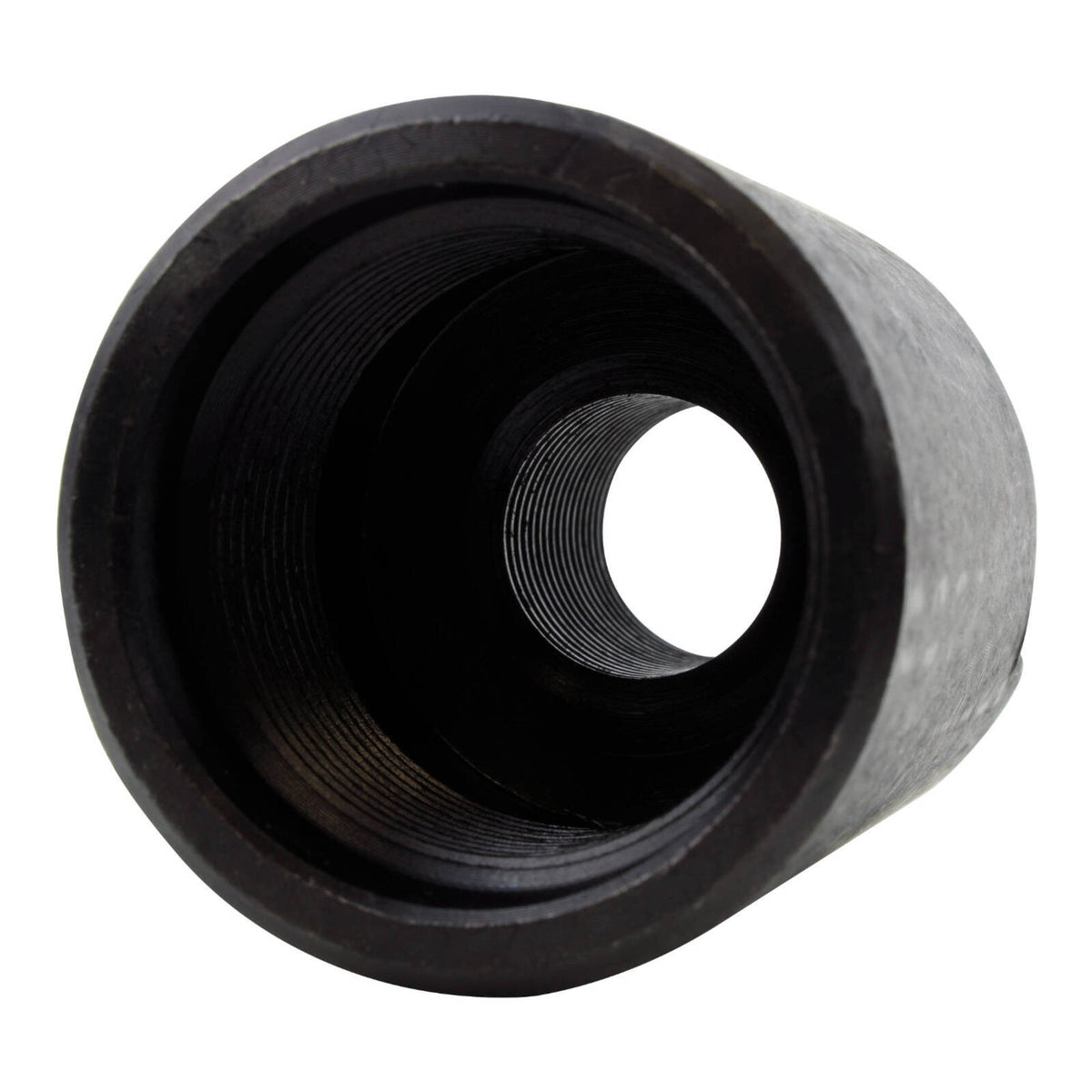

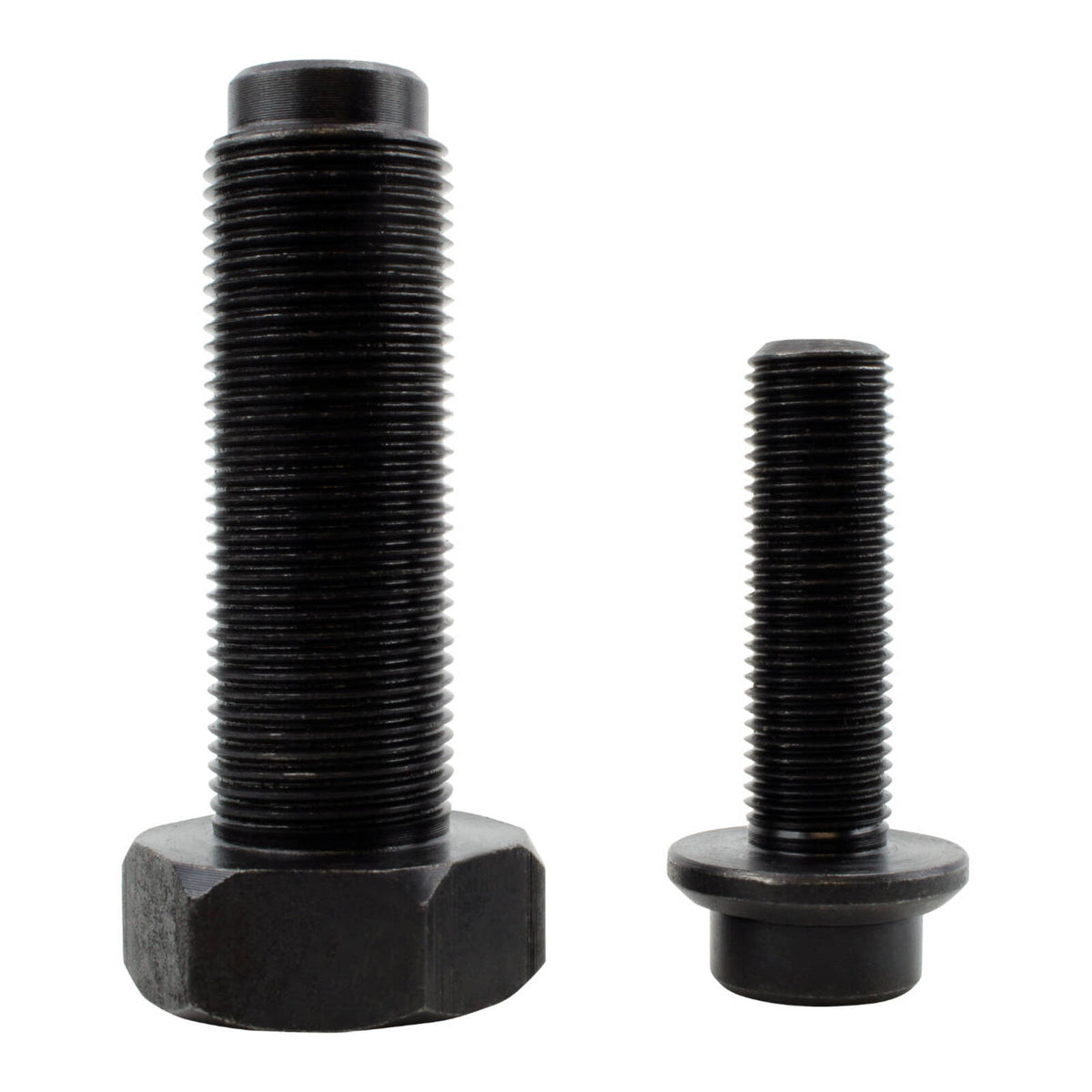

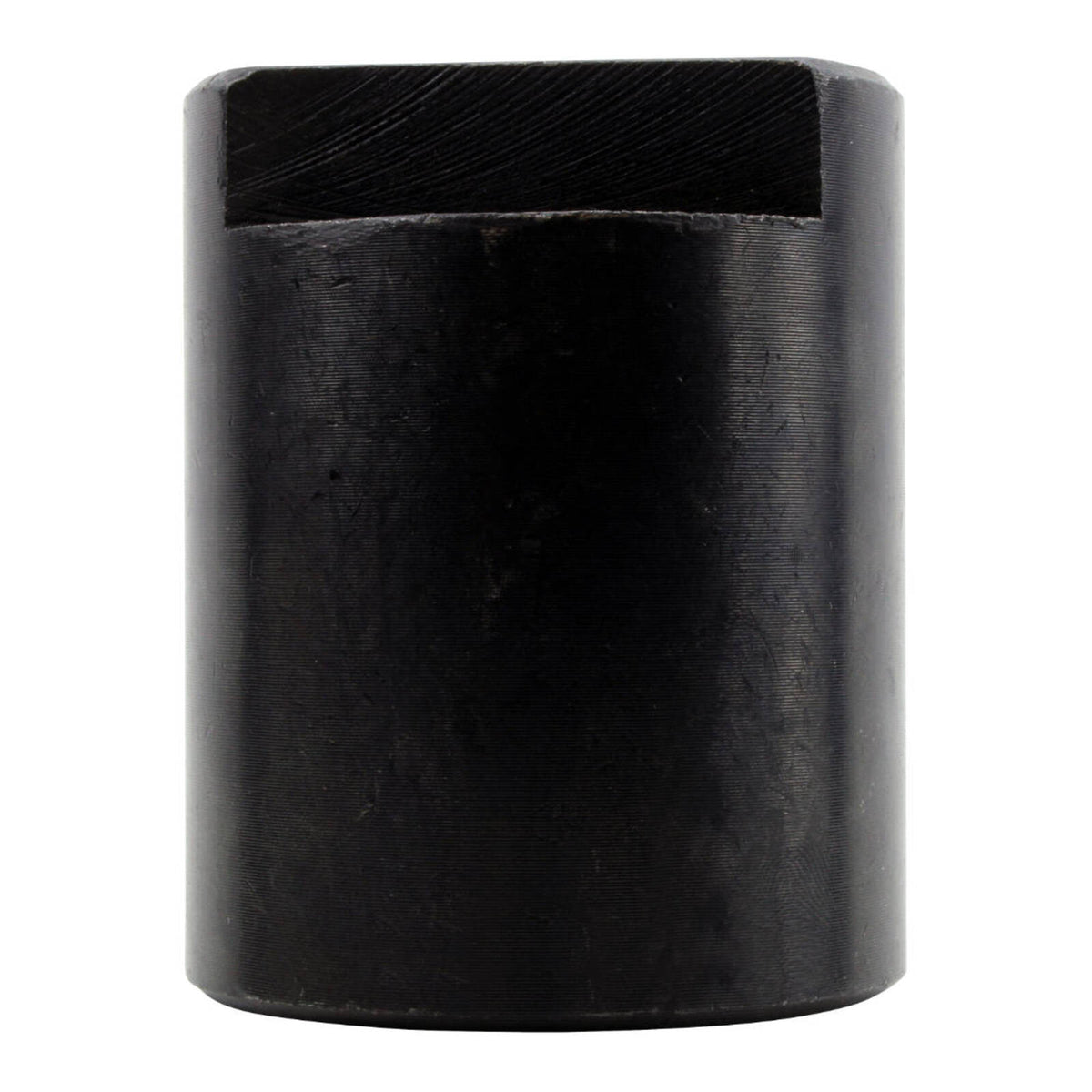

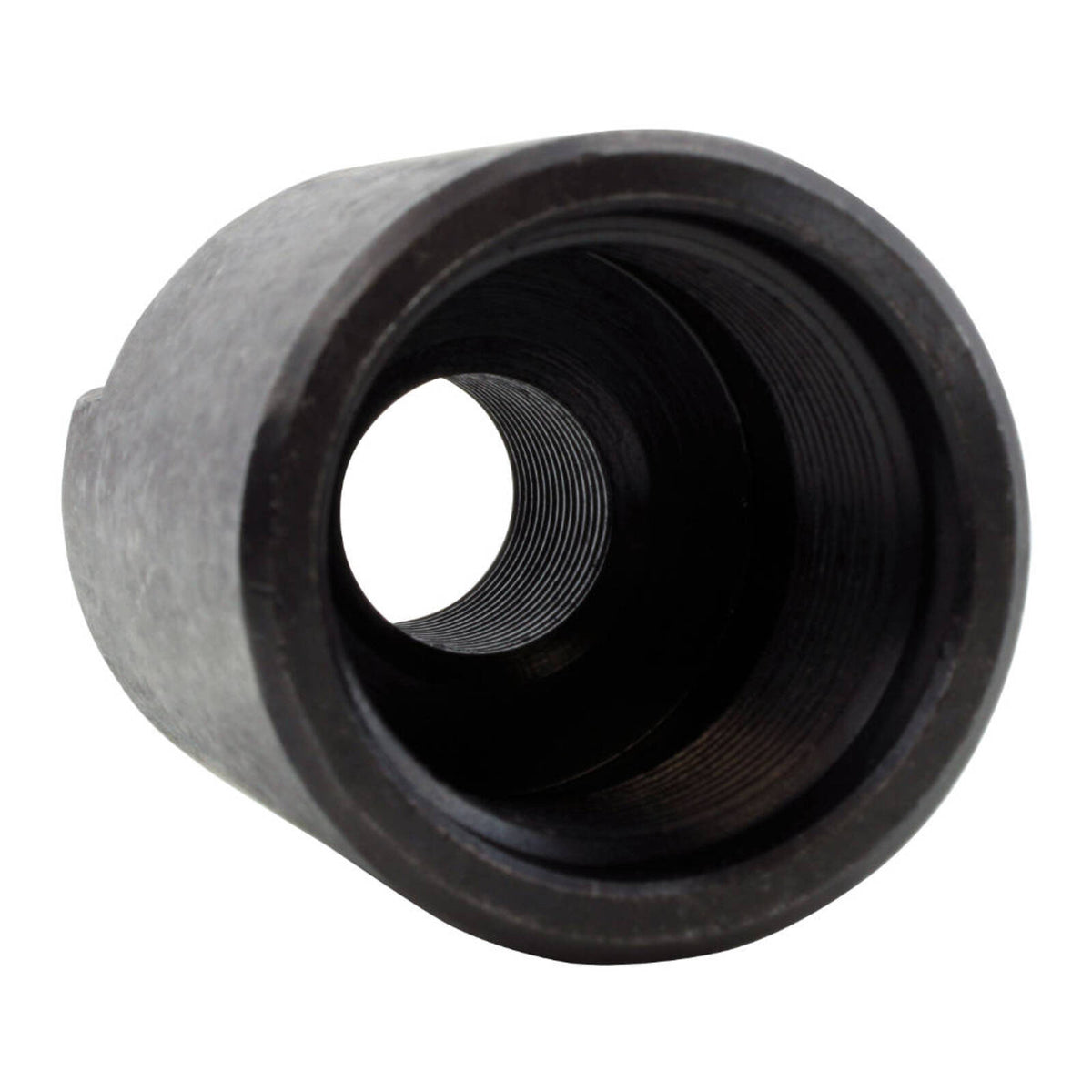

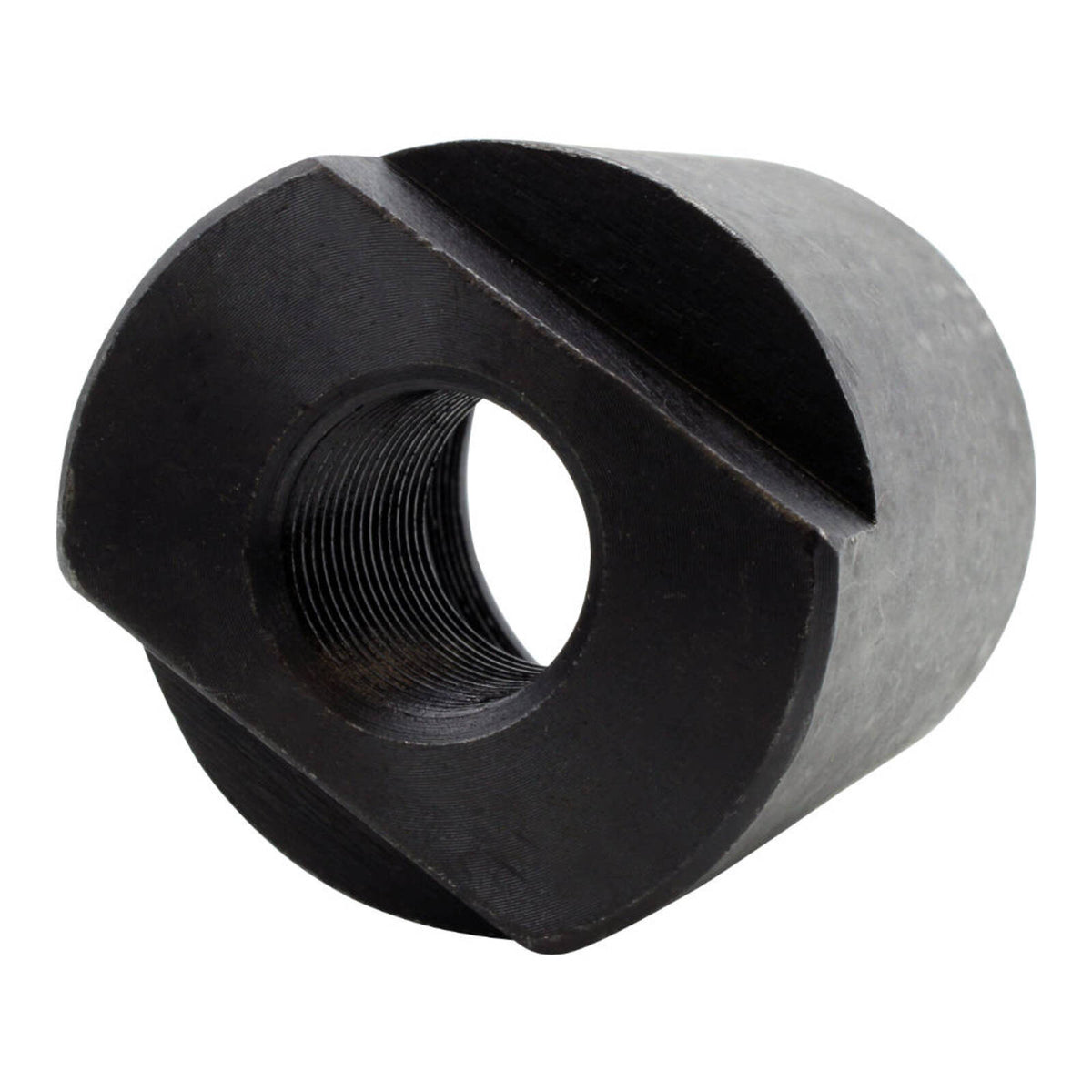

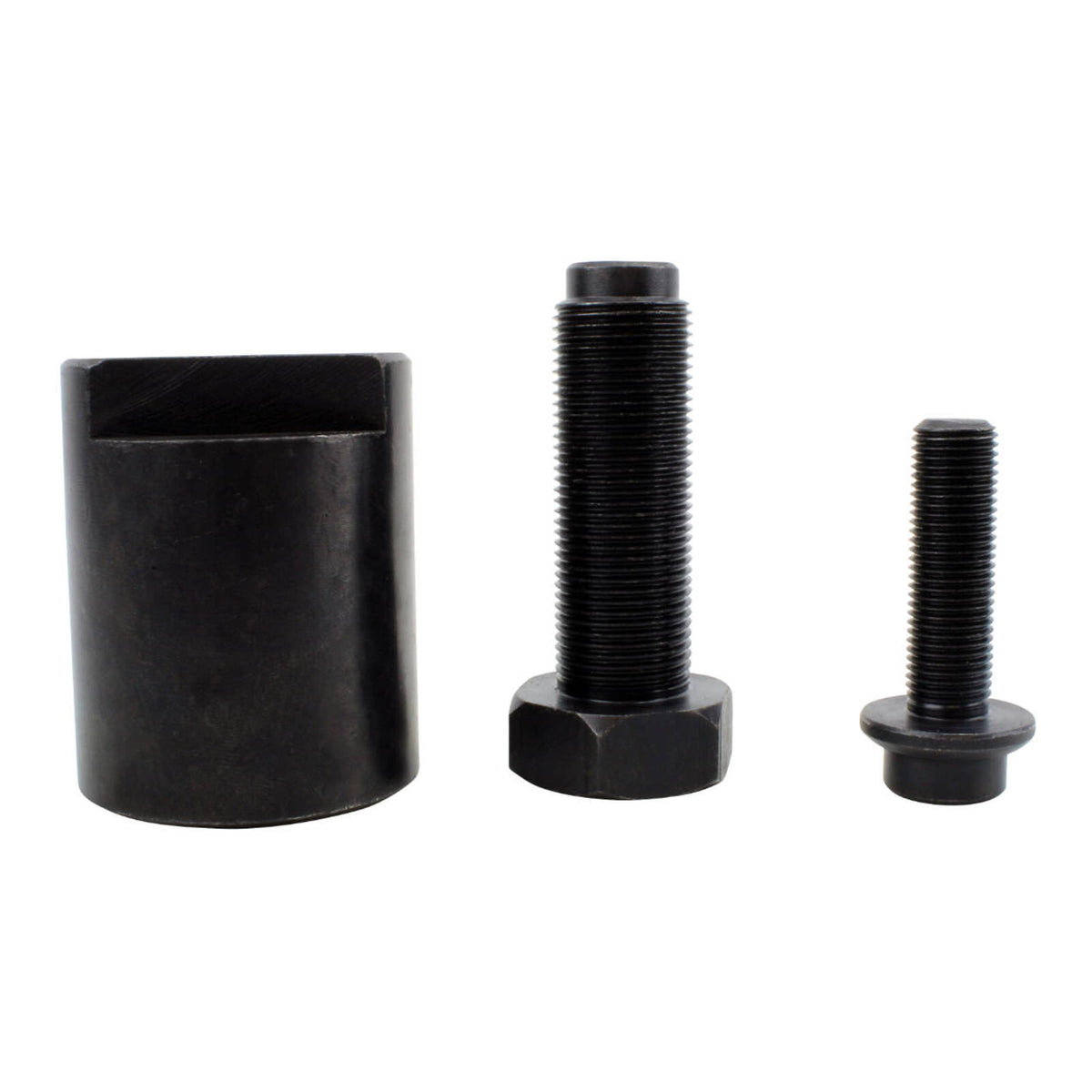

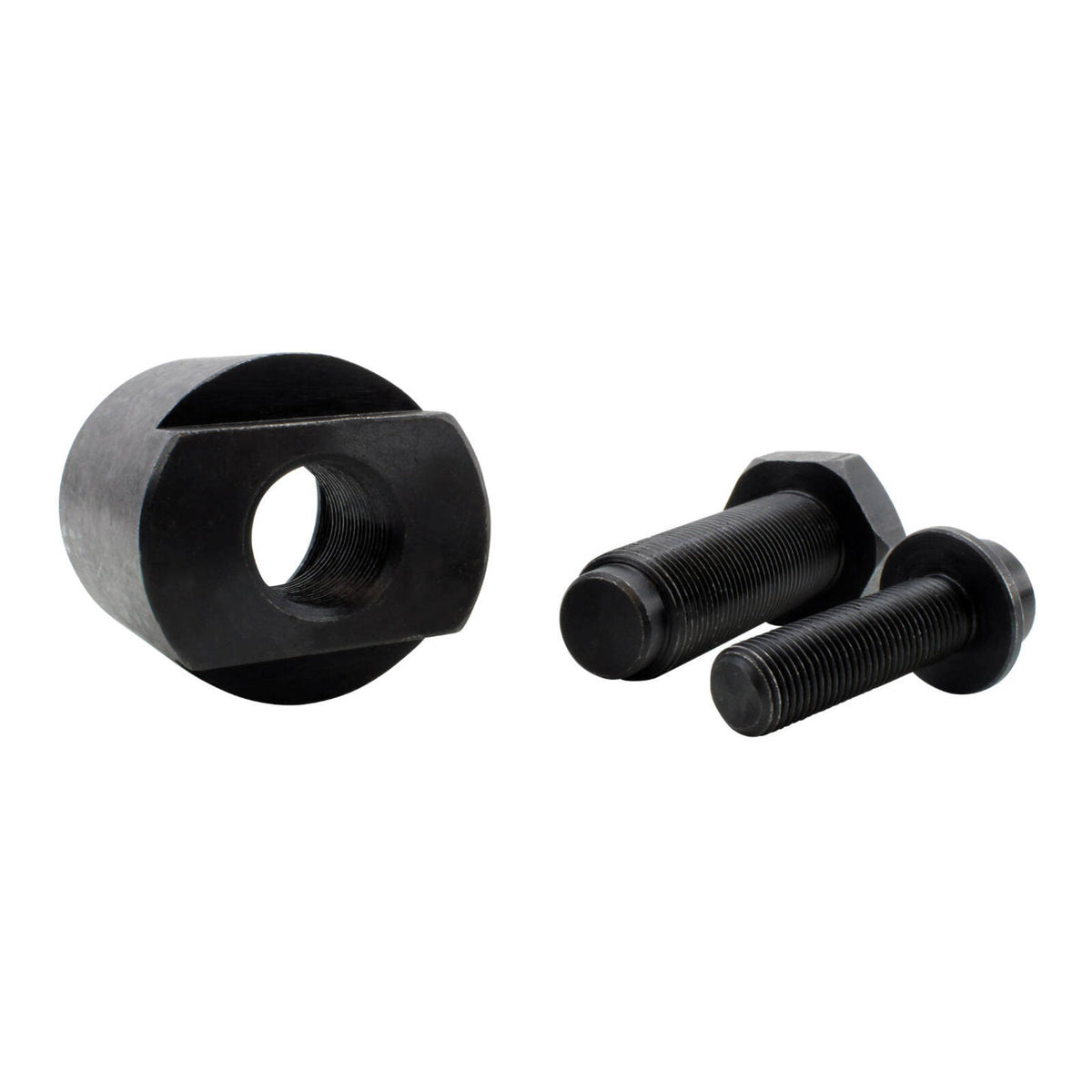

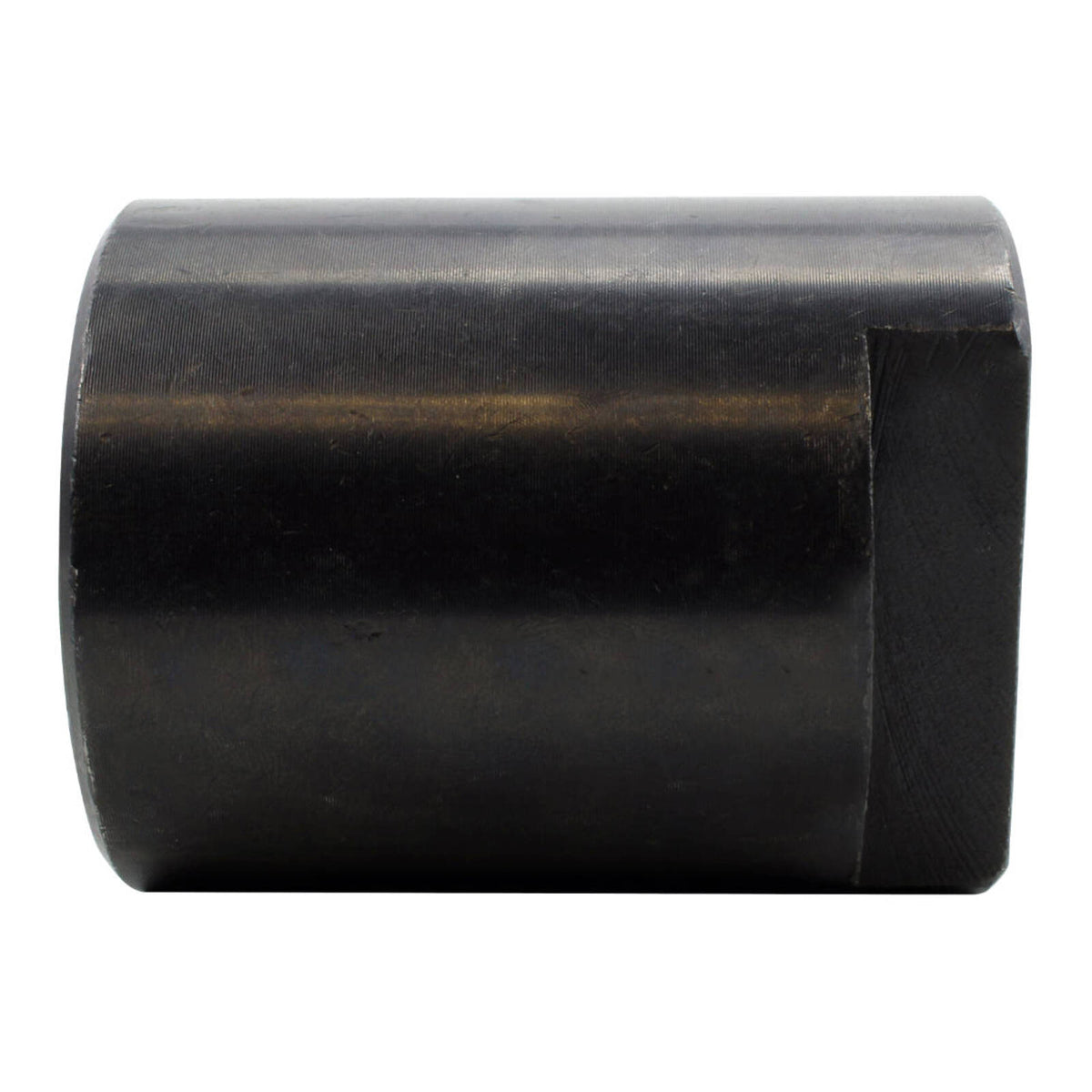

Flywheel Puller 36mm x 1.5 RH Kokusan

Brand new Flywheel Puller.

• 36 mm x 1.5 right-hand male.
• All products are tested.

All item pictures are accurate; if in doubt, do not hesitate to compare the item to the original part.

Removing a Powersport Vehicle's Flywheel / Rotor:

How it Works

Flywheel Pullers are very versatile engine service tools and are a must in every toolbox. The large selection of best-selling rotor and flywheel pullers fit just about any motorcycle or ATV. Flywheel pullers are very simple to use, having only an outer body to hold the flywheel and a screw to push on the crankshaft. Some are even simpler, having only a bolt to thread into the flywheel. A taper holds the flywheel or rotor and the crankshaft together. The flywheel is secured to the shaft by applying torque to the fixing bolt.

An Important Component to use

Many flywheel or rotor puller tools will include a small cap. This is a crankshaft thread protector and should always be used if it is included with the puller. You slip this cap onto the end of the inner piece of the puller which presses against the tip of the crankshaft. This keeps the fine threads from being stripped or damaged while removing the flywheel or rotor.

Actions to Avoid

Most of the time, removing a flywheel or rotor is painless. But sometimes corrosion, over-torquing the fixing bolt, or heat-cycling can give you a hard time removing the flywheel. We too often see mechanics use a larger breaker bar or air impact tools to ease the flywheel off. These two techniques will damage the flywheel, the flywheel puller, or the crank. Avoid using them if you want to keep it cheap.

Tips to break a stuck flywheel loose:

Torque Wrench

How do you know if it's stuck? You simply have to set the torque wrench to 50 ft-lbs and try to ease the flywheel off. If the flywheel is not stuck, you should be able to remove it with even less torque than this. If it is stuck, don't use more torque or you might break the wrench.

Ball Peen Hammer

If 50 ft-lbs does not do the trick, go fetch something like a 12 or 16 oz ball peen hammer. Hit the end of the flywheel puller with a medium blow. Many times, the shock you create will successfully remove the flywheel. Be prepared to catch the flywheel since the shock of the hammer can make the flywheel jump off. Once again, getting into that situation will be pricey. And don't forget the safety glasses.

Propane Torch

The hammer is not a be-all, end-all solution. Sometimes, you will have to find something more powerful, and that's where the propane torch comes in. As a last resort solution, the heat should expand the flywheel but not the crank, since it is too massive to expand as fast. That way, the flywheel will become looser and will come off easier.

Important Security Tips:

• Clean any oil or flammable liquids off the flywheel.
• Make sure the work area is free of any flammable liquids and that you work in a well-ventilated area.
• Make sure to remove the gas tank and set it aside at a safe distance.

Make sure the flame of the torch is focused, and heat only the centre of the flywheel. This is due to the fact that some flywheels use adhesive or other fixing compounds to locate the magnets in the rim that can be damaged by concentrated heat. Here again, the wheel might fall off the crank, so be prepared to catch it. And remember that you just heated it, so make sure you can catch it without burning yourself.

With these tips and techniques, you are now equipped to handle any stuck flywheel without throwing the flywheel puller at it; unless you have a habit of working with machines that have been in a lake for months!

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Length: 60 mm.
• Exterior diameter: 47 mm.
• Interior diameter: 20 mm.
• Exterior diameter centre housing: 37 mm.
