STATOR KIT ASSTD CAN-AM MODELS RFR FITMENTS (RMS900-106953)
Couldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns
Payment details
Help your customers identify what payments are accepted by your store.

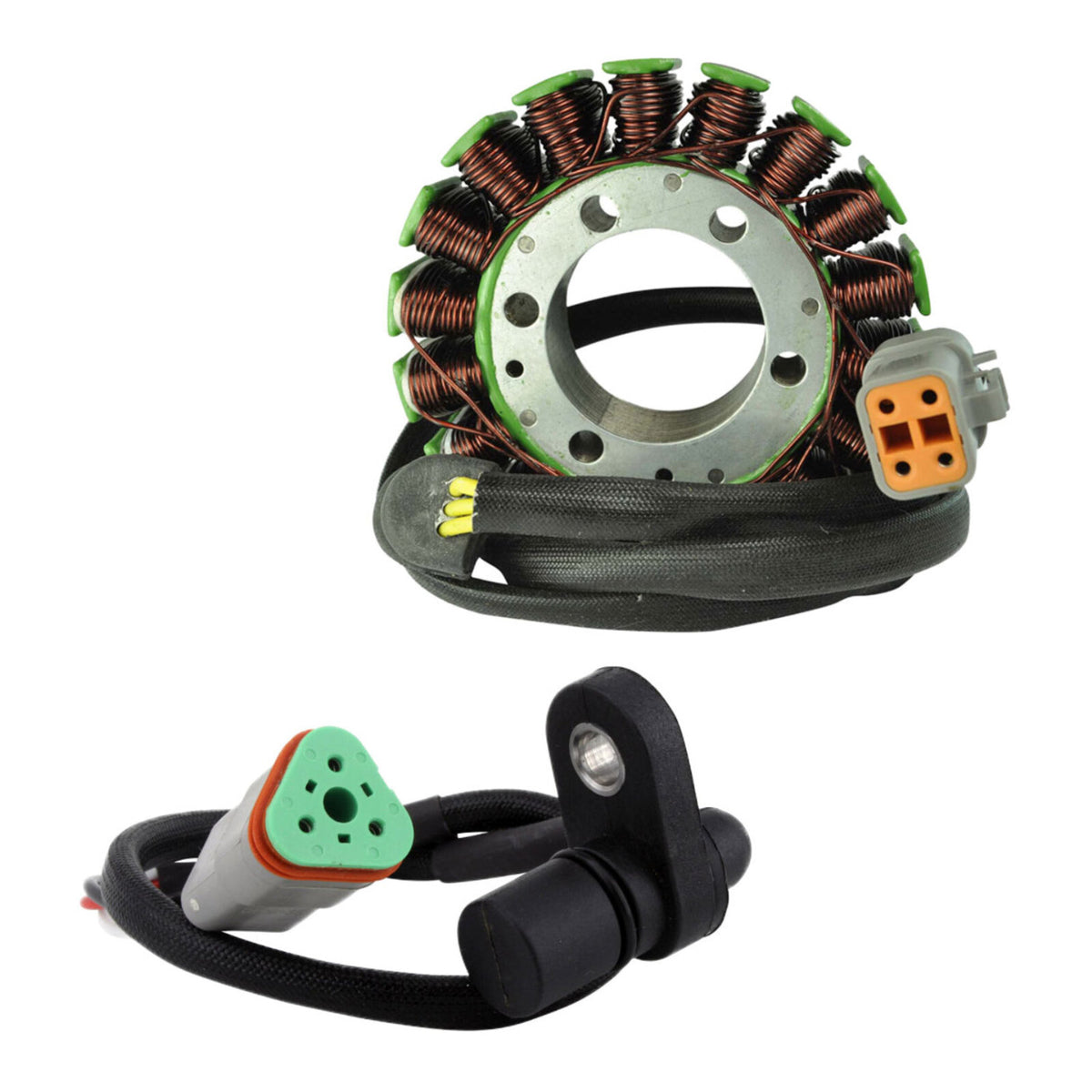

Brand new aftermarket stator and speed sensor kit.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.
- All products are tested before shipping.
Stator Features:
- High-grade lamination materials.
- High-grade copper windings, resistant to temperatures up to 200°C.
- Connector included.
- Rubber grommet included.
Before Installing the New Stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator/rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
The stator may use a different wire colour code from the original. All wires are installed in the correct order. Do not change the wiring configuration. This stator is designed as a direct plug-in replacement.
Always use thread-locking compound when installing the stator. If the stator includes a pickup coil, ensure the air gap is correctly adjusted. Set it as close as possible, but no less than 0.010 inches.

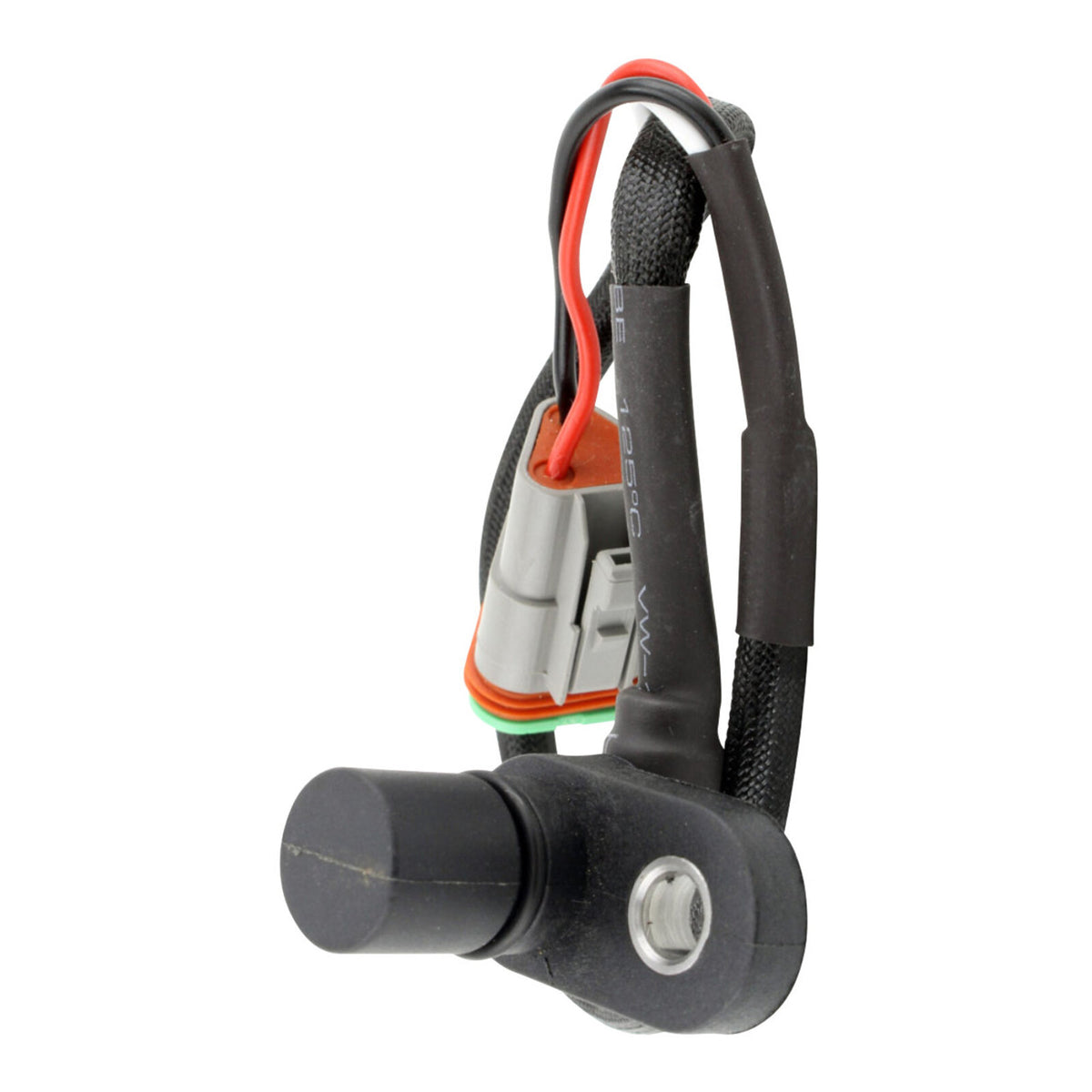

Speed Sensor:
Direct replacement for the original unit.
Warning: Risk of electric shock. Disconnect the battery before servicing. Installation should be carried out by a qualified technician to avoid malfunction.
Stator Dimensions:
- Interior diameter: 41 mm
- Exterior diameter: 104 mm
- Thickness: 30 mm
- Stator-to-grommet wire length: 140 mm
- Grommet-to-plug wire length: 850 mm
Other Specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of terminals: 3
- Alternator resistance: Yellow wire to yellow wire: 0.4 ohms ±20%
Speed Sensor Dimensions:
- Width: 19 mm
- Length: 50 mm
- Height: 37 mm
- Wire length: 350 mm

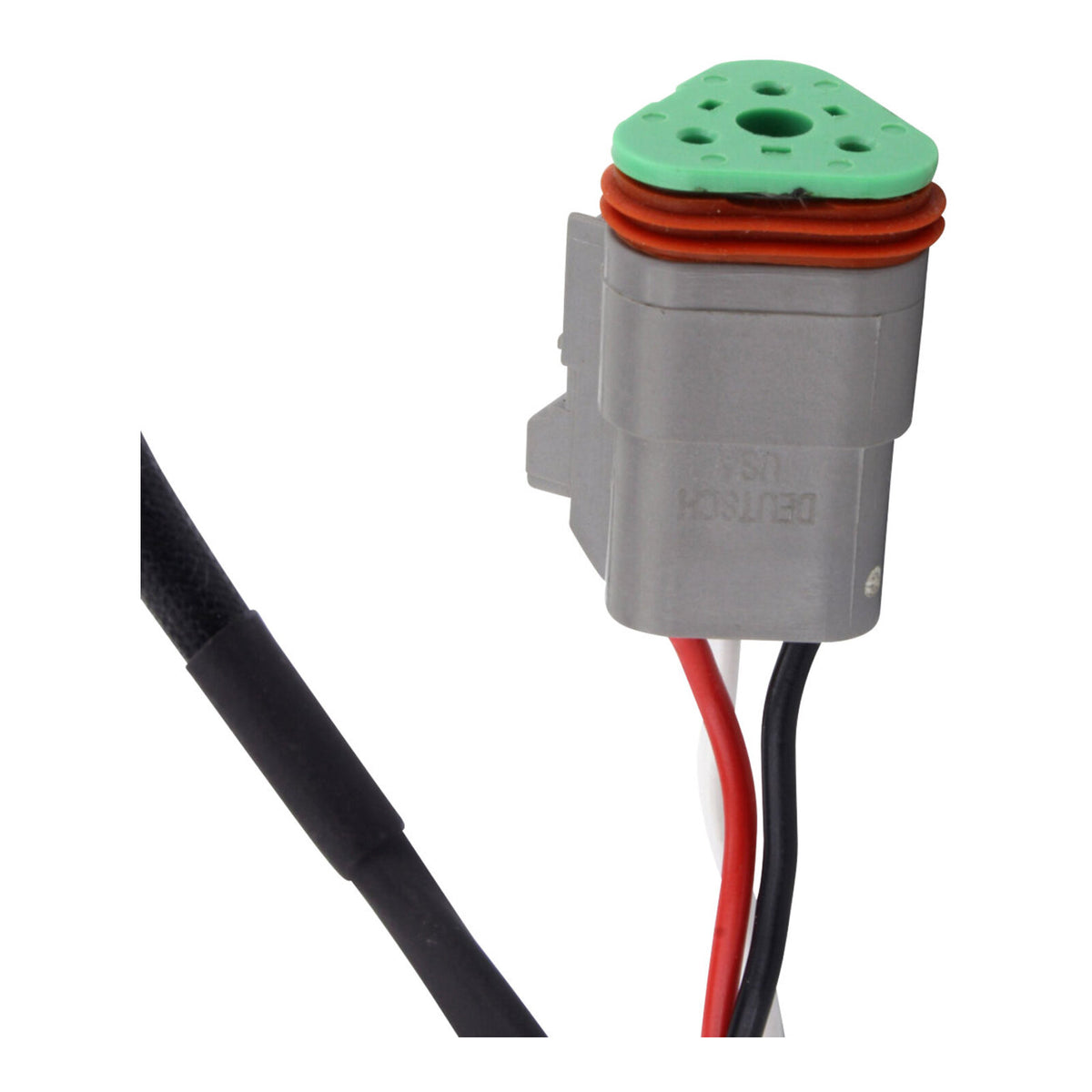

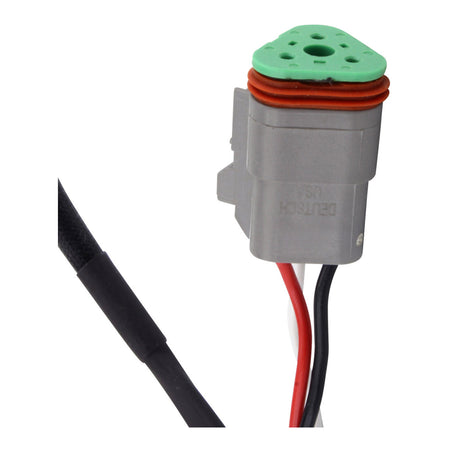

- Number of plugs: 1
- Number of terminals: 3
