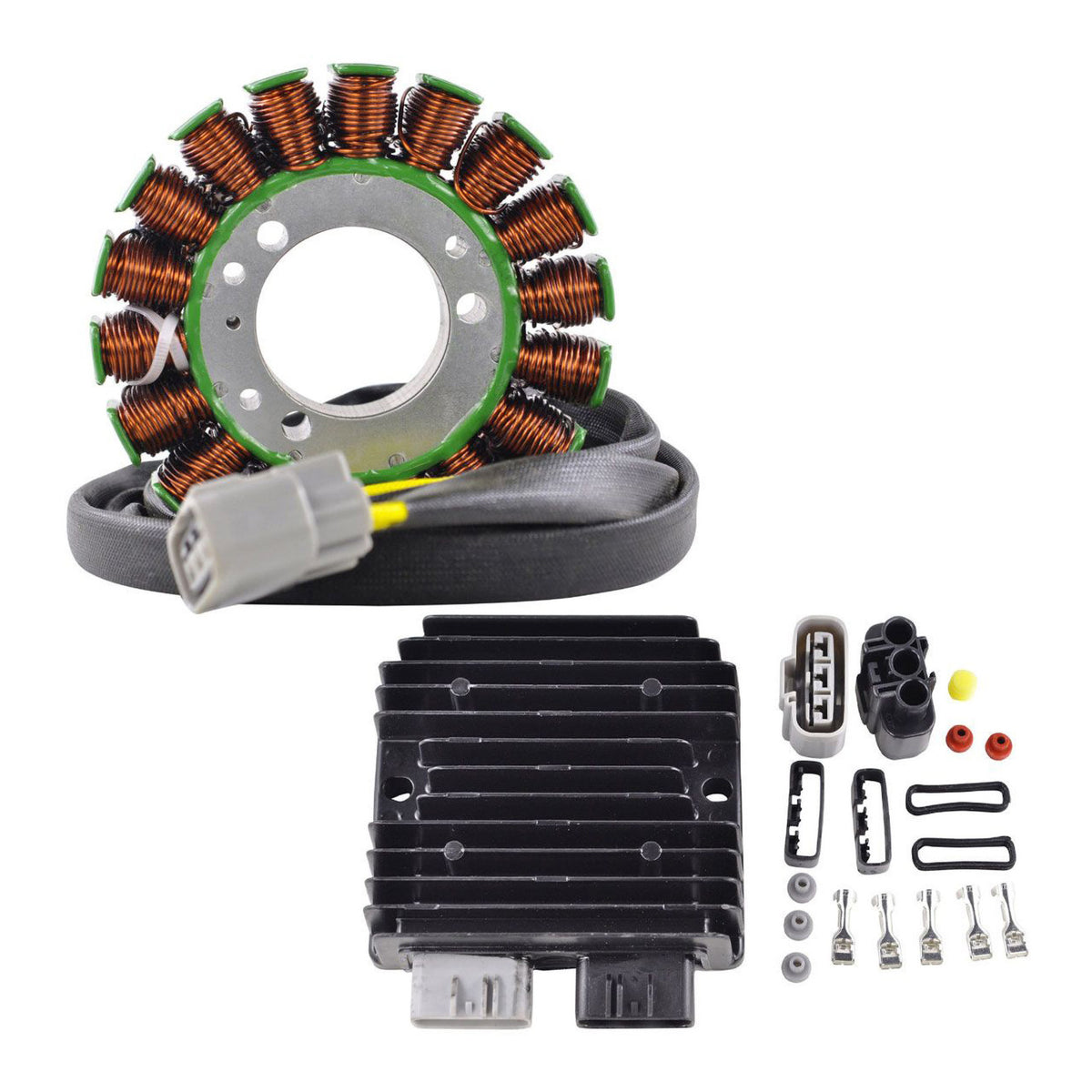

STATOR KIT + MOSFET REGULATOR (RMS900-107068)

Brand new aftermarket Stator + Voltage Regulator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• All shipped products are tested

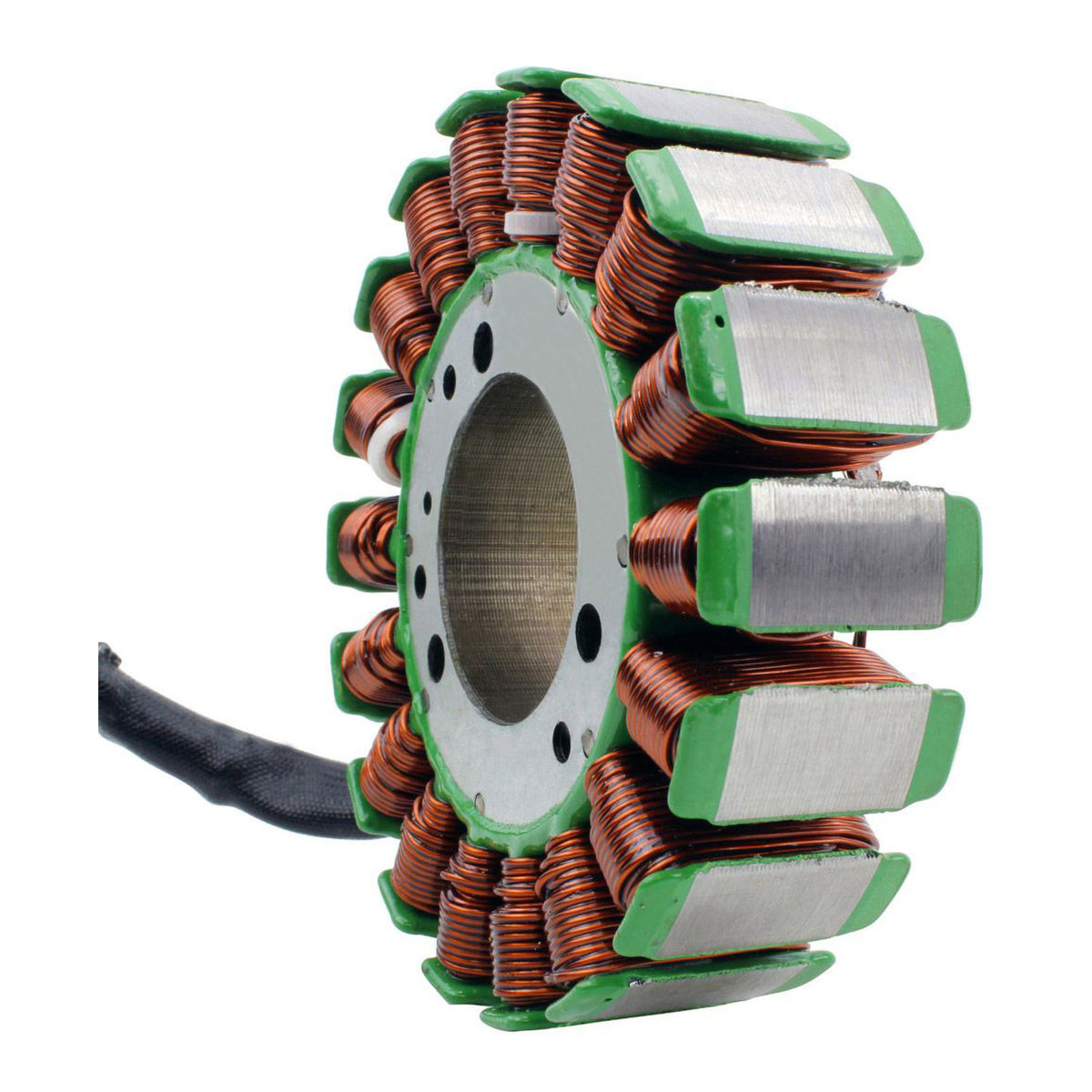

Stator

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included

What are the advantages of the MOSFET Technology?

• Runs much cooler than the traditional Shunt voltage regulator rectifier
• Less load on the stator, less work, less fuel is used and you save
• The power charging your battery is steadier and smooth
• Extends the battery’s life and cold-cranking capacity
• Removes stator load resulting in more engine power
• Optimize power delivery by switching the stator coils on or off

Stator Dimensions:

• Interior diameter: 42 mm
• Exterior diameter: 115 mm
• Thickness: 24 mm
• Length of wires stator to grommet: 150 mm
• Length of wires grommet to plug: 1470 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 18
• Alternator: Yellow to Yellow = 0.4 ohms +/-20%

Regulator Dimensions:

• Width: 120 mm
• Length: 111 mm
• Height: 35 mm
• Fixation holes centre to centre: 94 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 5

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
