STATOR & MOSFET REG KIT ASSTD TRI RFR FITMEN (RMS900-107634)

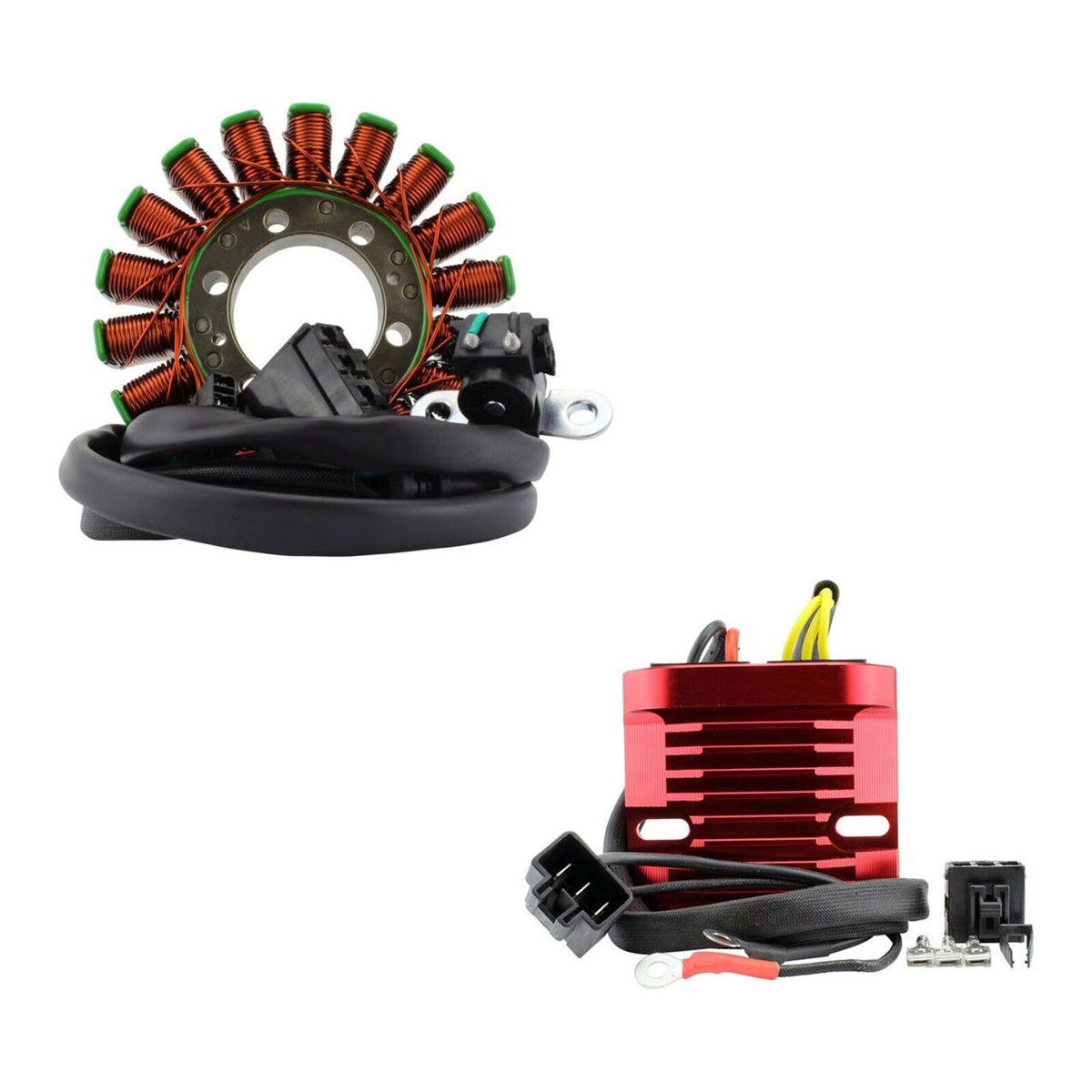

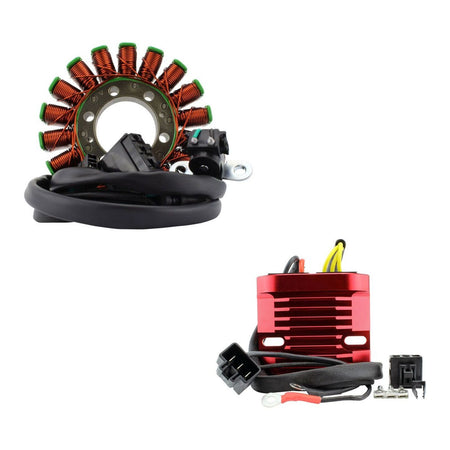

Brand new aftermarket Generator Stator and RMSTATOR Red CNC-Machined Aluminium MOSFET Regulator kit.

• Direct replacement for the original unit.
• Plug-and-play, direct fit and easy installation.
• All products are tested before shipping.

Product images are accurate. If in doubt, compare the items with your original parts.

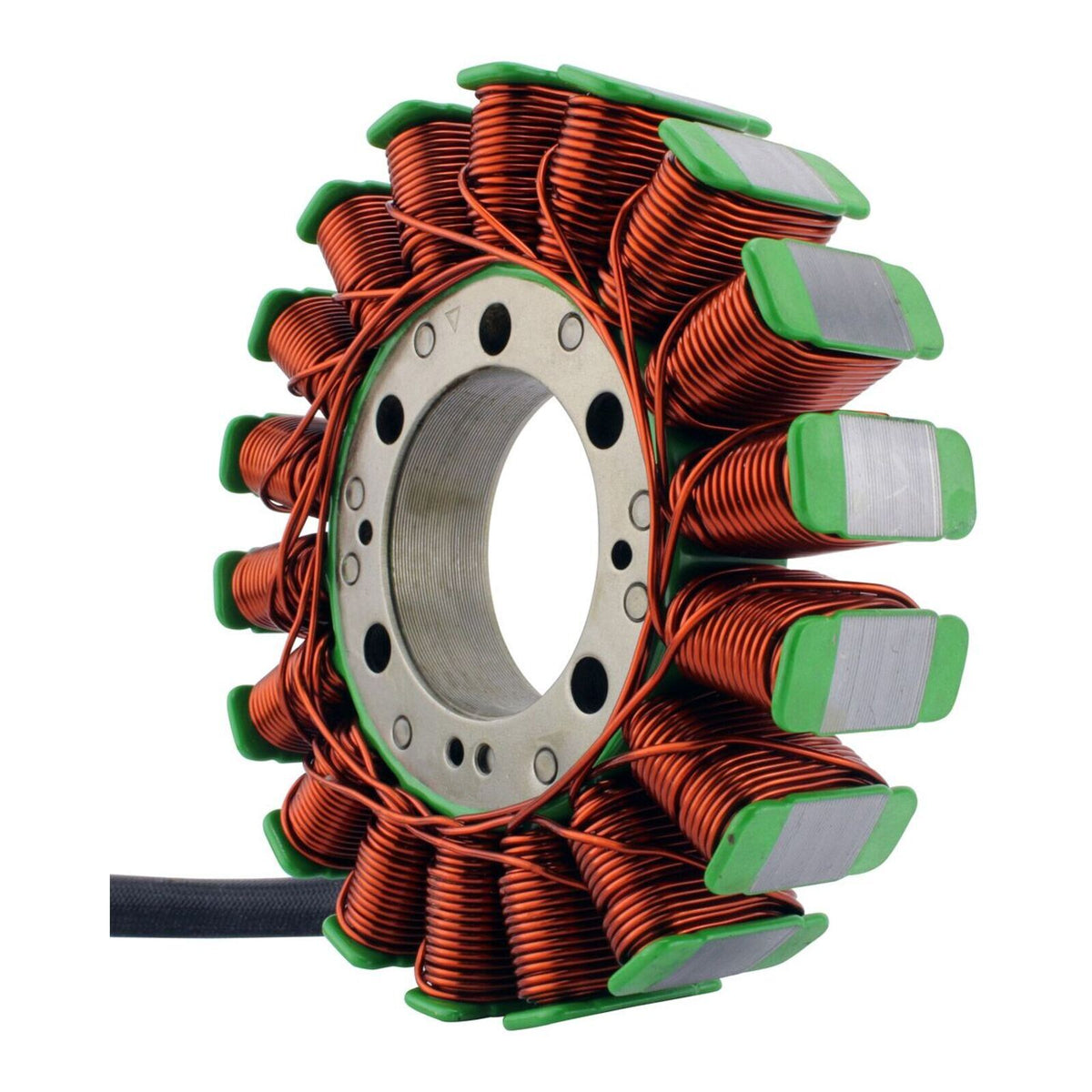

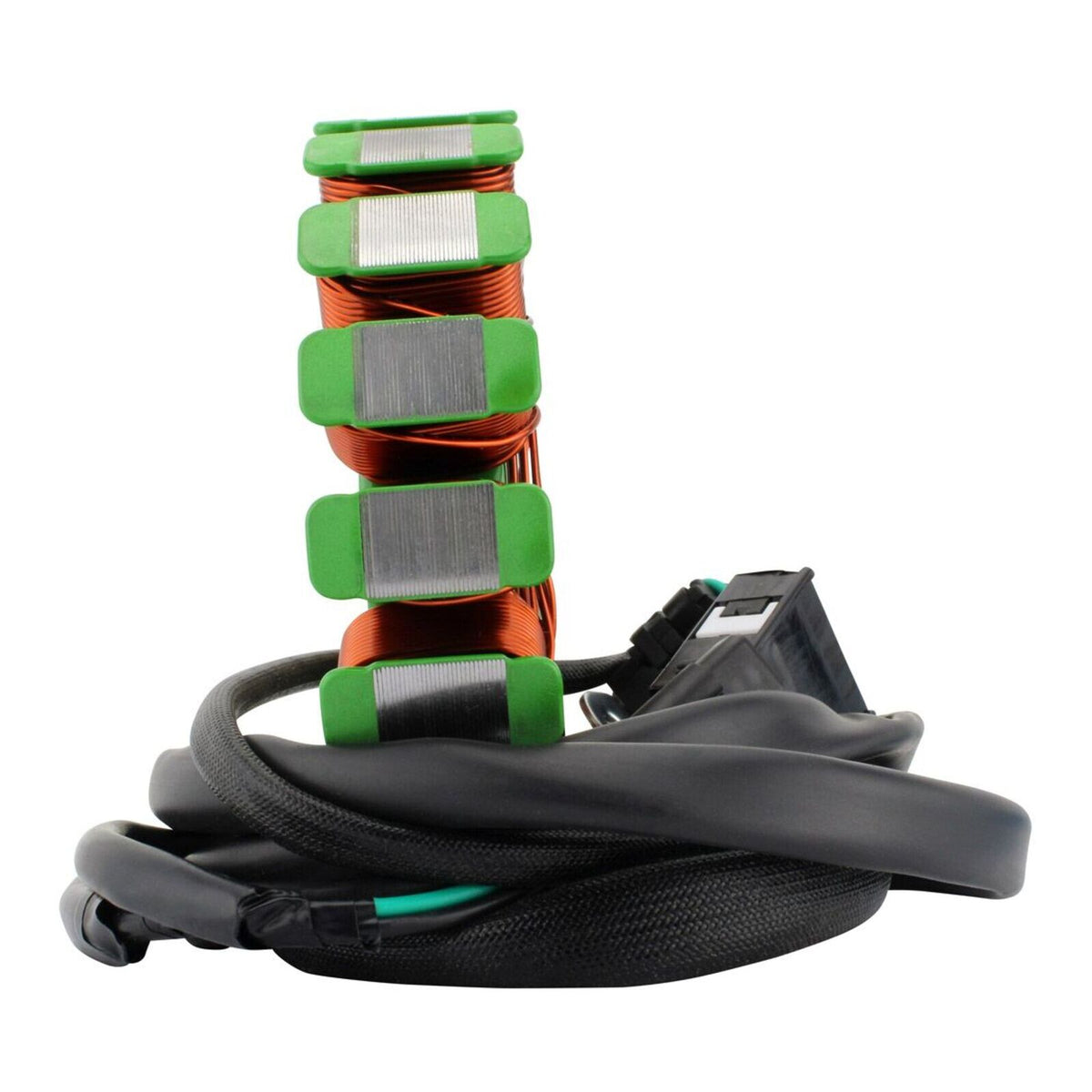

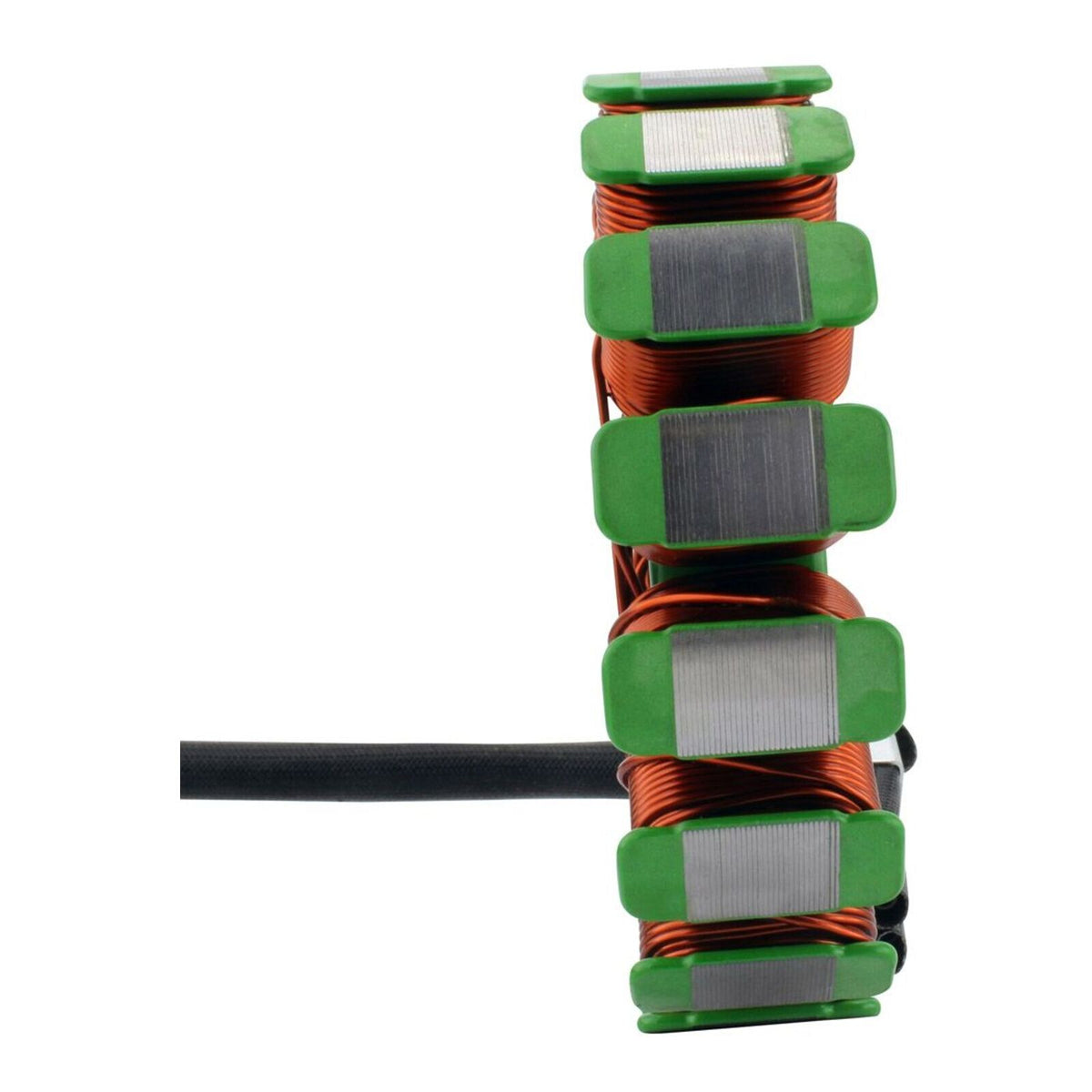

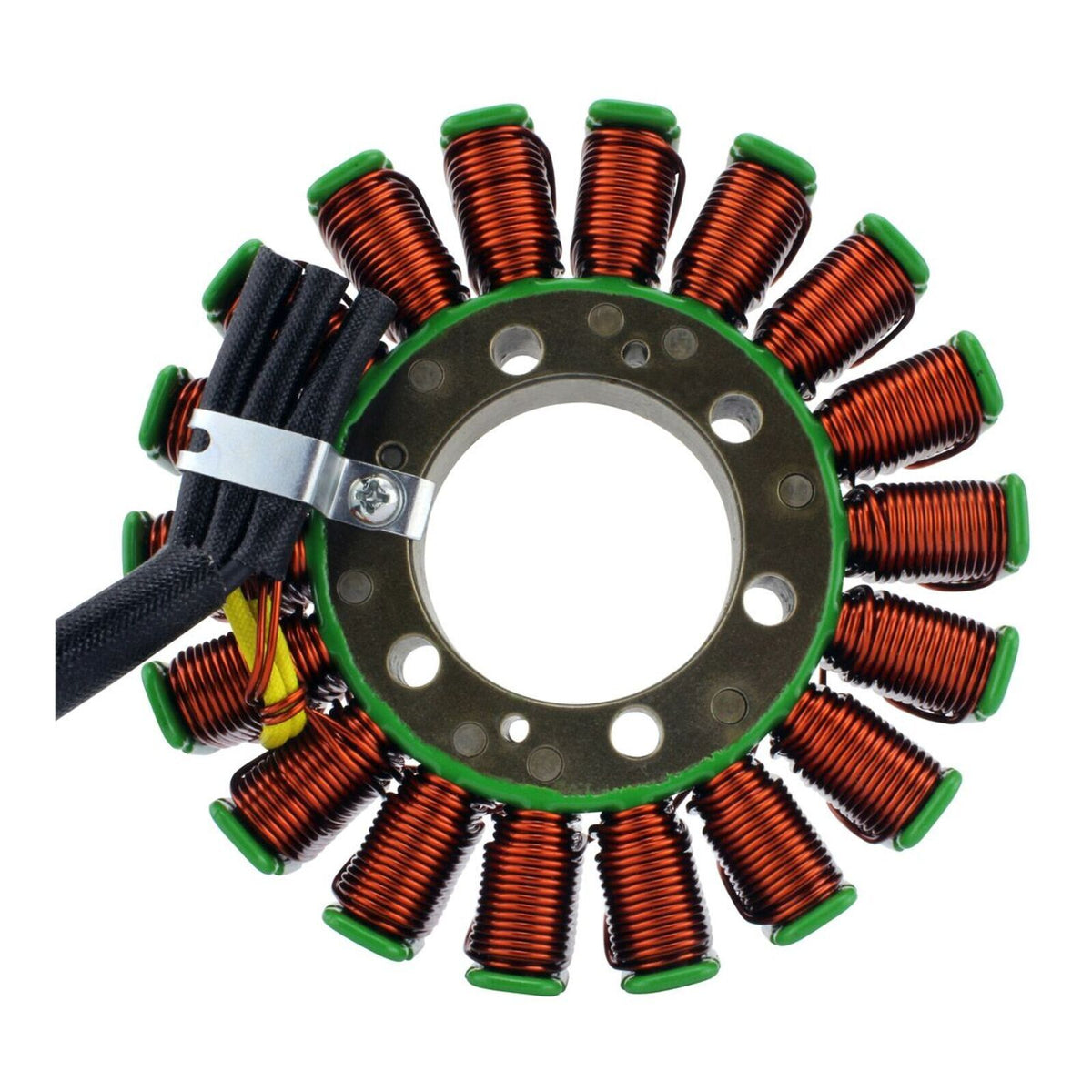

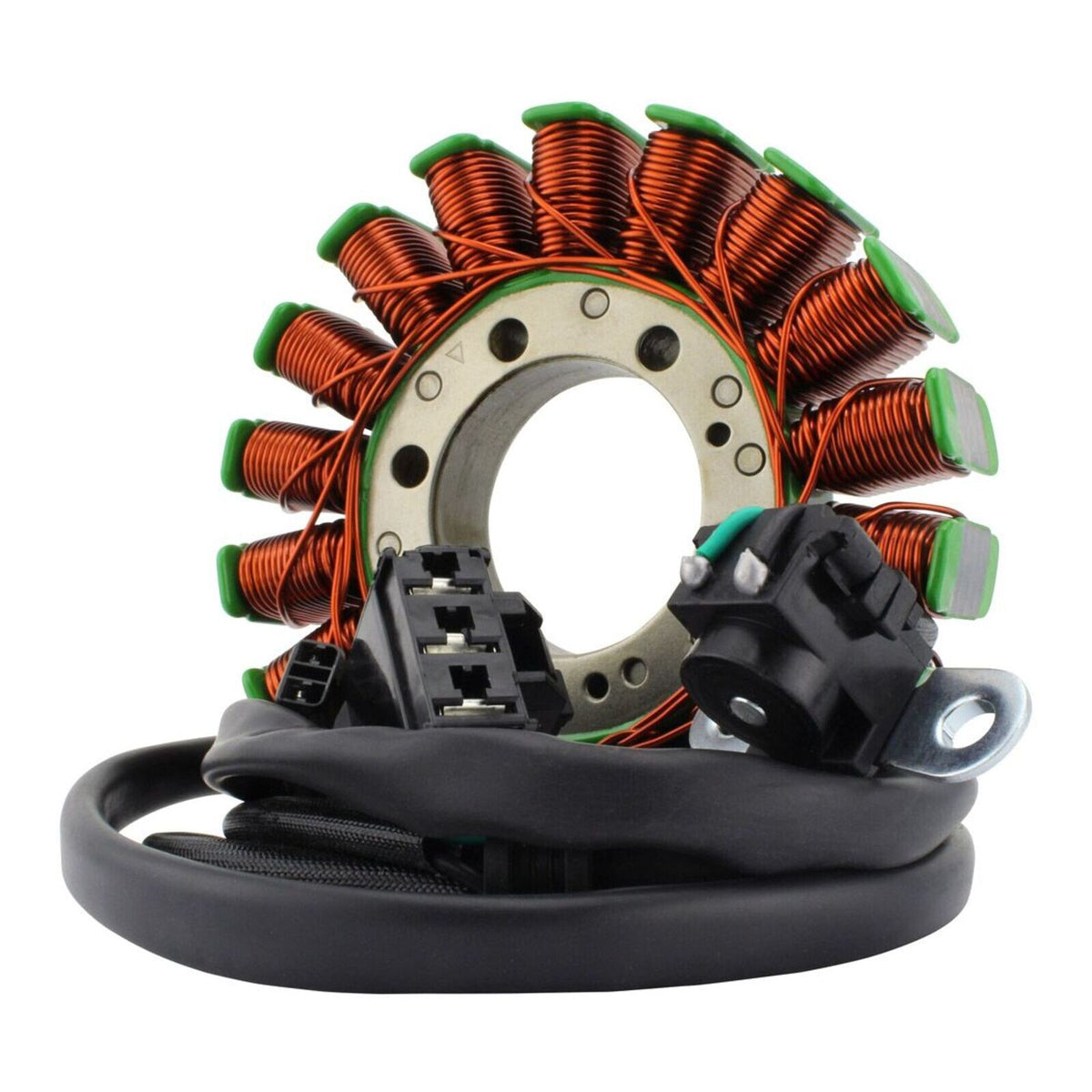

Generator Stator

• High-grade lamination materials.
• High-grade copper windings, resistant to temperatures up to 200°C.
• Pickup/pulsar coil included.

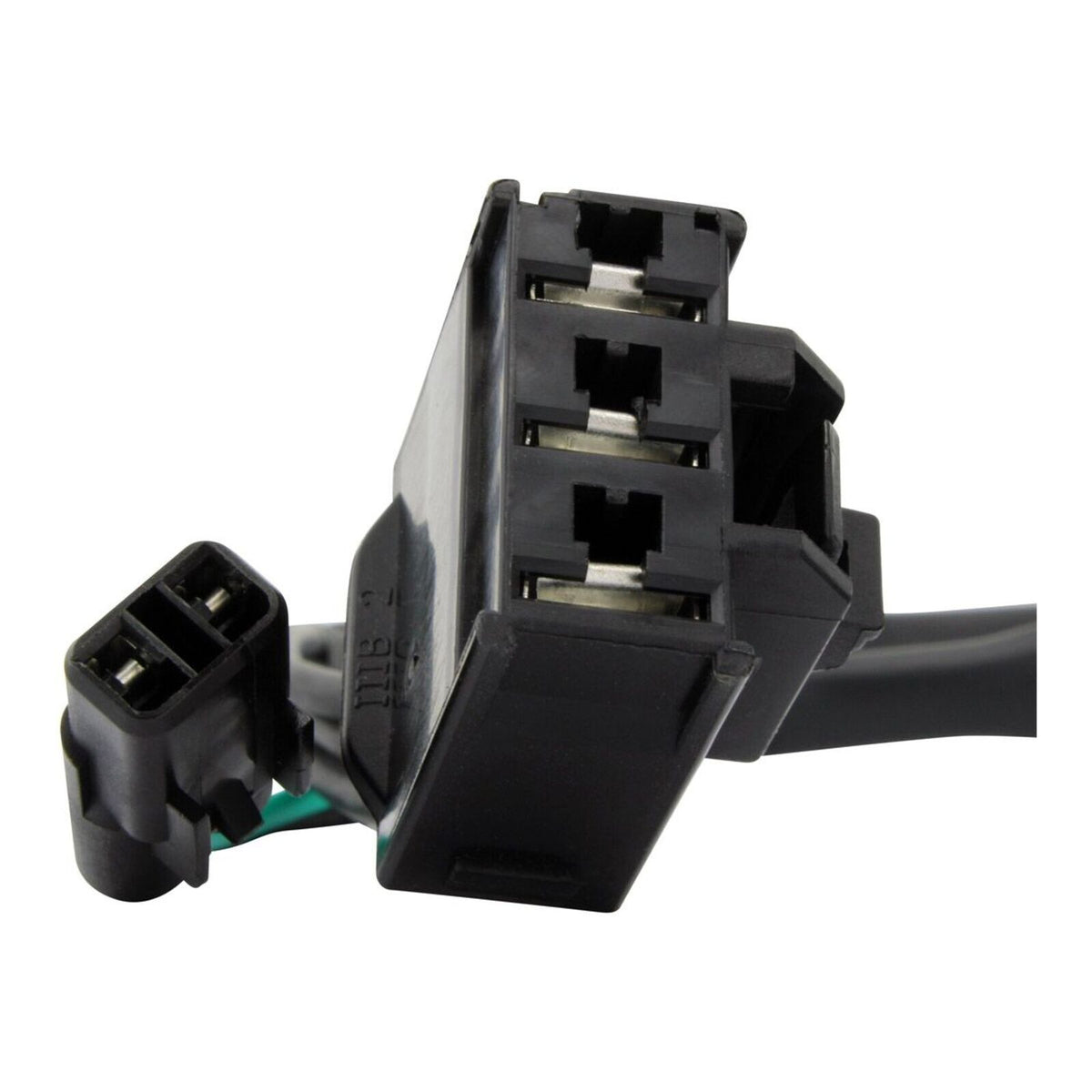

• Connectors included.
• Rubber grommet included.

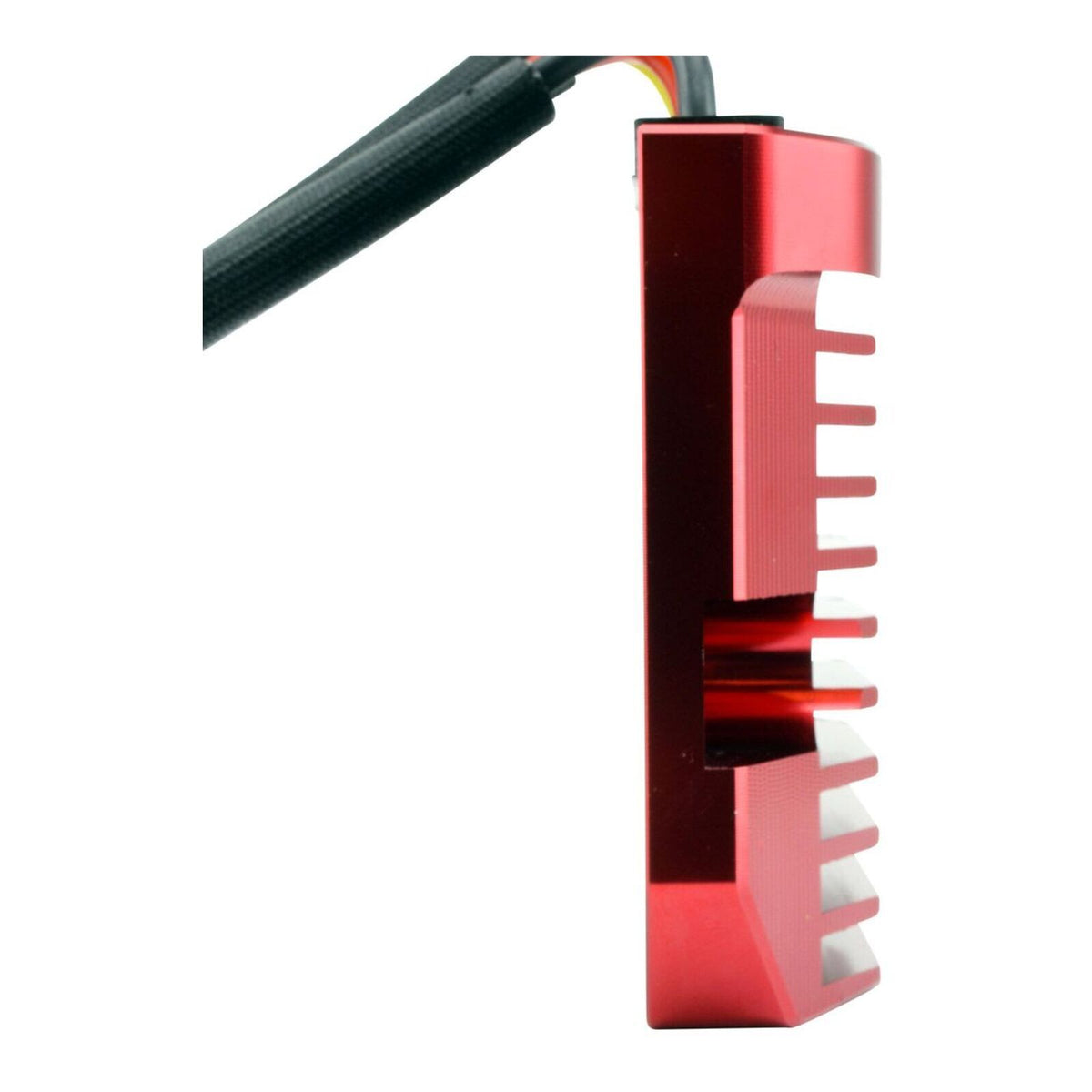

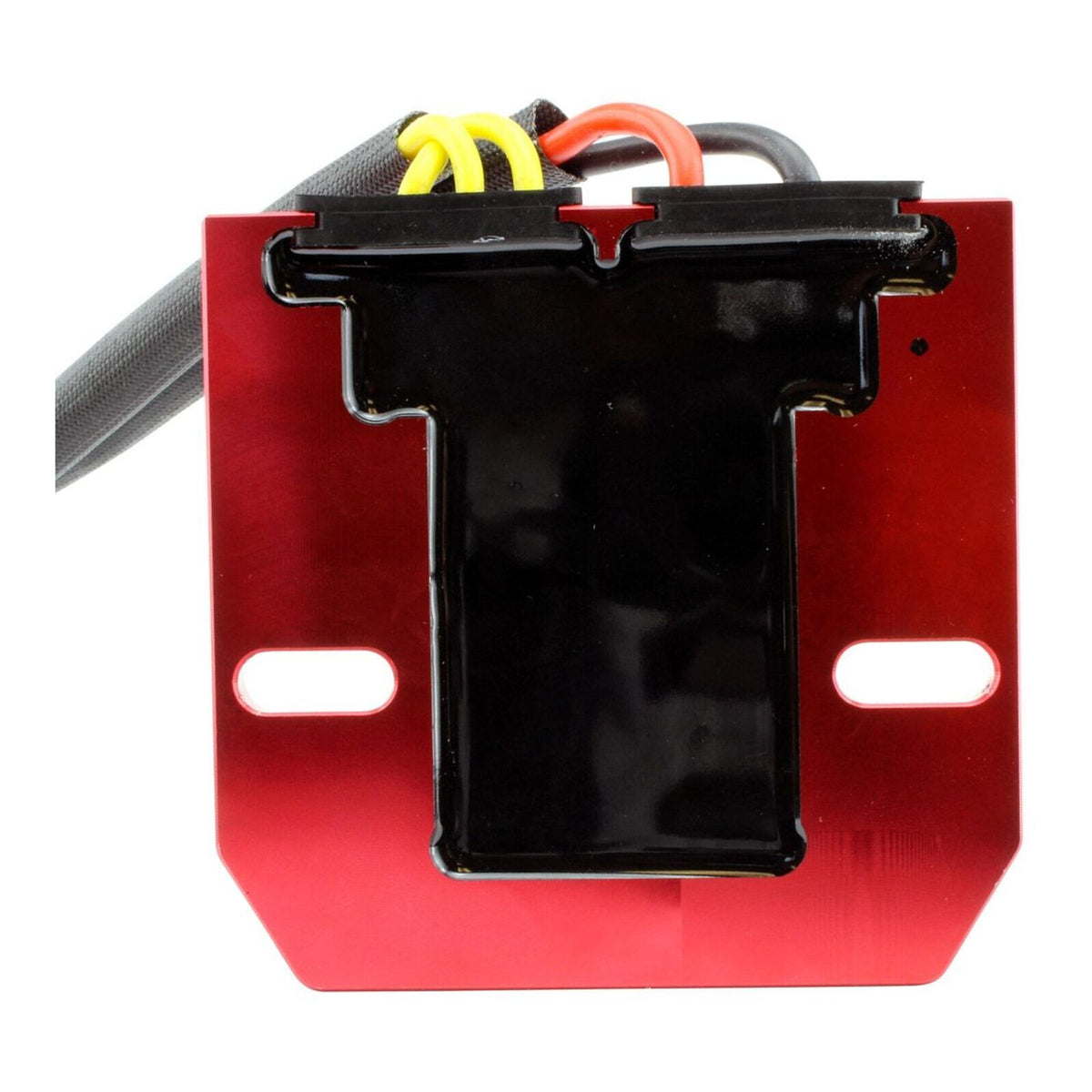

RMSTATOR Red Machined Aluminium MOSFET Regulator

The red CNC-machined aluminium MOSFET voltage regulator is designed to improve heat dissipation in powersports charging systems. After 10 minutes of use, its billet aluminium heatsink runs up to 33% cooler than standard cast regulator housings. Equipped with MOSFET regulation technology, it is suitable for three-phase permanent-magnet charging systems.

• Runs cooler than OEM diode-style regulators.
• Overheat protection temporarily switches the regulator off to cool down instead of burning out.
• Direct replacement for the original unit.
• Plug-and-play, direct fit and easy installation.
• Quality exceeds OEM equipment.
• Improved heatsink and charging capabilities.
• Higher-grade electrical components.
• All products are tested before shipping.

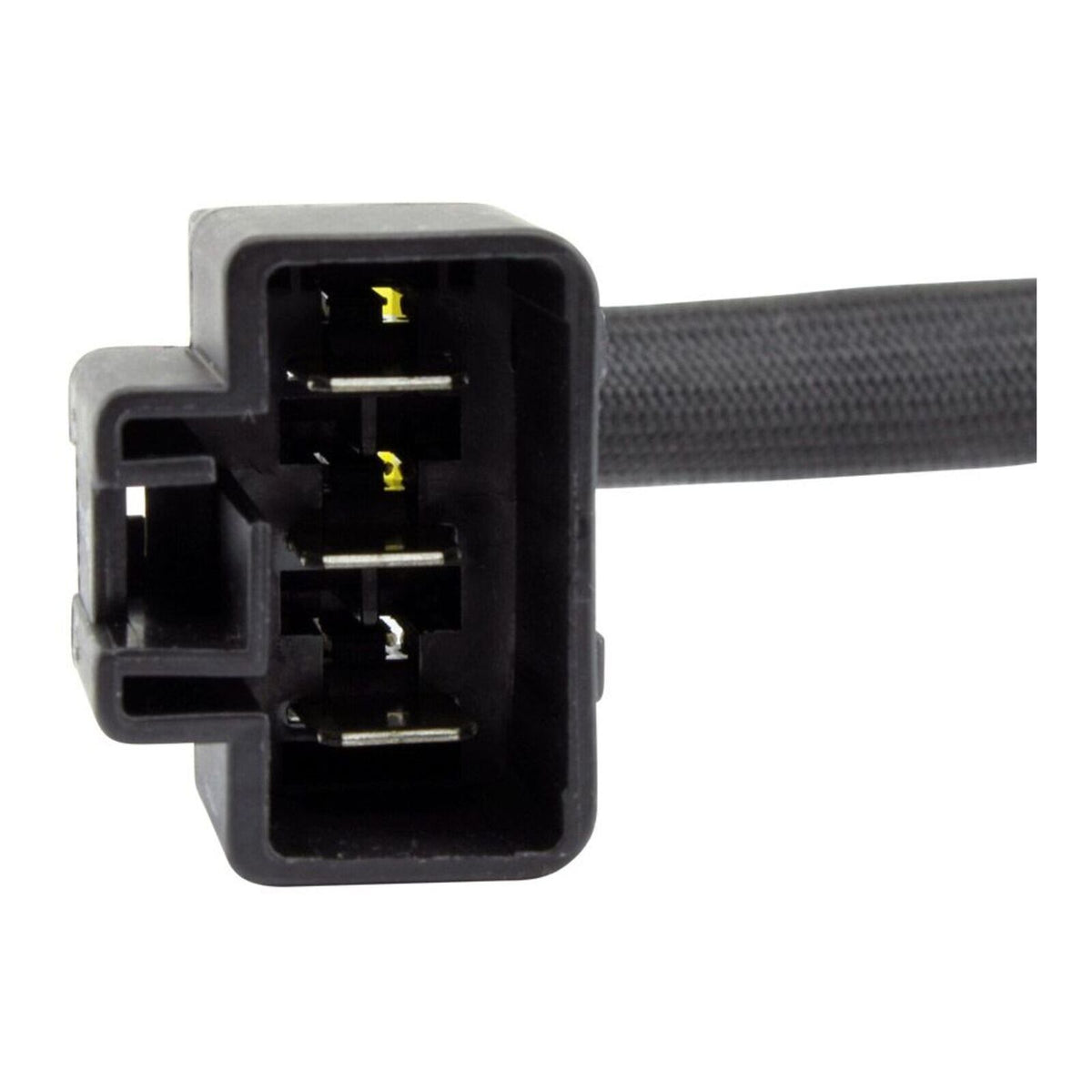

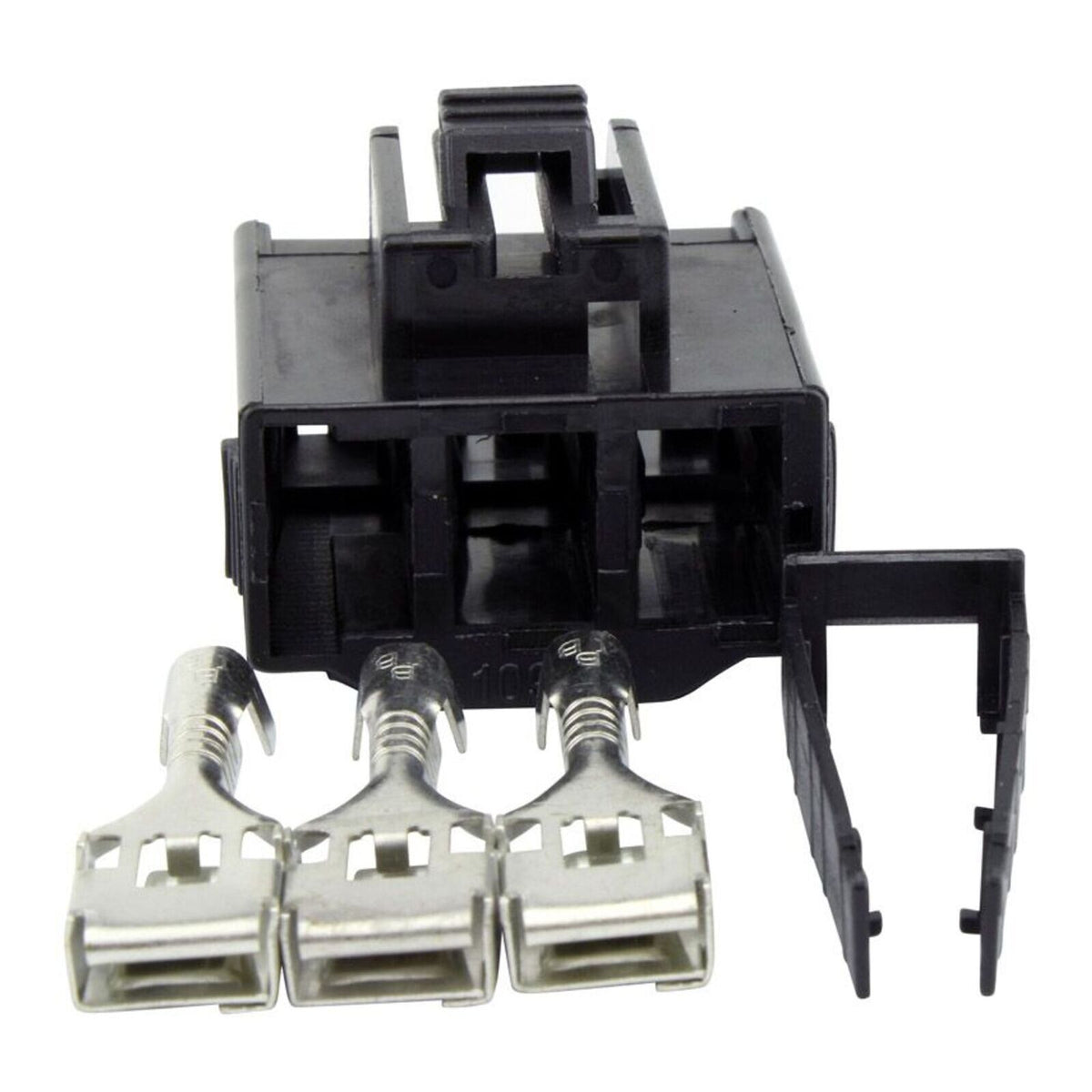

The opposite connector (main harness side) is included. Original connectors can become melted, corroded or defective, causing recurring electrical issues.

Why use MOSFET technology?

• Runs cooler: Operates at lower temperatures than traditional shunt voltage regulator/rectifiers.
• Saves fuel: Reduces the load on the stator, requiring less engine work and fuel.
• Smoother charging: Provides steadier, smoother power to the battery.
• Extended battery life: Helps extend battery life and cold-cranking capacity.
• More engine power: Reduces stator load, allowing more engine power.
• Optimised performance: Advanced design lowers operating temperatures for improved longevity and performance. Power delivery is optimised by switching stator coils on or off.

Before installing the new stator:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on the stator and regulator/rectifier.
• Check and repair any melted wiring.
• Apply high-temperature dielectric grease to all connectors.

The stator may have a different wire colour code from the original part. All wires are installed in the correct order; do not change the wiring configuration. This stator is designed as a direct plug-in replacement.

Always use thread-locking compound when securing the stator. If the stator includes a pickup coil, check the air gap during installation. Set it as close as possible, but no less than 0.010".

Before installing the new MOSFET voltage regulator/rectifier:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on the stator and regulator/rectifier.
• Check and repair any melted wiring.
• Apply high-temperature dielectric grease to all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Generator Stator Dimensions:

• Interior diameter: 42 mm.
• Exterior diameter: 115 mm.
• Thickness: 18 mm.
• Stator-to-grommet wire length: 240 mm.
• Grommet-to-plug wire lengths: 190 mm and 880 mm.
• Pickup coil wire-to-grommet length: 270 mm.

Other Specifications:

• Number of wires: 5.
• Number of plugs: 2.
• Number of pins: 5.
• Number of poles: 18.
• Alternator resistance (black to black): 0.6 ohms ±20%.
• Alternator resistance to ground: O.L.
• Pickup coil resistance (green to black): 240 ohms ±20%.

RMSTATOR Red Machined Aluminium MOSFET Regulator Dimensions:

• Width: 95 mm.
• Length: 90 mm.
• Height: 30 mm.

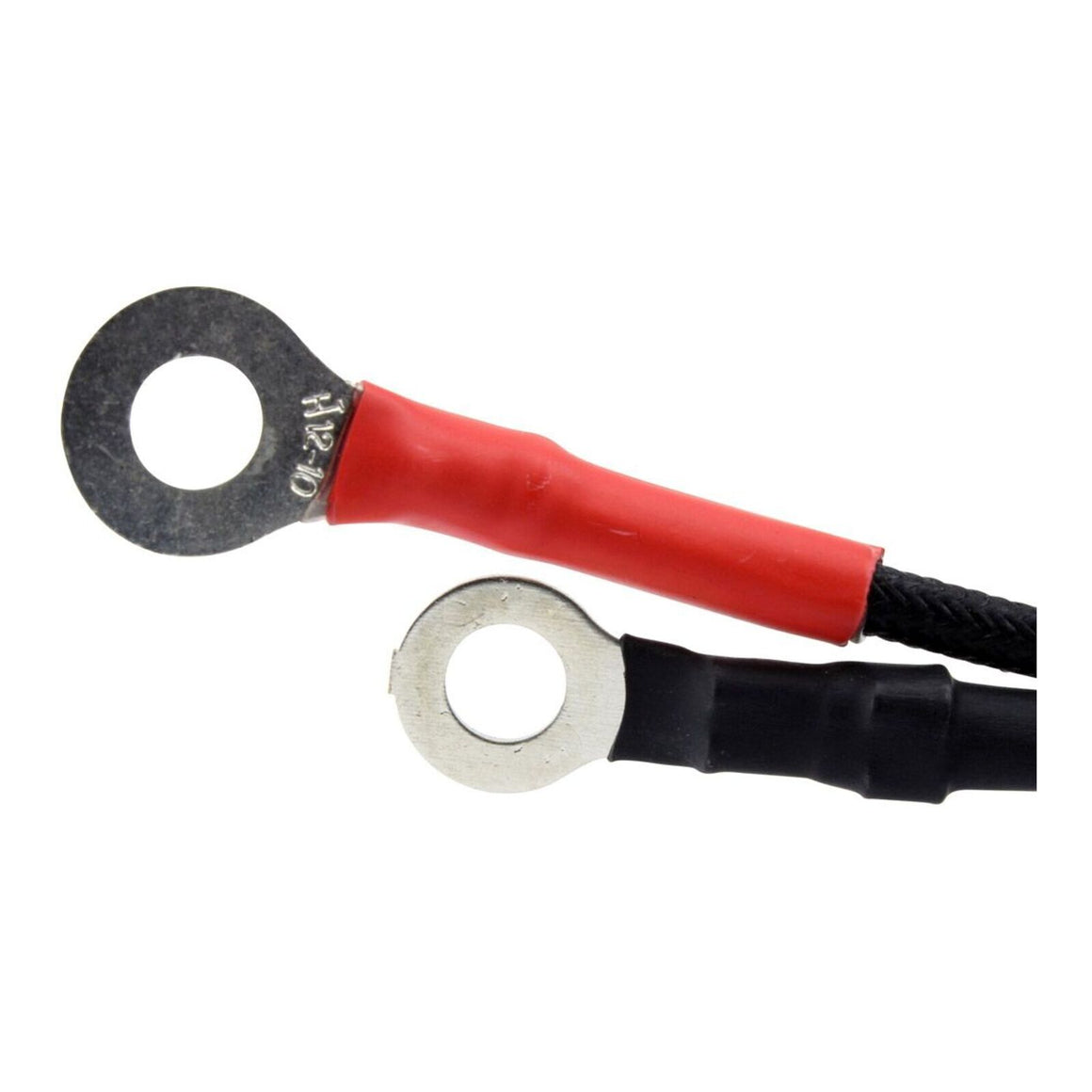

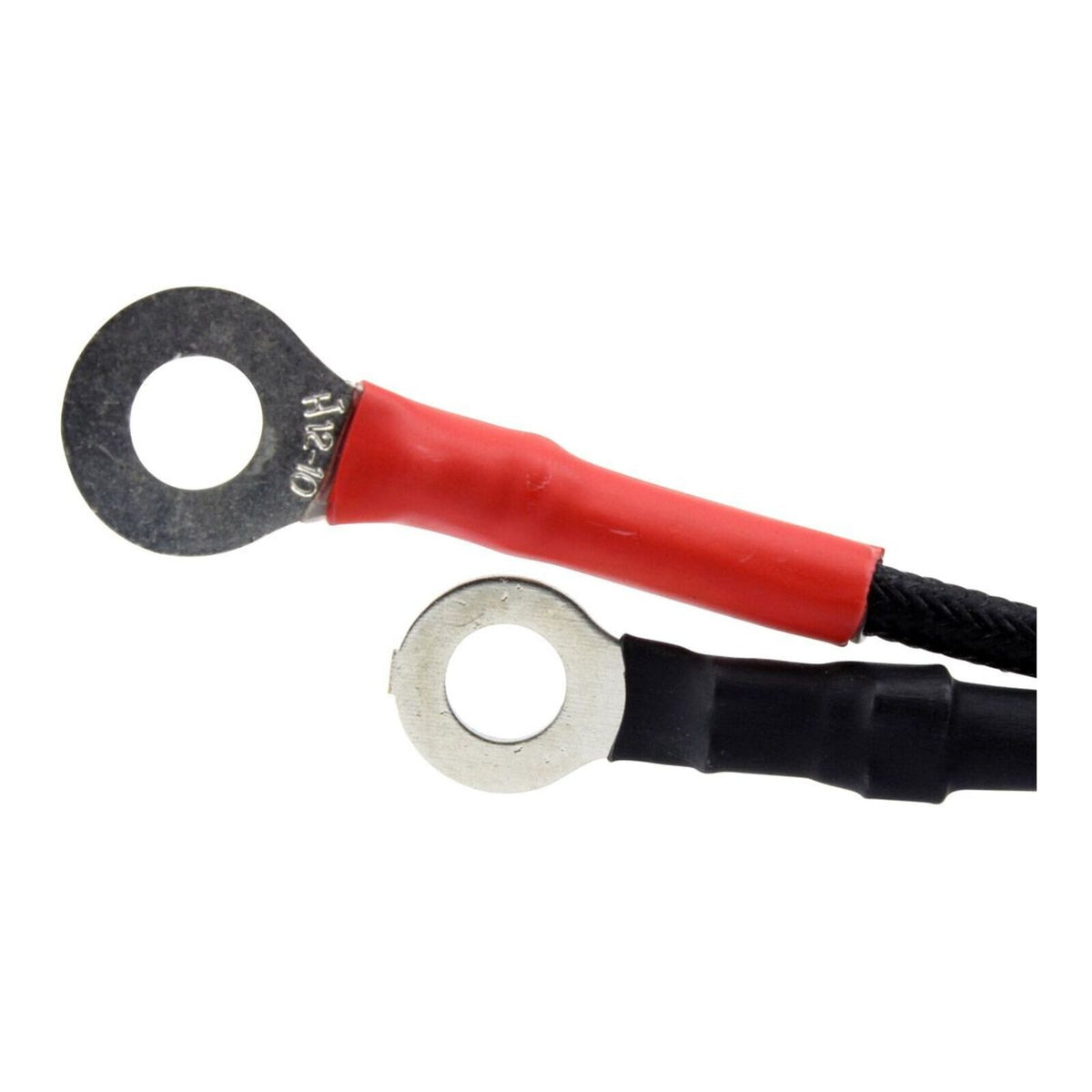

• Wire lengths: 1,010 mm and 350 mm.
• Mounting holes, centre-to-centre: 75 mm.

Other Specifications:

• Number of plugs: 2.
• Number of pins: 5.
• Number of wires: 5.
• Minimum charging voltage: 14.5 V ±0.5 V.
• Maximum charging current: 50 A / 500 W.
• Open-circuit voltage: Less than 15 V.
• Operating temperature: -20°C to 85°C.
