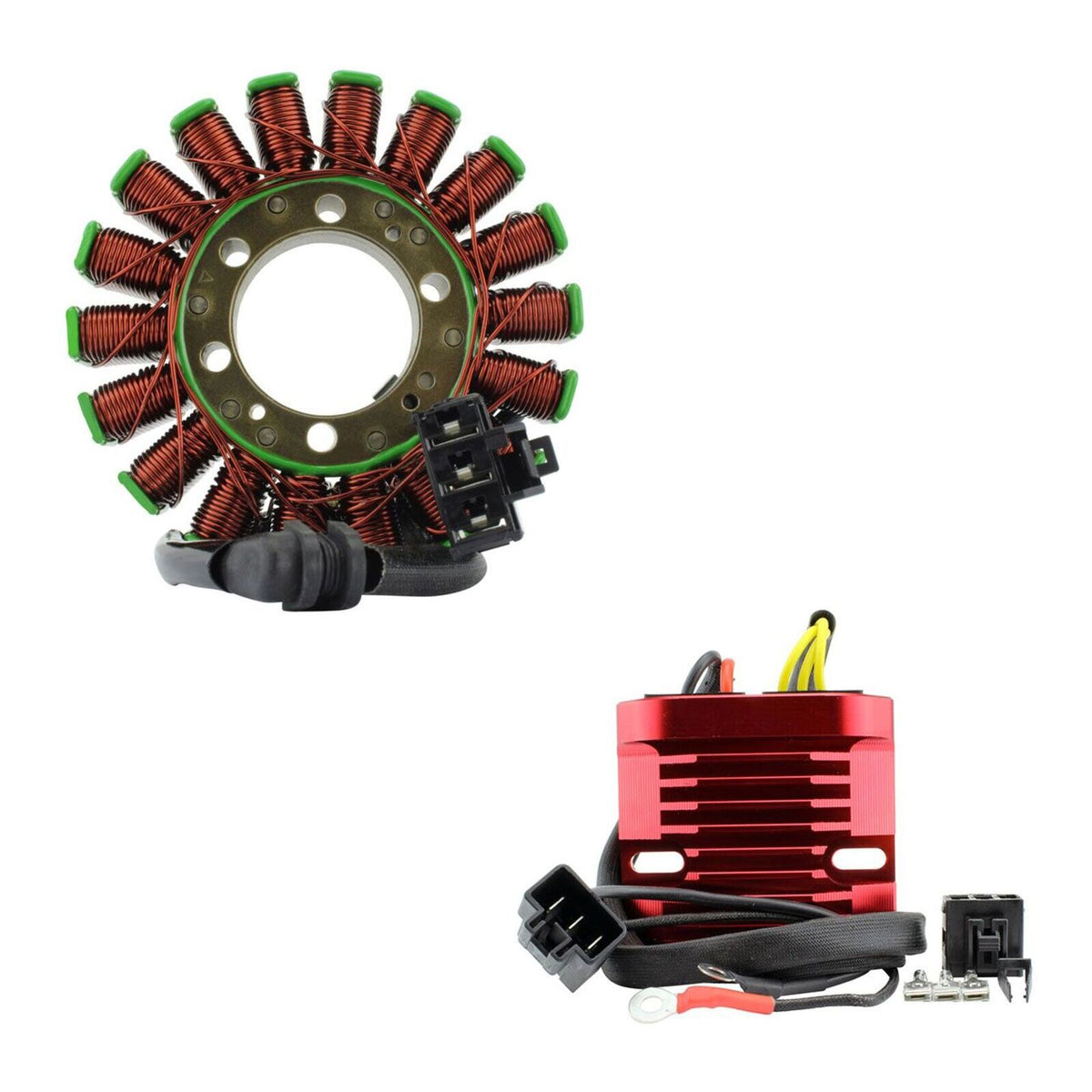

STATOR & MOSFET REG KIT ASSTD TRI RFR FITMEN (RMS900-107636)

Street Triple Standard

This part will only fit Street Triple Standard with a VIN HIGHER than 560477 and an engine number BETWEEN 616233 and 624372 or HIGHER than 626867. If your vehicle has a VIN HIGHER than 560477 and with an engine number LOWER than 616232 or BETWEEN 624373 and 626866, refer to RMS010-106948. If your vehicle has a VIN LOWER than 354281, please refer to RM01348. If your vehicle has a VIN BETWEEN 354282 and 560476, please refer to RM01389.

Street Triple R 2008 to 2020

This part will only fit Street Triple R with a VIN HIGHER than 560477 and an engine number BETWEEN 616233 and 624372 or HIGHER than 626867. If your vehicle does not correspond to the requirements above, refer to part # RMS010-106948.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY!

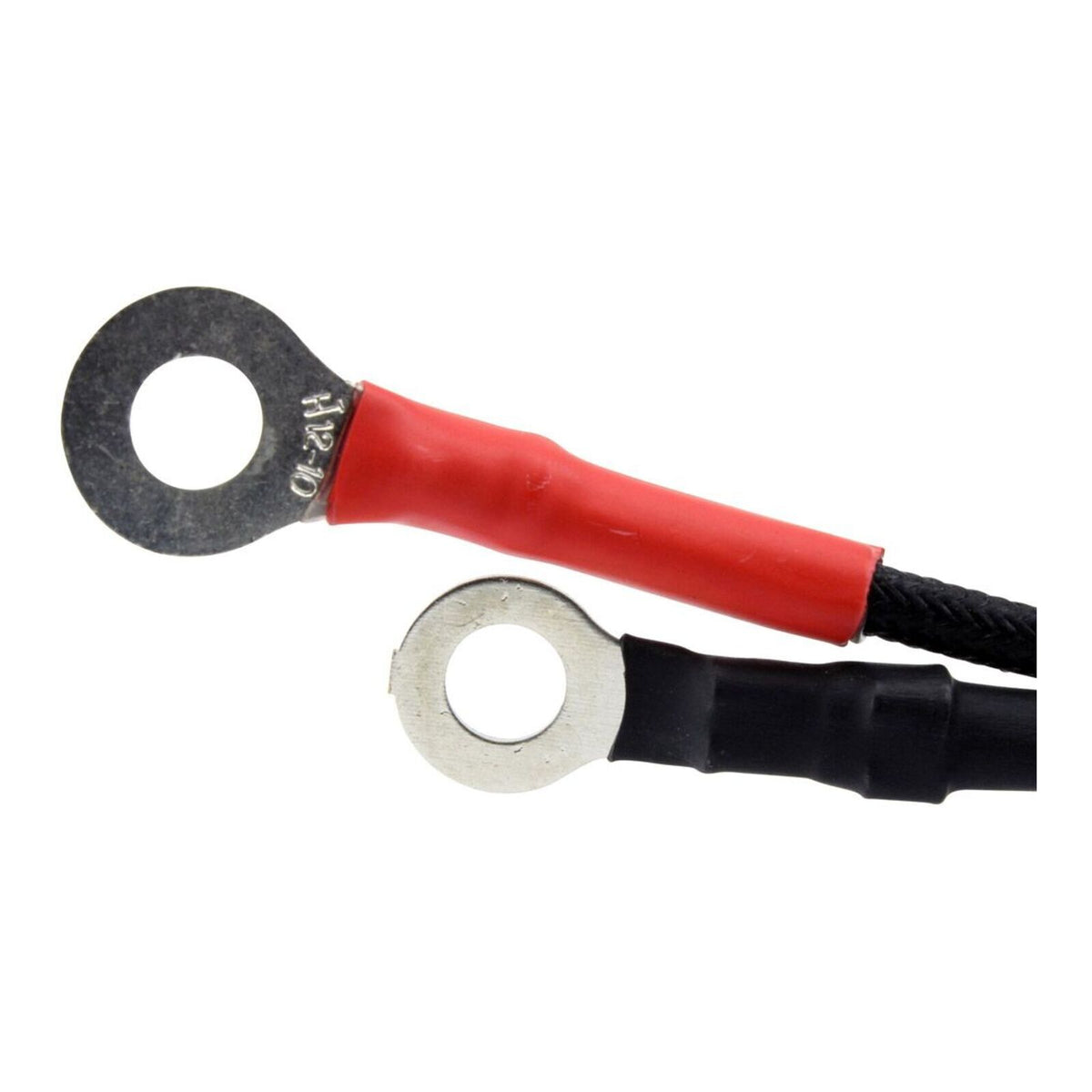

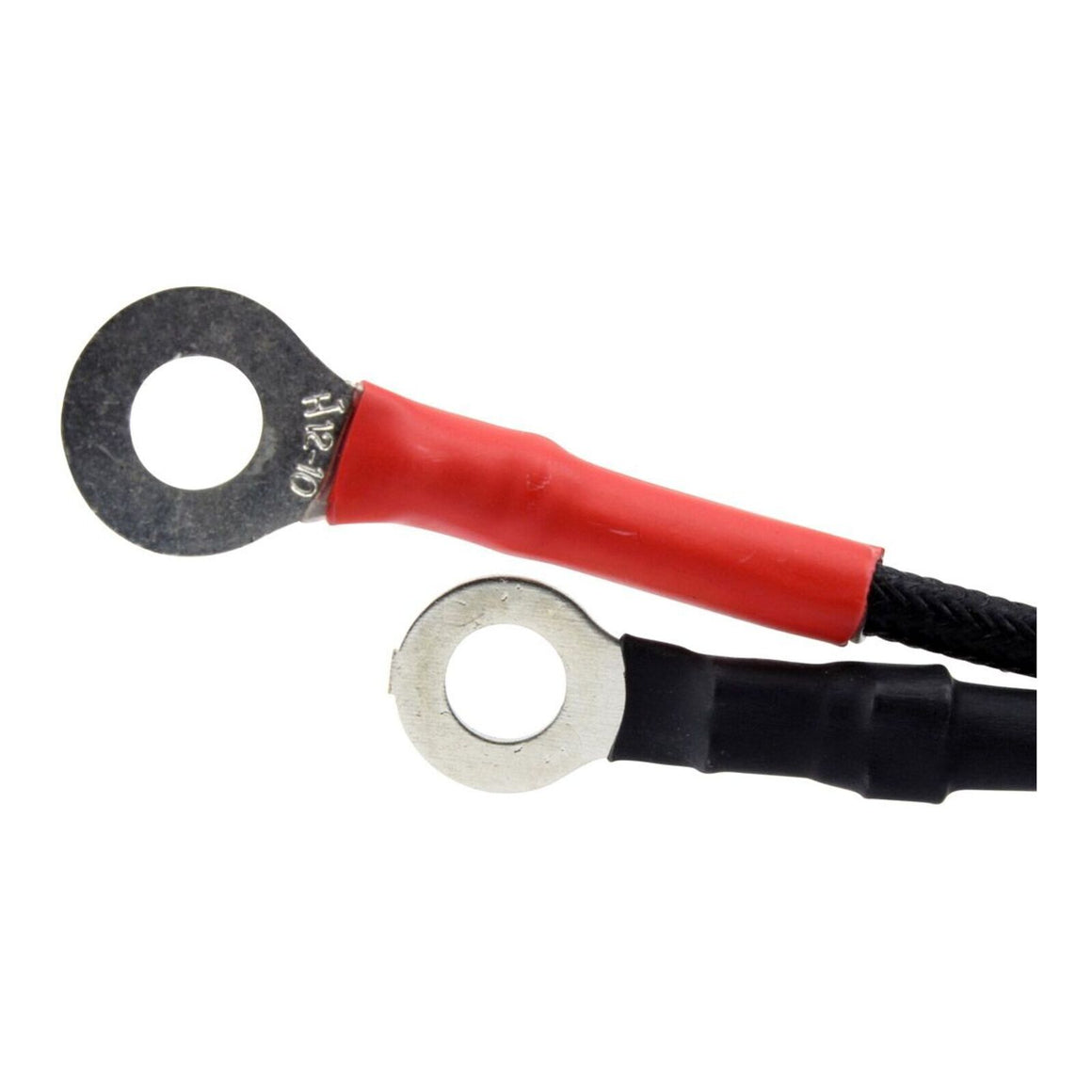

This special regulator bypasses the vehicle’s failure-prone wiring harness between the regulator and battery, and instead connects directly to the battery with ring terminals for the best possible connection. For Triumph fitments please check your stator to regulator connector as there were 2 versions used and select the correct one. Our possible part numbers are :

• RMS022-106222

• RM S022-107616

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Specifications:

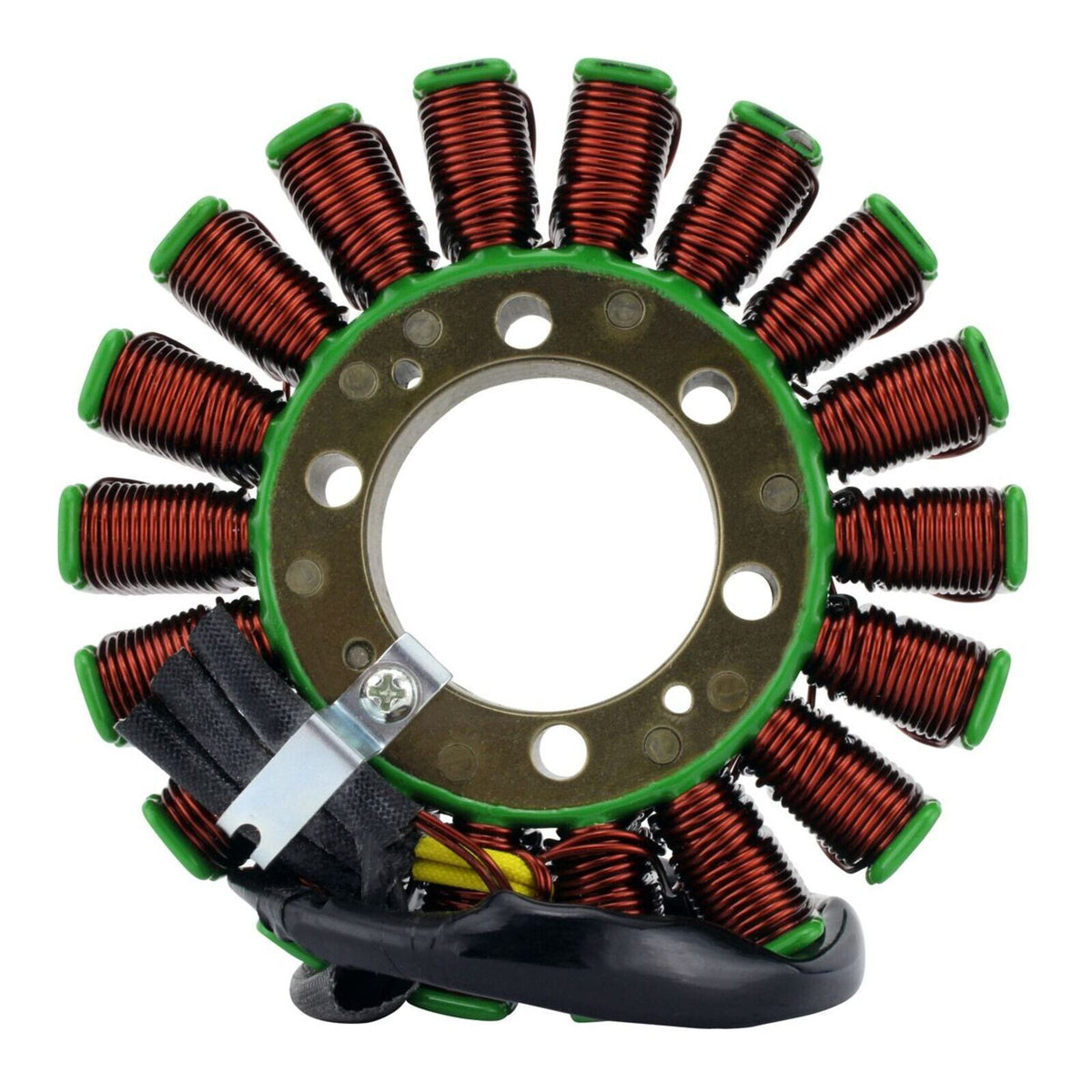

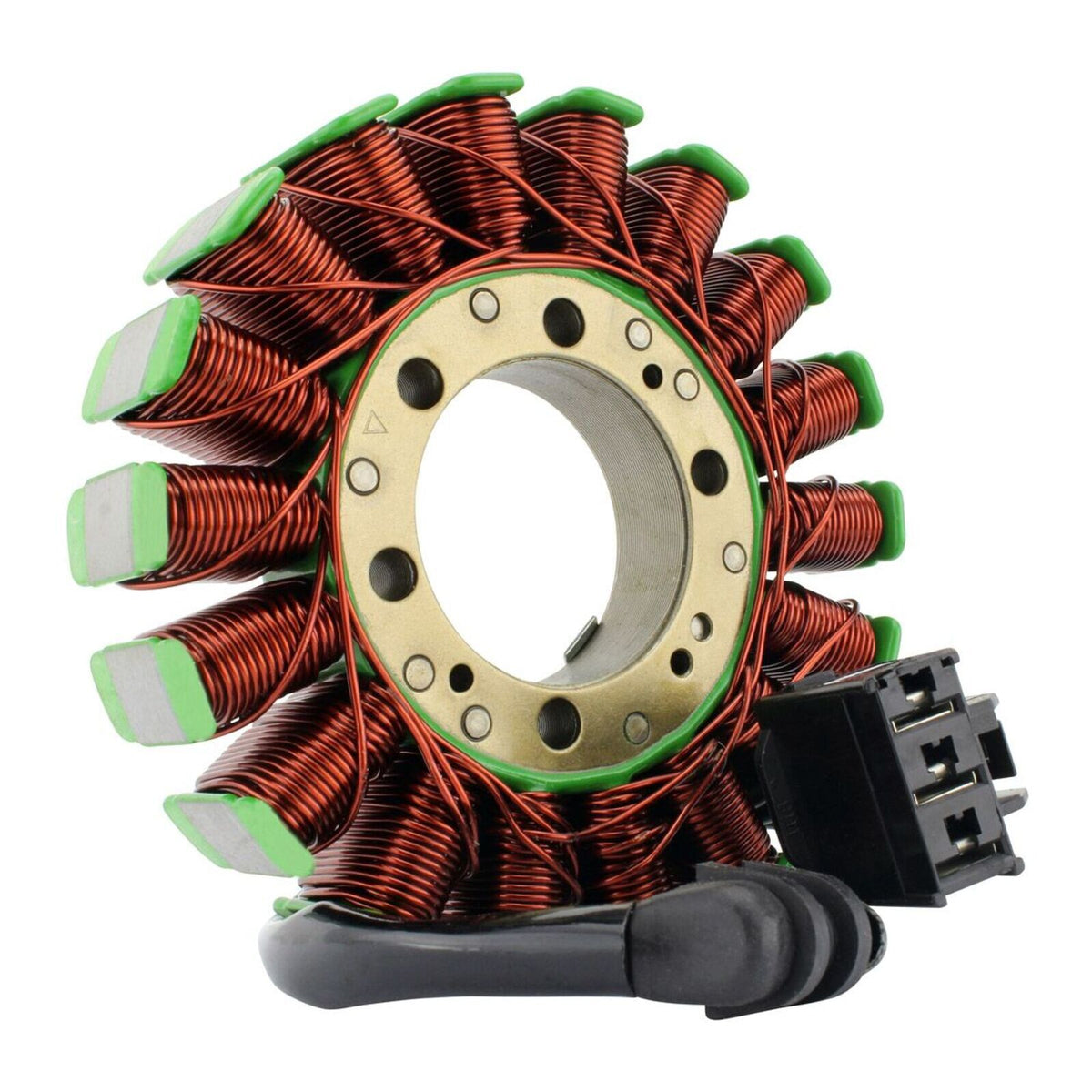

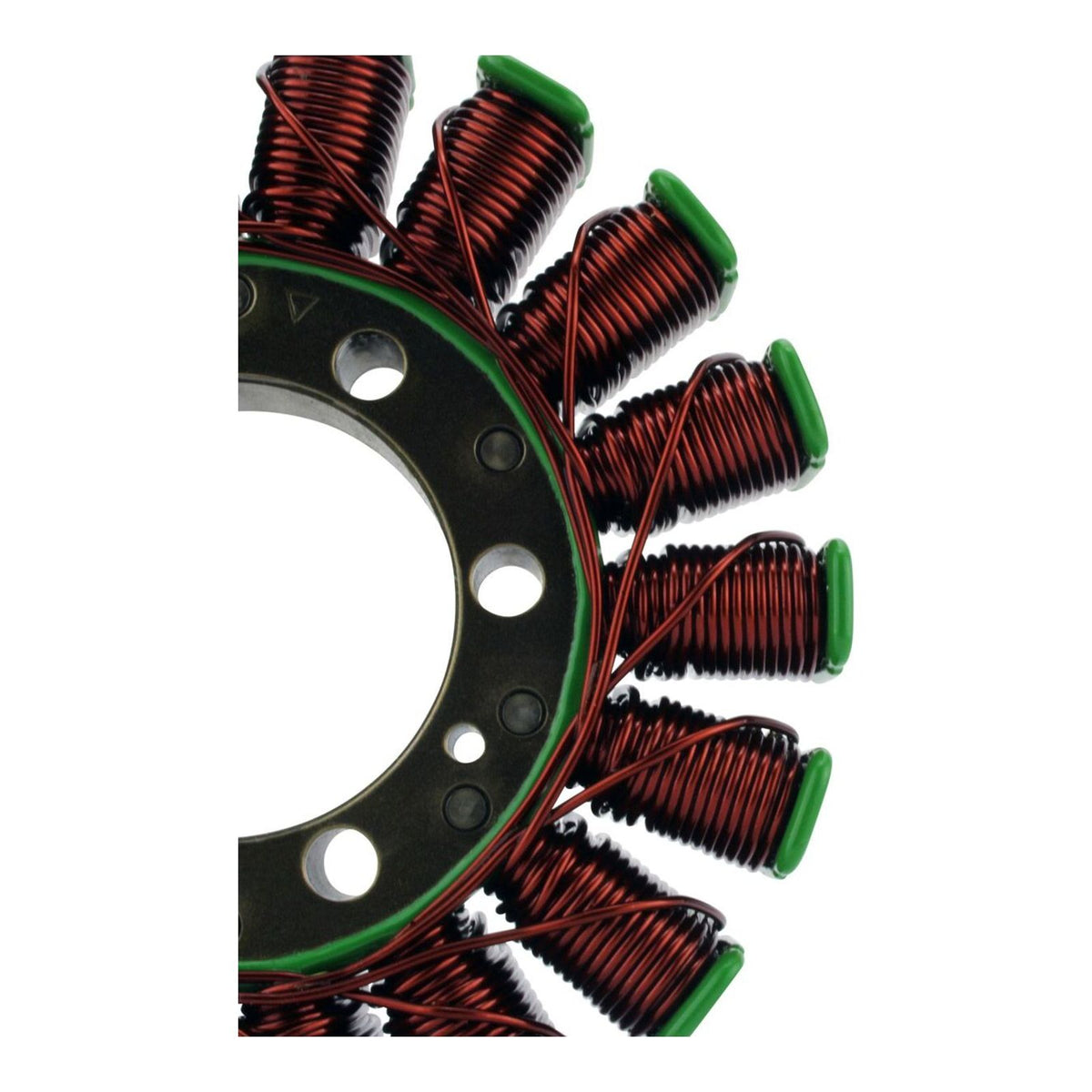

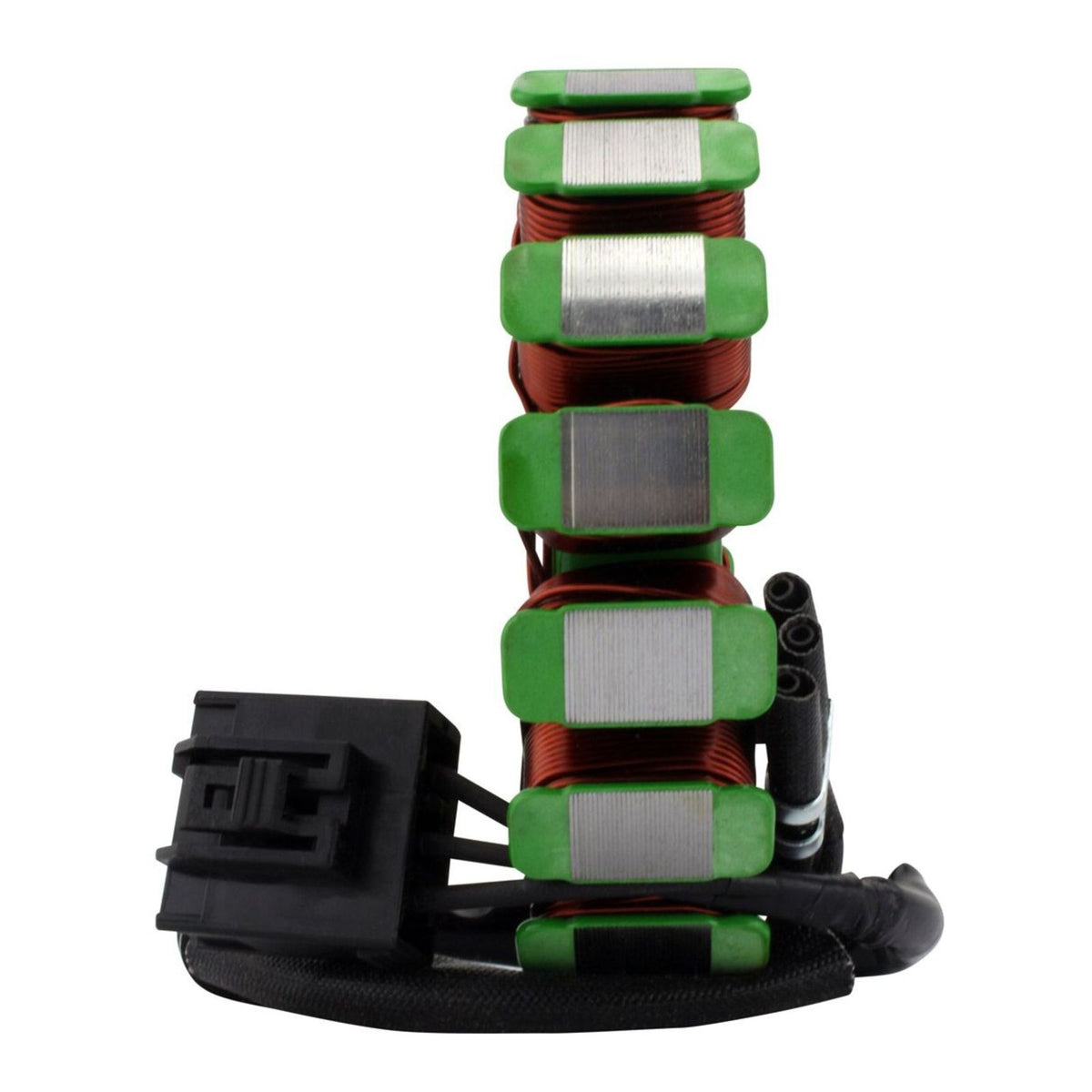

Stator:< /strong>

• Dimensions:
  • Interior diameter: 42 mm
  • Exterior diameter: 115 mm
  • Thickness: 18 mm

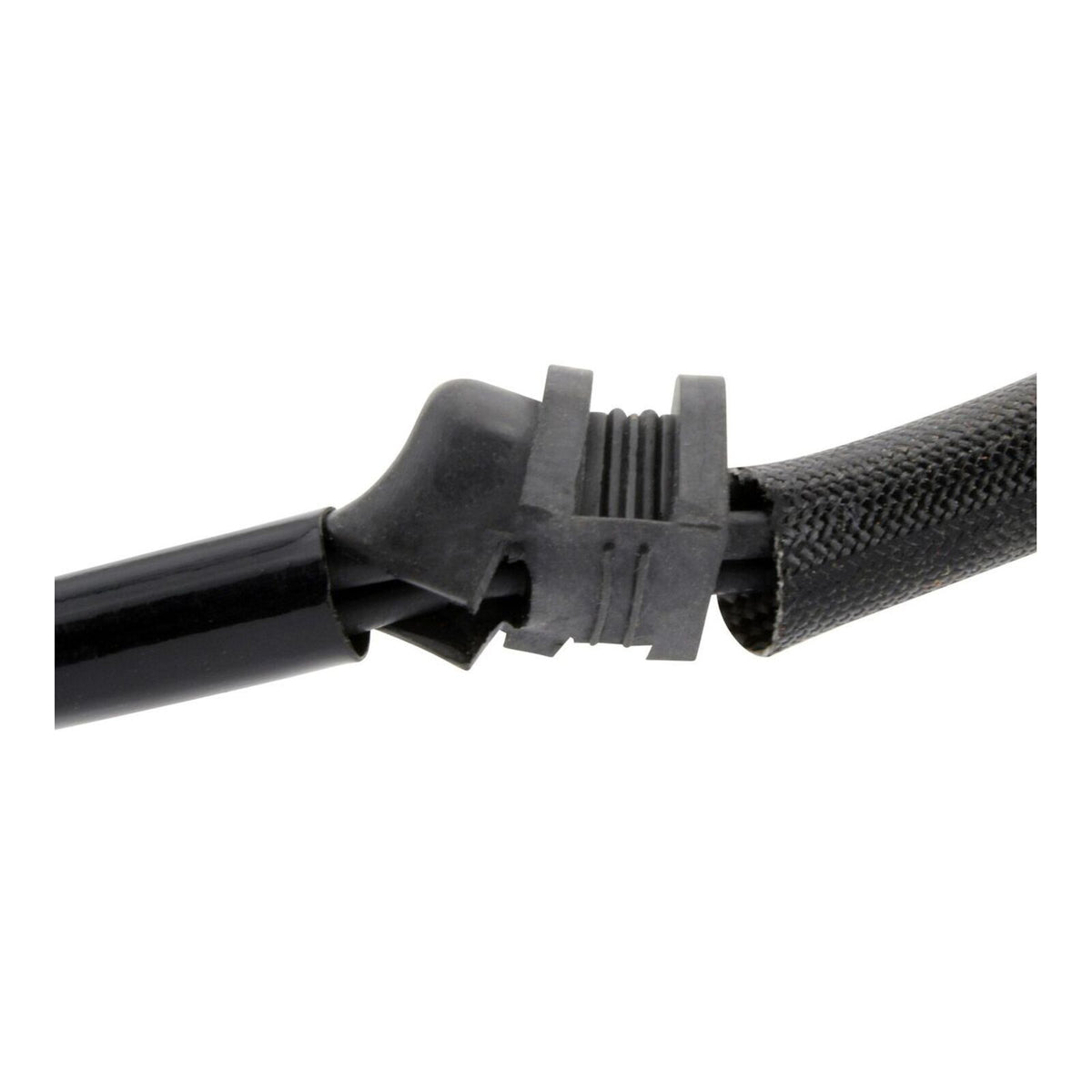

  • Length of wires stator to grommet: 100 mm
  • Length of wires grommet to plug: 200 mm
• Other specifications:
  • Number of wires: 3

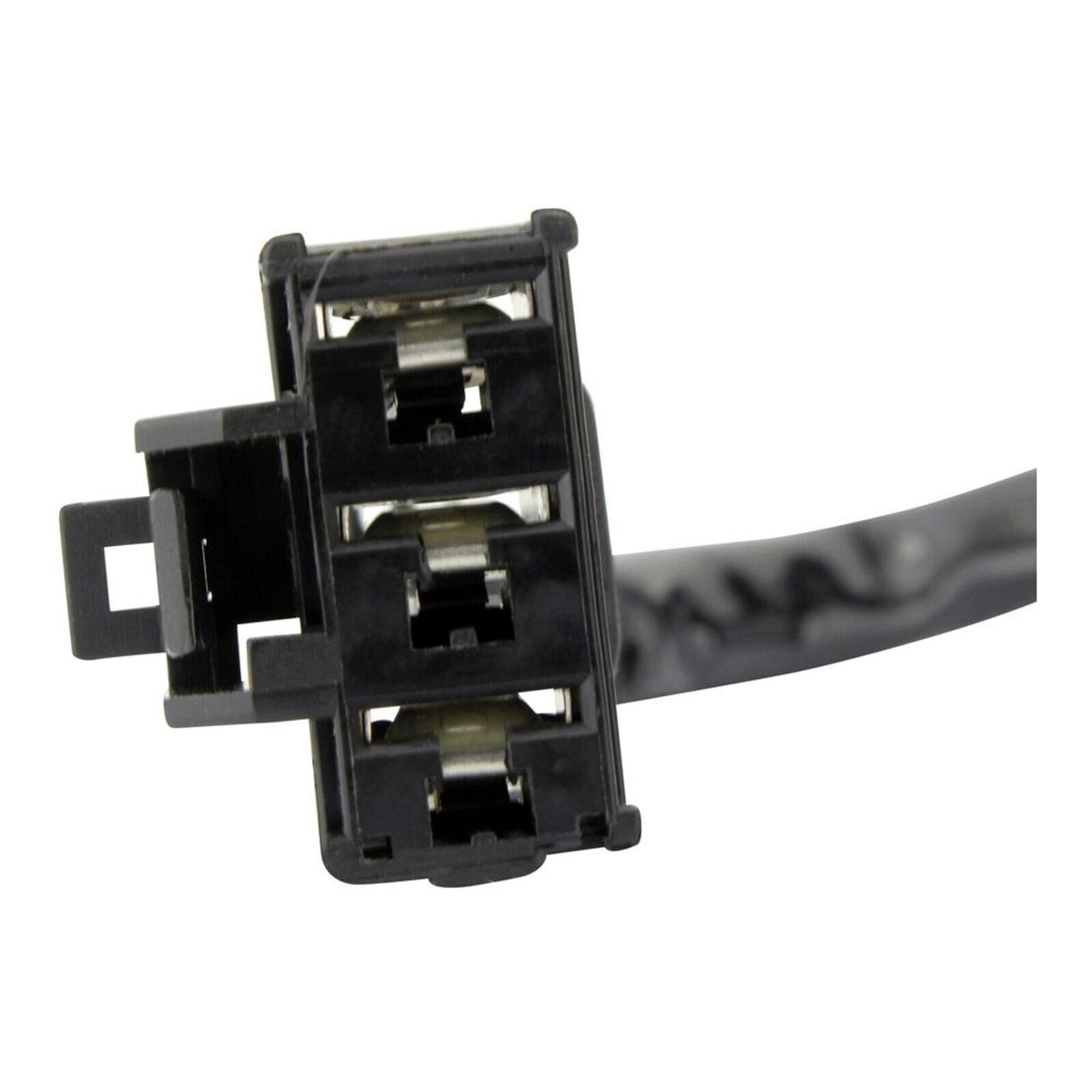

  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Black to Black = 0.6 ohms +-20%
    • Alternator to ground = O.L

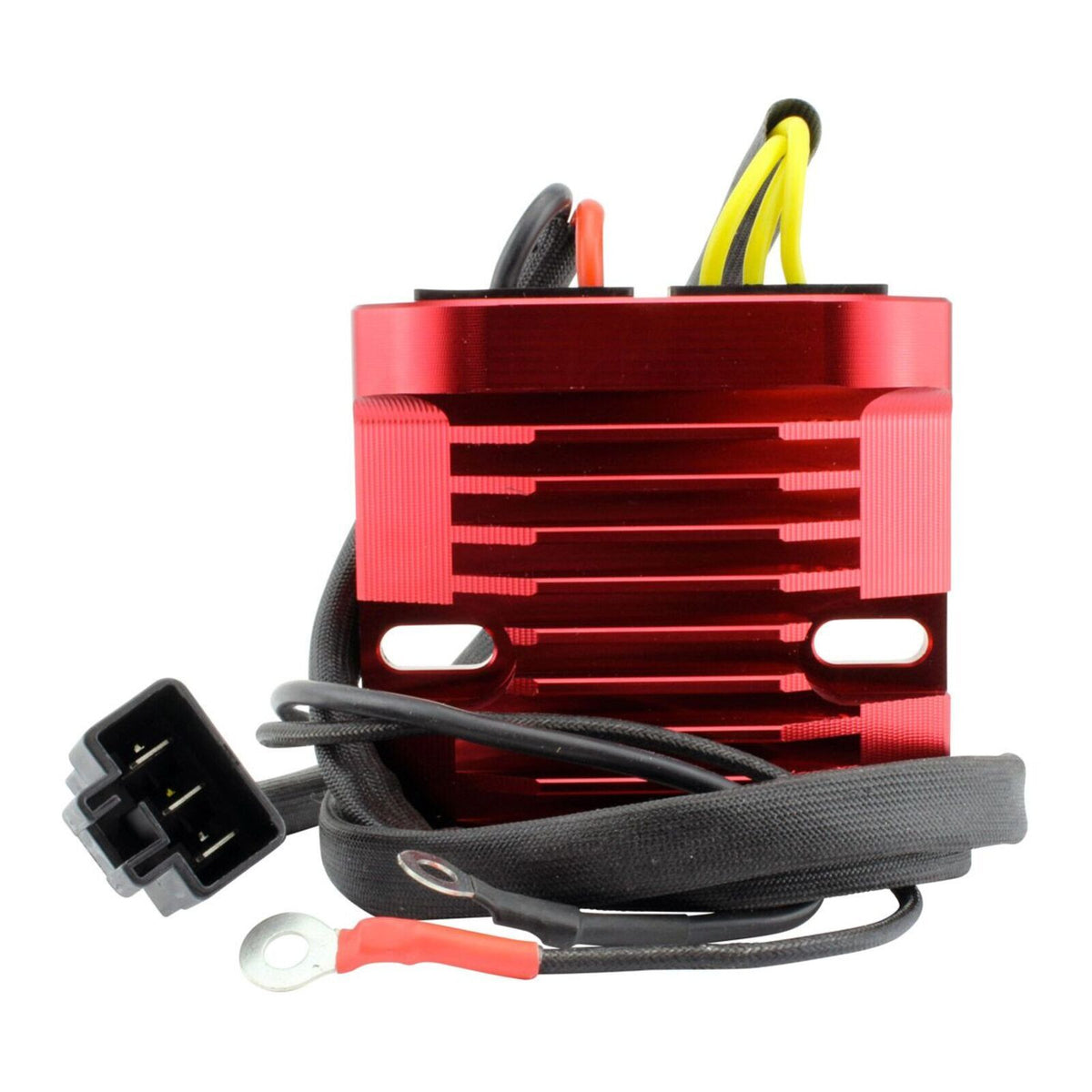

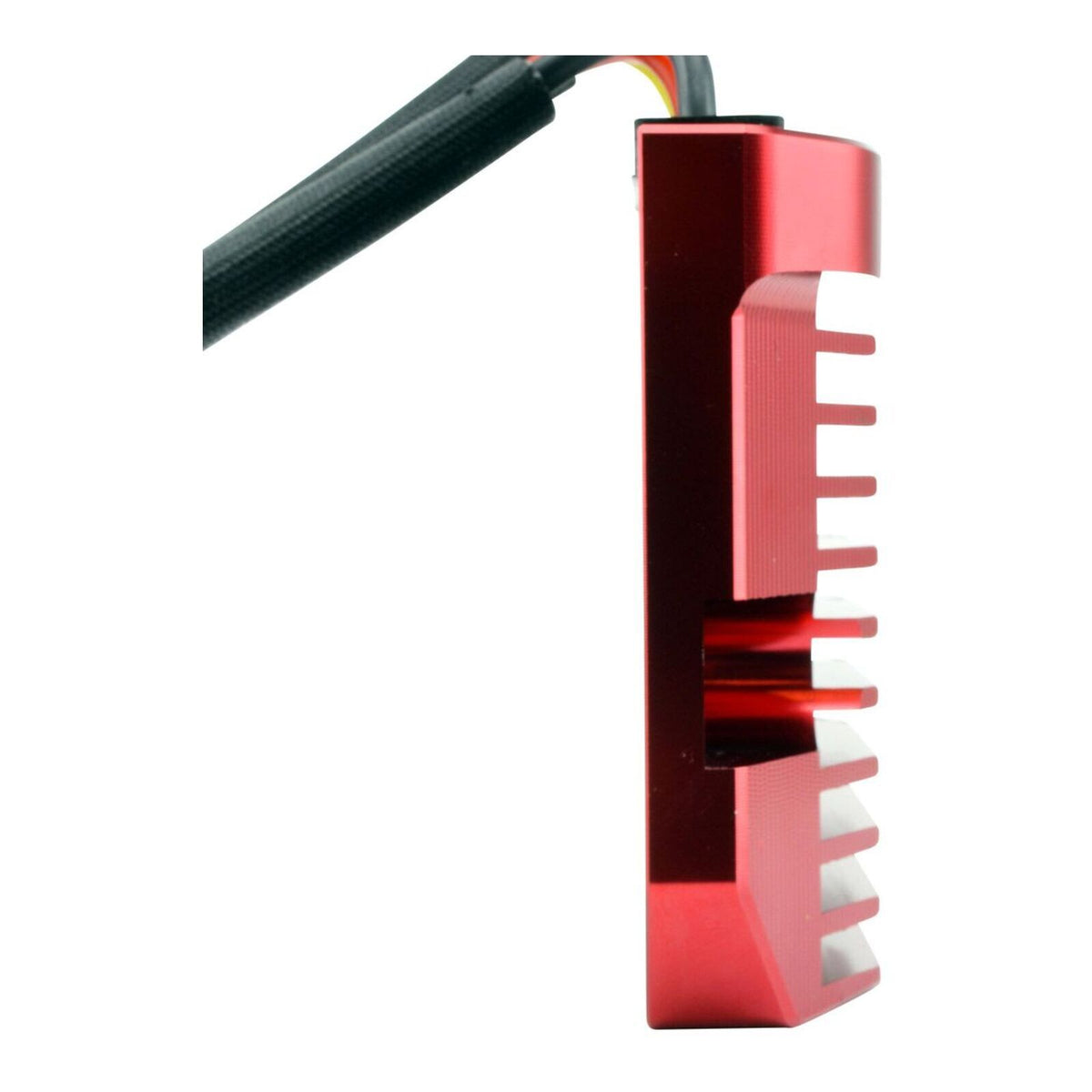

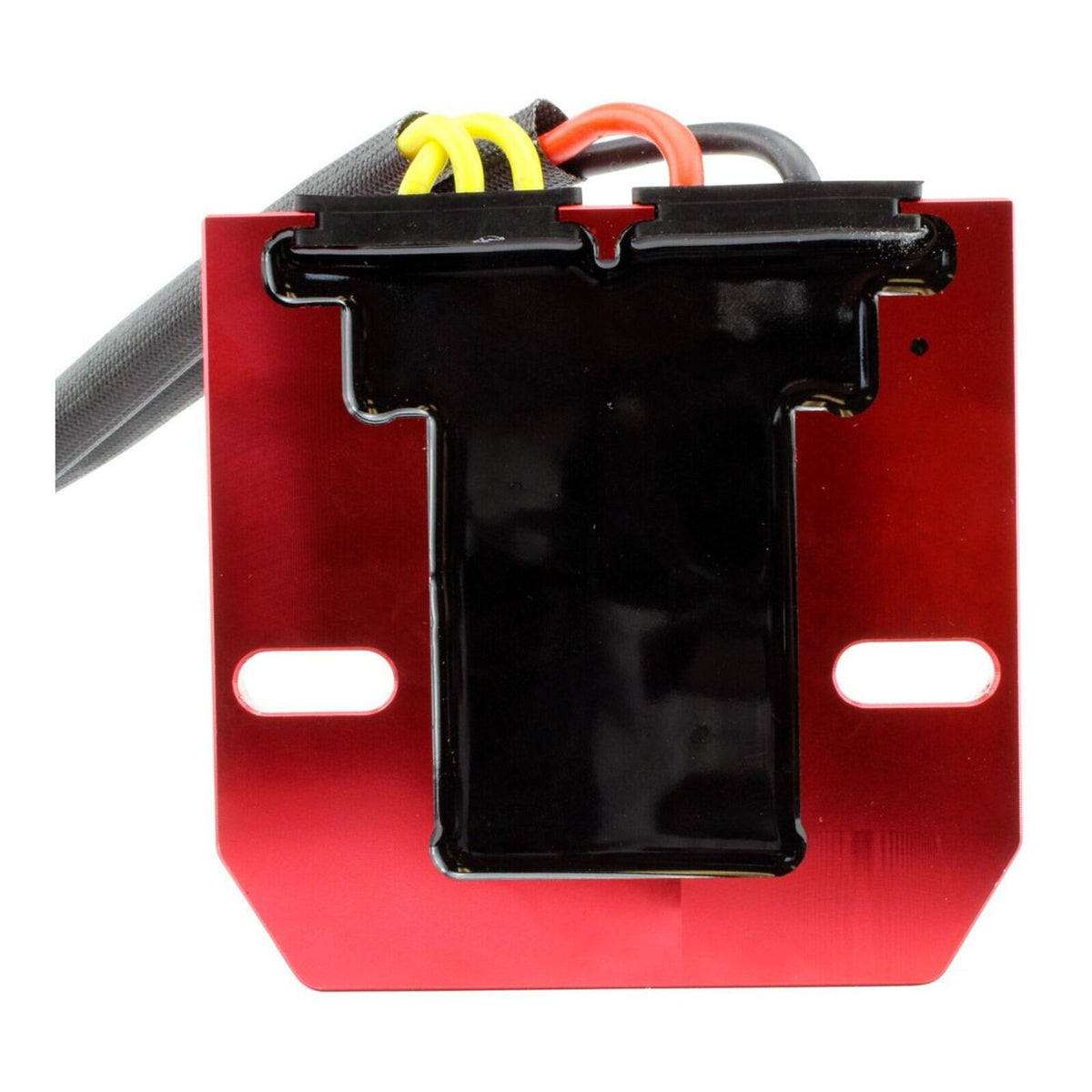

RMSTATOR Red Machined Aluminum Mosfet Voltage Regulator Rectifier:

• Dimensions:
  • Width: 95 mm
  • Length: 90 mm
  • Height: 30 mm
  • Wires length: 1010 mm & 350 mm
  • Fixation holes center to center: 75 mm
• Other specifications:

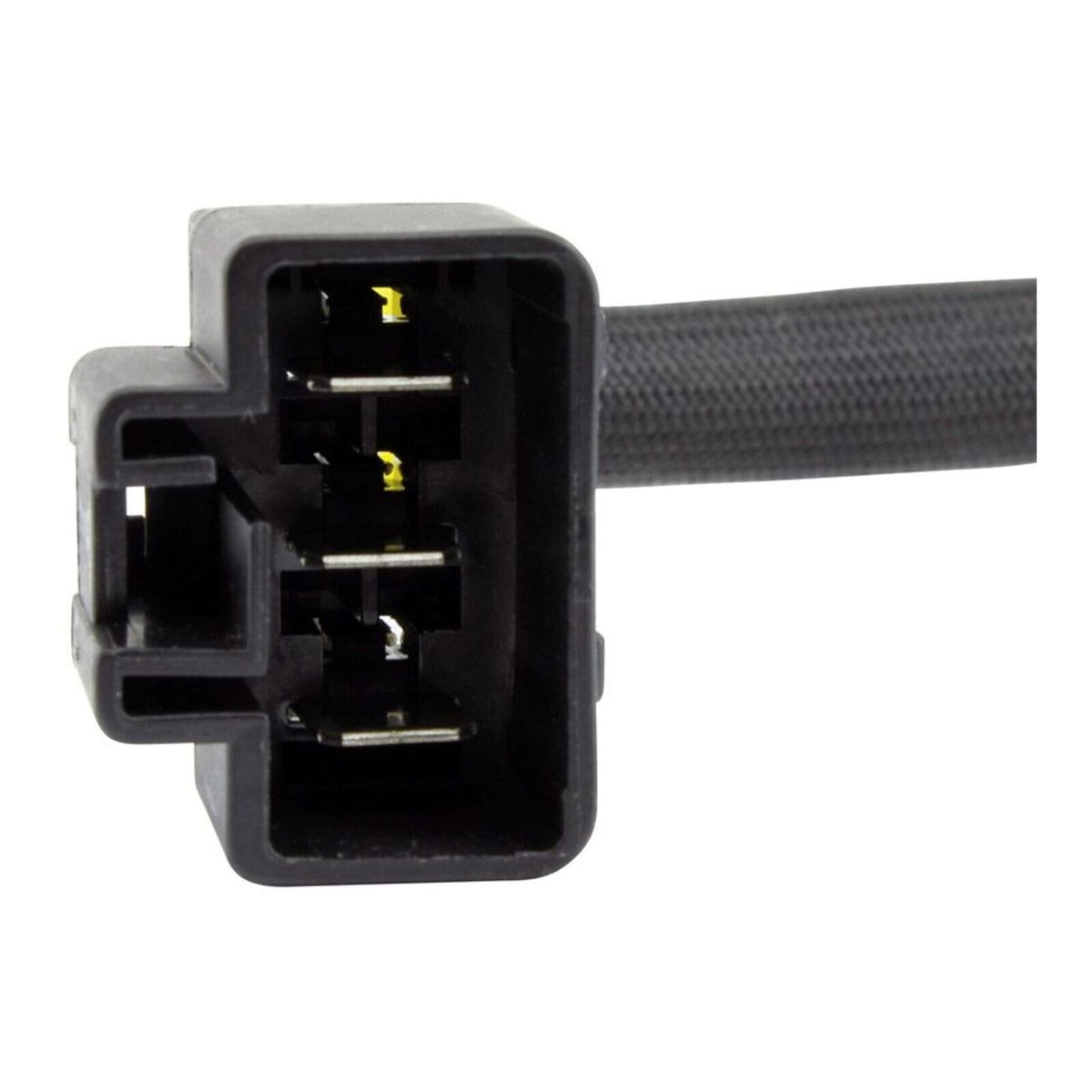

  • Number of plugs: 2
  • Number of pins: 5
  • Number of wires: 5
  • Minimum Charging Voltage: 14.5 V +/- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20° to 85°
